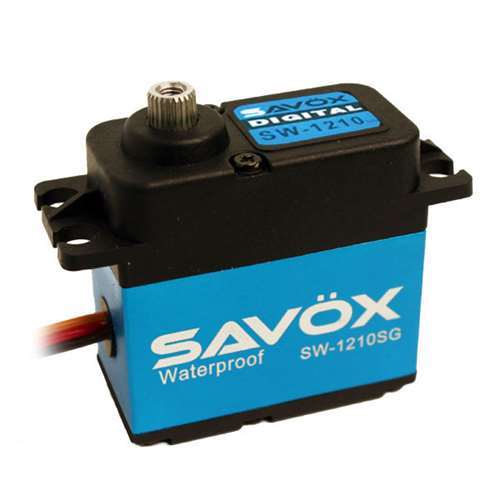

The SW-1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.


Features:

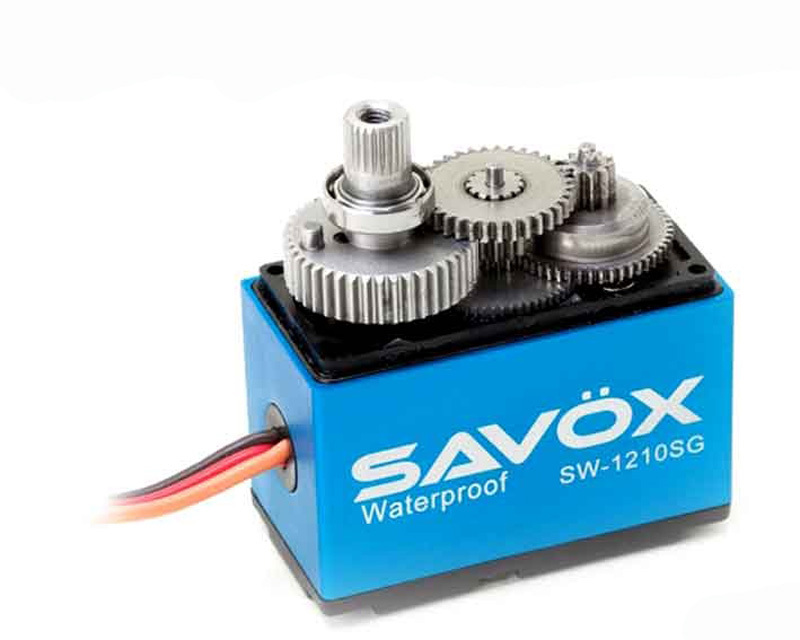

• Strong unique steel gears provide durability and assurance.
• Capable of HV operation.
• Waterproof construction for harsh elements.
• Ideal for cars, truck, and boats subject to water or snow.

Specifications:

• Torque @ 6v - 20.0kg/277.7oz-in
• Torque @ 7.4v - 23.0kg/319.4oz-in
• Speed @ 6v - 0.15 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
• Weight: 71.0g

Technical

Dimensions(mm): 40.6x20.7x42.0
Weight(g): 71
Speed(@4.8V sec/60): .18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 277.7
Gear: Unique Steel
Bearing: 2BB
Case: Aluminum
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: ＃22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130°(when900→2100 μsec)
