Features

  • Multiple input modes
  • 2.4-inch IPS colour screen
  • Charge 4 different types of batteries independently and simultaneously
  • Multiple intelligent protections for safe charging

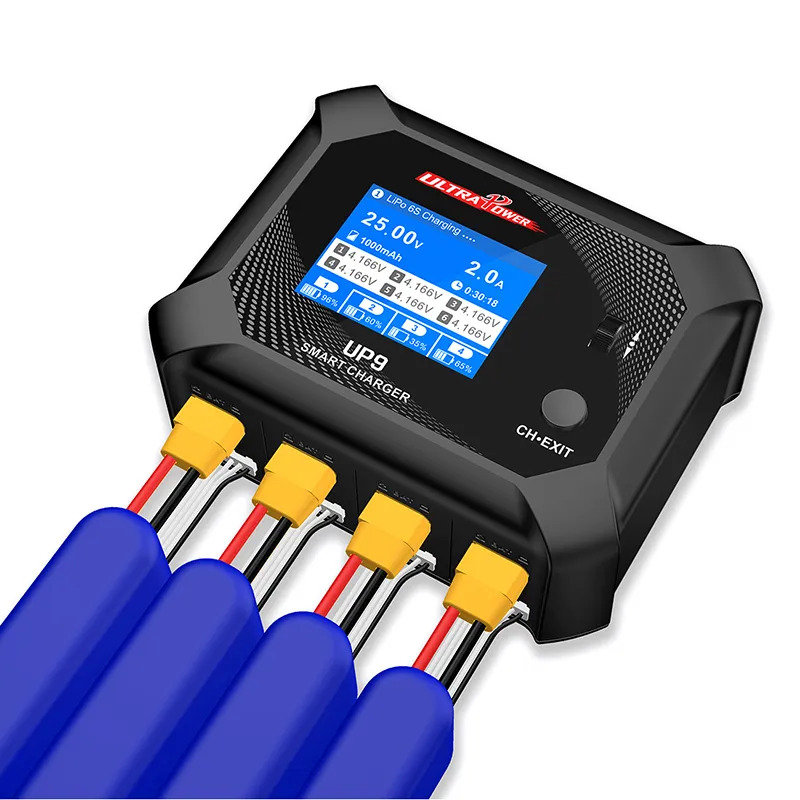

The Ultra Power UP9 Charger has intelligent features for safe and efficient charging. The maximum power can reach 100W in AC mode and 200W in DC mode. It features a 32-bit ARM chip, high-accuracy charging management, and balance precision within 0.005V, which will protect your battery automatically under various accident circumstances. To ensure safe charging, the UP9 has multiple intelligent protections, including:

  • Over-current protection

  • Over-voltage protection

  • Reverse connect protection

  • Short-circuit protection

  • Thermal protection

  • Flame retardant material

  • Multiple languages

Higher efficiency

Four intelligent balanced charging ports, which easily handle multiple batteries, and independent outputs, do not influence each other. Four different types of batteries can be charged simultaneously, including LiPo, LiHV (support 4.45V battery), LiIon, LiFe, NiMH, NiCd and Lead Acid.

One-key charge four channels simultaneously

The high-definition IPS colourful screen shows comprehensive real-time data including the battery status.



Specs

Input Voltage AC: 100 - 240V, DC: 11.0 - 18.0V
Output Voltage 0.1 - 26.1V
Charging Current 0.1 - 5.0A x 4
Charge Power DC Input: 4x50W, AC Input: Max. CH1+CH2+CH3+CH4 = 100W, Support power distribution (2 x 50W or 4 x 25W)
Balance Current Max: 300mA / cell
Discharge Power 4 x 10W
Support Battery Types
LiPo / LiHV / LiFe / LiIon (1 - 6S)
NiMH / NiCd (1 - 16S)
Pb (Lead Acid) 2 - 24V (1 - 12S)
LCD Screen Type
320 x 240 (2.4-inch) IPS LCD
Dimensions
135 x 105 x 58 mm
Weight
550 g
SKU UP9
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.120m
Shipping Cubic 0.000960000m3
