Rugged Innovation

The X-Maxx LED Light Kit is the only light kit worthy of the X-Maxx name. Built to handle brutal real-world punishment, this light kit is waterproof and built Traxxas Tough™ for maximum fun. Blaze a path through the night with this intense-white high-output LED light kit.

Traxxas innovation delivers features and performance not found on any other lighting system. The included high voltage amplifier packs the muscle to efficiently power both high-power light bars in the kit while minimizing losses from excessive current and heat. The tightly regulated output provides stable lighting performance, without flickering or dimming as the battery voltage changes. In another Traxxas first, the smart brake lights work when brakes are applied in both forward and reverse directions. This eliminates the common and annoying problem with generic aftermarket systems that turn on the brake lights while reversing.

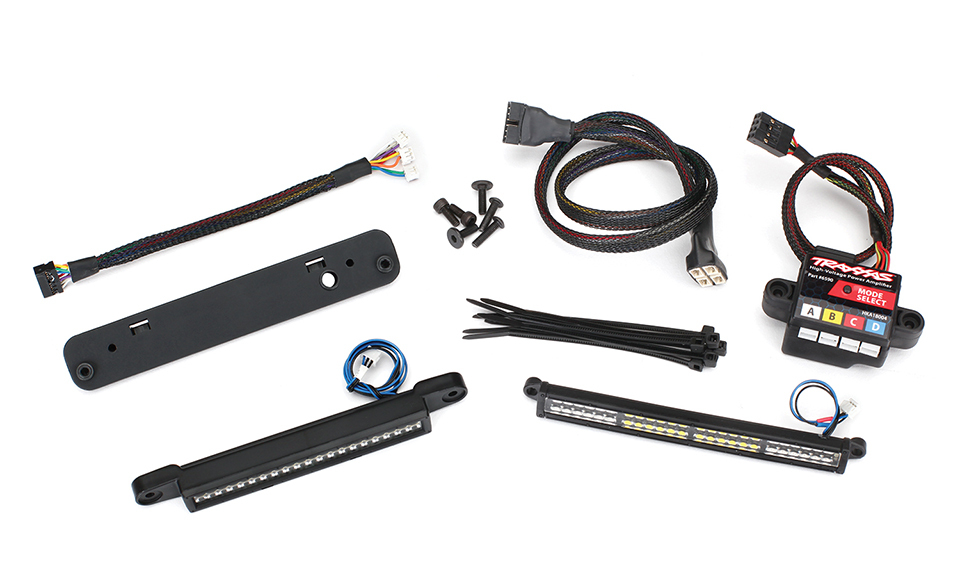

X-MAXX LED LIGHT KIT (#7885) INCLUDES:
­

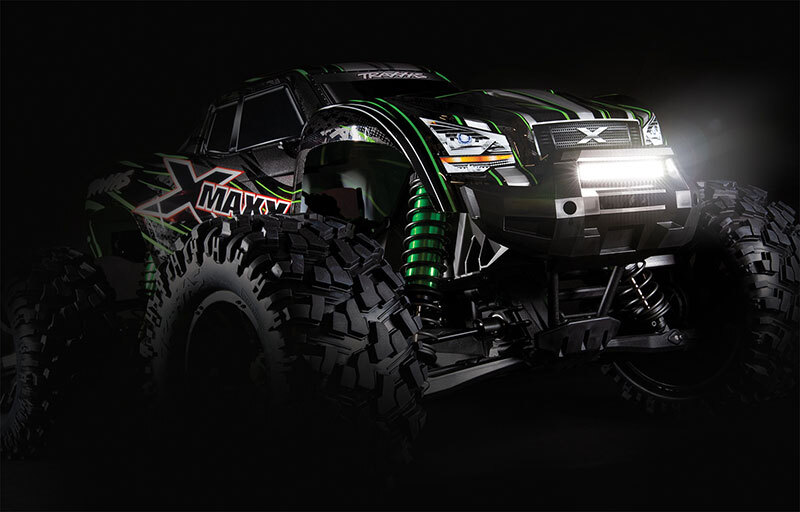

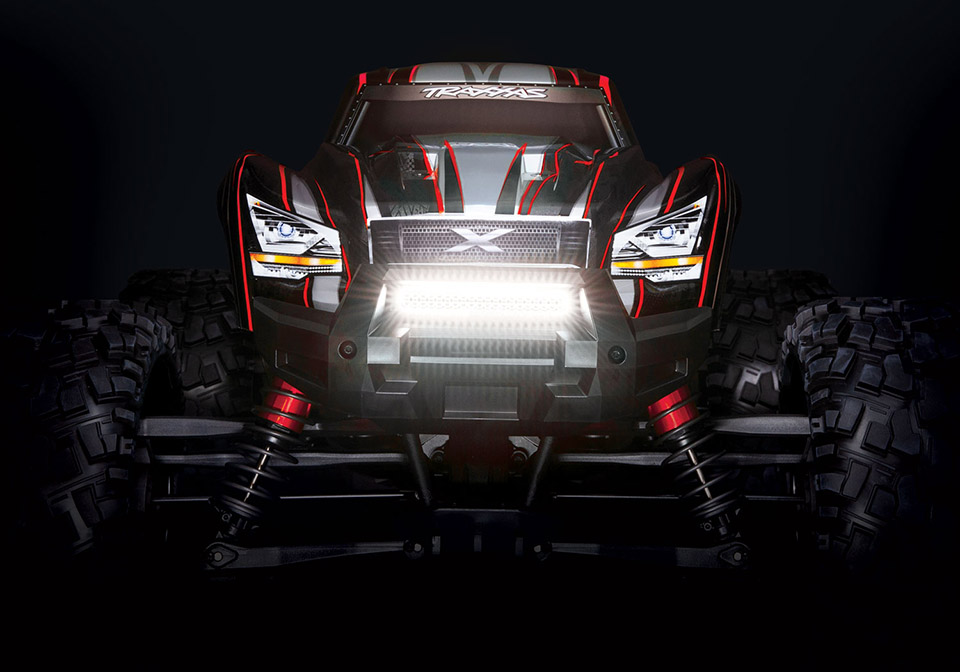

  • High-output bumper mounted LED light bar
  • Multi-function rear LED light bar
  • High-voltage 8-channel power amplifier for intense, brilliant LED lighting
  • Regulated output for stable lighting performance
    (no flickering or dimming as the battery voltage changes)
  • Breakaway cable helps to prevent damage when removing body
  • Light bar mounts and wiring connectors

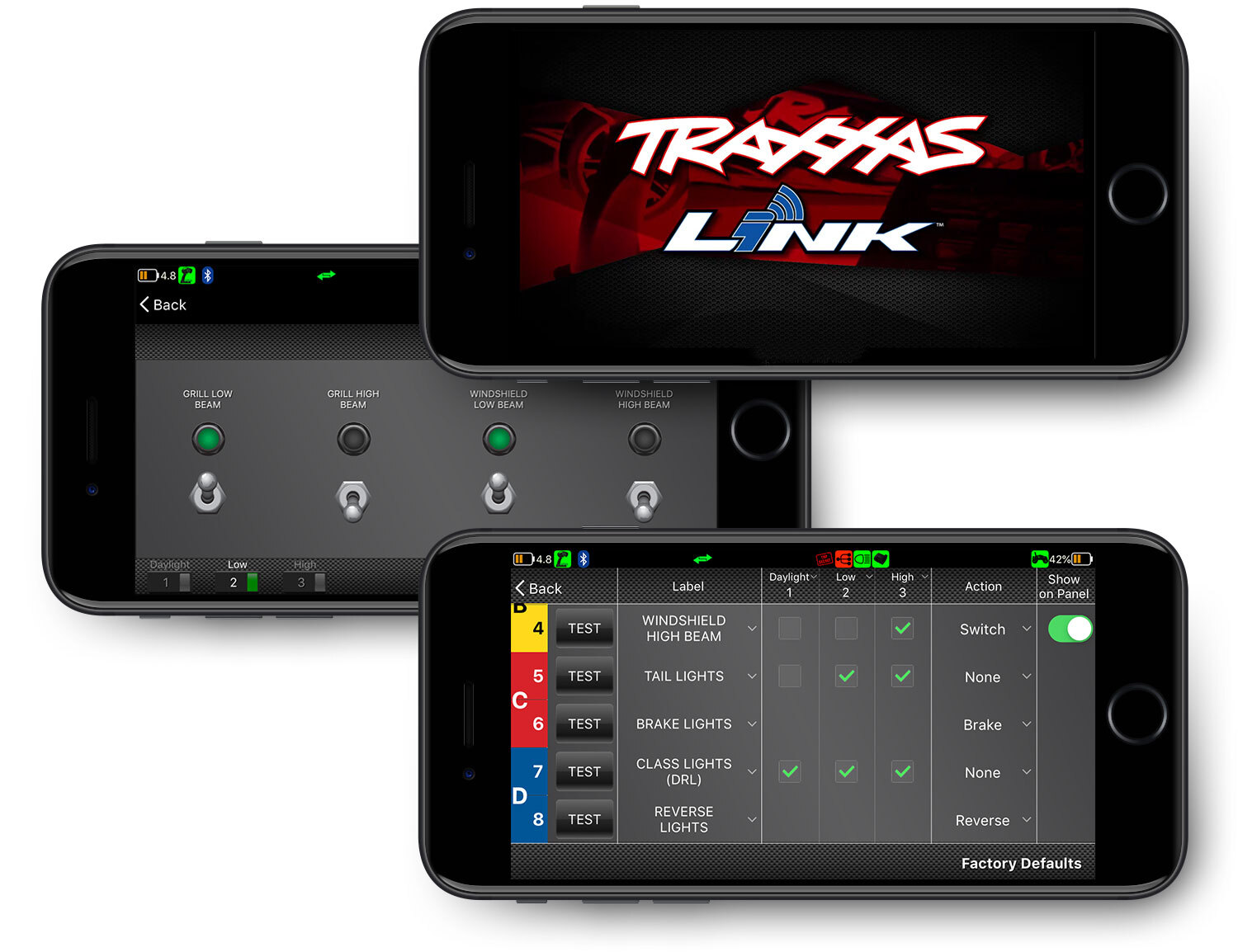

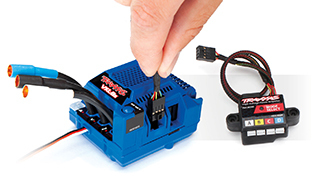

Wiring is simple: Plug the main connector from the power amplifier into the power port on the Traxxas VXL-8s Electronic Speed Control, and then plug the individual lighting modules into the power amplifier. Switch between three manual lighting modes on the power amplifier (such as high beam and low beam), or use the Traxxas Link app and Wireless Module (#6511*) to control individual lights remotely and create custom lighting configurations. Of course, since it’s from Traxxas, this powerful, feature-rich system is rugged and fully waterproof for all of your exciting RC adventures.

High-Voltage Power
Rather than draw valuable power away from the BEC, the power amplifier uses the Power Port on the VXL-8s ESC to tap power directly from the batteries. The power amplifier transforms and regulates battery current to for reliable high-power performance.
QUICK FEATURES ON X-MAXX LED LIGHT KIT (#7885)
­
  • Compatible with Velineon VXL-8s ESC #3496

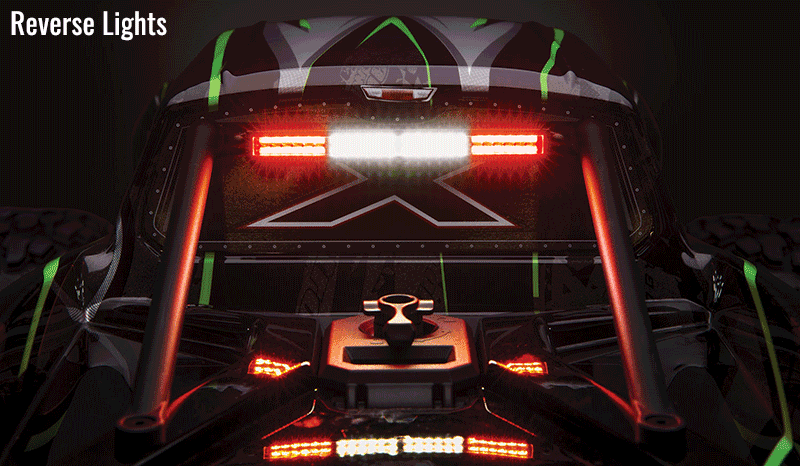

  • A Traxxas first! Fully functioning brake lights that work
    in both forward and reverse direction
  • Fully waterproof
  • Three default lighting modes controlled from the power amplifier
  • Low and high beam brightness settings
  • Easy to install with simplified, concealed, color-coded wiring
  • Expandable
  • Firmware updatable through the app
  • App-controlled lighting functions*
    • Turn lights on/off remotely
    • Build a custom dashboard
    • Customize lighting configurations and actions
    • Add additional lighting components


MODEL 7885: X-MAXX LED Light Kit

*Requires Traxxas Link App (available in the Apple App Store™ or on Google Play™)
and TQi transmitter with the Traxxas Link Wireless Module (part #6511, sold separately).
SKU 7885
Barcode # 0020334788504
Brand Traxxas
Shipping Weight 0.6000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.100m
Shipping Cubic 0.000480000m3
