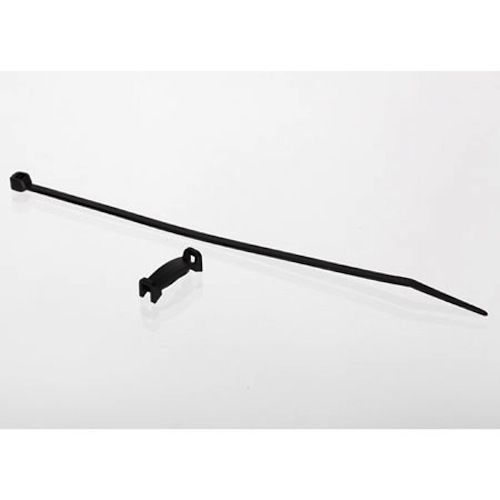

Traxxas 6535: Mount, temperature sensor (electric motors)/ wire tie/ thermal pad

Replacement part for these models:

• E-Maxx Brushless
• E-Revo Brushless
• Slash 4X4 Ultimate
• Hoss™ 4X4 VXL

Accessory part for these models:

• 4-Tec 2.0 AWD Chassis
• 4-Tec 2.0 VXL AWD Chassis
• E-Revo Brushless
• E-Revo VXL Brushless
• Ford GT®
• Ford Mustang GT
• Rustler 4X4 VXL
• Unlimited Desert Racer
• 1/16 E-Revo VXL
• 1/16 E-Revo
• 1/16 Slash 4WD
• 1/16 Summit VXL
• 1/16 Summit
• Bandit VXL
• Bandit
• Bigfoot® No. 1 Officially Licensed Replica
• Bigfoot® Officially Licensed Replica
• Craniac®
• DCB M41 Widebody
• E-Maxx Brushless
• E-Maxx
• E-Revo
• Ford F-150 Raptor
• Ford Fiesta® ST Rally
• Ford Raptor
• Funny Car
• Rally VXL
• Rustler 4X4
• Rustler VXL
• Rustler
• Skully
• Slash 4X4 Platinum
• Slash 4X4 VXL
• Slash 4X4
• Slash VXL
• Slash
• Spartan
• Stampede 4X4 Unassembled Kit
• Stampede 4x4 VXL
• Stampede 4x4
• Stampede VXL
• Stampede
• Summit
• Telluride 4x4
• TRX-4® 1979 Chevrolet Blazer
• TRX-4® Ford Bronco
• TRX-4® Mercedes-Benz® G 500® 4X4²
• TRX-4® Scale and Trail™ Crawler
• TRX-4® Sport Unassembled Kit
• TRX-4® Sport
• TRX-4® Tactical Unit
• TRX-4® Unassembled Kit
• TRX-4® with All-Terrain Traxx™
• TRX-6™ Mercedes-Benz® G 63® AMG 6X6
• XO-1

Vehicle models vary! .. We DO NOT guarantee this will fit the vehicle specified in this listing!!

Verify that this item is appropriate for your vehicle.  Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase.

Tools Needed:

• 2.0mm hex wrench
• 3.0mm hex wrench

Required:

• Temp Sensor 6521
• Wire Clamp 6535

Installation Steps:
1. Remove motor mount screw (using 3.0mm hex
wrench) and remove the motor by sliding rearward off
of the motor mount (A).
2. Remove wire cover and upper receiver box cover (B).
3. Route temp sensor through cover and plug the grey
connector into V/T slot on receiver (C). The red
connector will only be used if your vehicle is equipped
with a voltage sensor. If not used, coil the wire and
place beside the receiver unplugged.
4. Reinstall wire cover and upper receiver box cover (add
grease to foam pads on receiver box to ensure
watertight seal).
5. Route sensor under motor. Reinstall motor by securing
with motor mount screw. Refer to instruction manual
for proper gear mesh procedure.
6. Insert temp wire sensor into plastic bracket (included)
(D). Peal backing off of thermal pad and place on
plastic bracket (E).
7. Secure temp sensor to motor with tie wrap (F).
