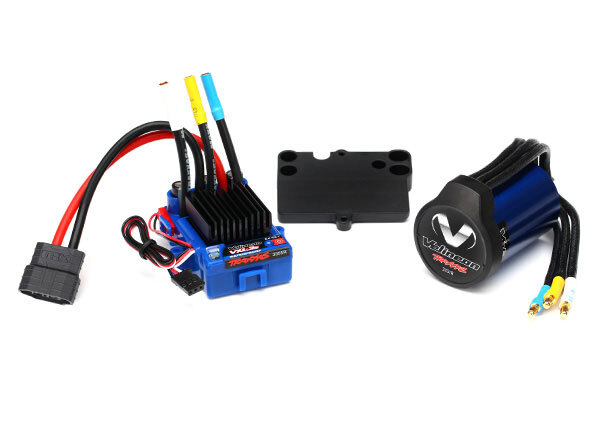

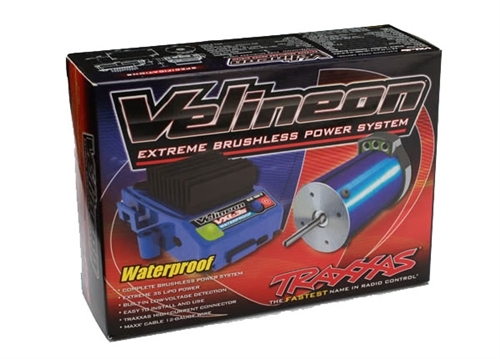

Traxxas 3350R: Velineon VXL-3s Waterproof 3500 Brushless Motor & ESC Power System

The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

Velineon VXL-3s ESC

• Auto-detects and compatible with brushed, brushless and sensored brushless motors
• Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs - two stage low voltage detection for LiPos
• Three driver profiles-Sport, Race and Training Modes
• Gold-plated motor connectors
• Built-in output for optional auxiliary cooling fan (TRA3340)

Velineon 3500 Brushless Motor

• 10-turn 3500kV
• Optimized for extreme power and efficiency in 1/10 scale vehicles
• Ultra high temp neodymium magnets, high-speed ball bearings
• Precision balanced rotor

Traxxas High-Current Connector

• Reverse polarity protection makes backward connections impossible
• Compatible with high-current 12-gauge wire
• Gold-plated wide surface terminals
• Textured surface for easy gripping

Requires

• NiCd, NiMH (4-8 cells) or 2-3 cell LiPo battery with Traxxas connector

Velineon VXL-3s ESC Specifications

• Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
• Supported motors: Brushed/Brushless/Sensorless brushless
• Motor Limit: None
• Continuous current: 200A
• Peak current forward & reverse: 320A
• Braking Current: 320A
• BEC voltage 6.0V DC
• BEC current: 2.5A w/6-cell NiMH
• Transistor type: MOSFET
• On-resistance: 0.00075 ohms Max (0.006/8 FETs)
• PWM frequency: 12,000Hz
• Battery connectors: Traxxas High-Current Connector
• Motor connectors: TRX 3.5mm bullet connectors
• Motor/battery wiring: 12-gauge Maxx Cable
• Input Harness Wire: 26 gauge, 3.9" (100mm)in length
• Low voltage detection: 2-Stage indicators, switchable (on or off)
• Thermal protection: 2-stage thermal shutdown
• Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
• Weight: 3.17oz (90g)

Velineon 3500 Brushless Motor Specifications

• Type: Sensorless brushless
• RPM/volt: 3500 (10-turn)
• Magnet type: Ultra High-Temperature, sintered neodymium
• Connection type: TRX 3.5mm bullet connectors
• Wire Size: 12-gauge Maxx Cable w/solder tabs
• Current Ratings: 65A constant; 100A peak/burst
• Max RPM: 50,000
• Diameter: 1.42" (36mm) (540 size)
• Length: 2.165"(55mm)
• Weight: 8.75oz (248g)

Replacement part for these models:

• 4-Tec 2.0 VXL AWD Chassis
• Bandit VXL
• Rally VXL
• Rustler 4X4 VXL
• Rustler VXL
• Slash 4X4 Platinum
• Slash 4X4 Ultimate
• Slash 4X4 VXL
• Slash 4X4
• Slash VXL
• Stampede 4x4 VXL
• Stampede VXL

Accessory part for these models:

• Bandit
• 4-Tec 2.0 AWD Chassis
• Bigfoot® No. 1 Officially Licensed Replica
• Bigfoot® Officially Licensed Replica
• Craniac®
• Ford F-150 Raptor
• Ford Fiesta® ST Rally
• Ford GT®
• Ford Mustang GT
• Ford Raptor
• Rustler 4X4
• Rustler
• Skully
• Slash 4X4
• Slash
• Stampede 4X4 Unassembled Kit
• Stampede 4X4
• Stampede

Vehicle models vary! .. We DO NOT guarantee this will fit the vehicle specified in this listing!!

Verify that this item is appropriate for your vehicle.  Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase.
