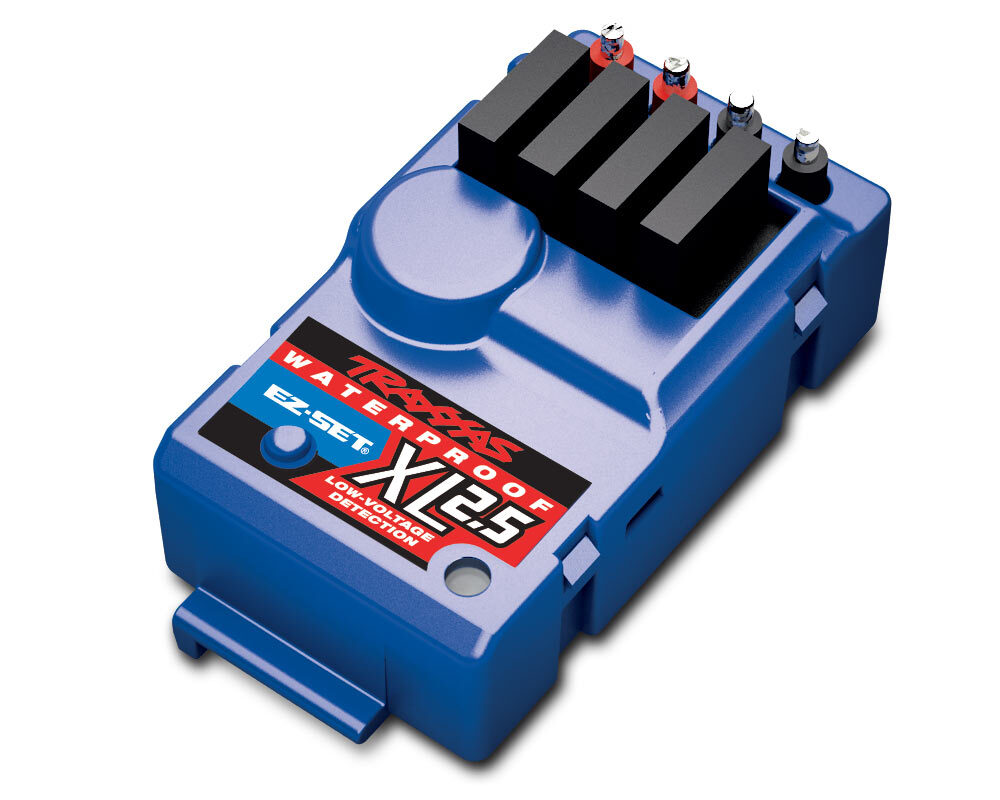

XL-2.5™ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)
Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control in 1/16 scale and smaller models, and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. XL-2.5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-2.5 is backed by the Traxxas Lifetime Electronics Warranty.

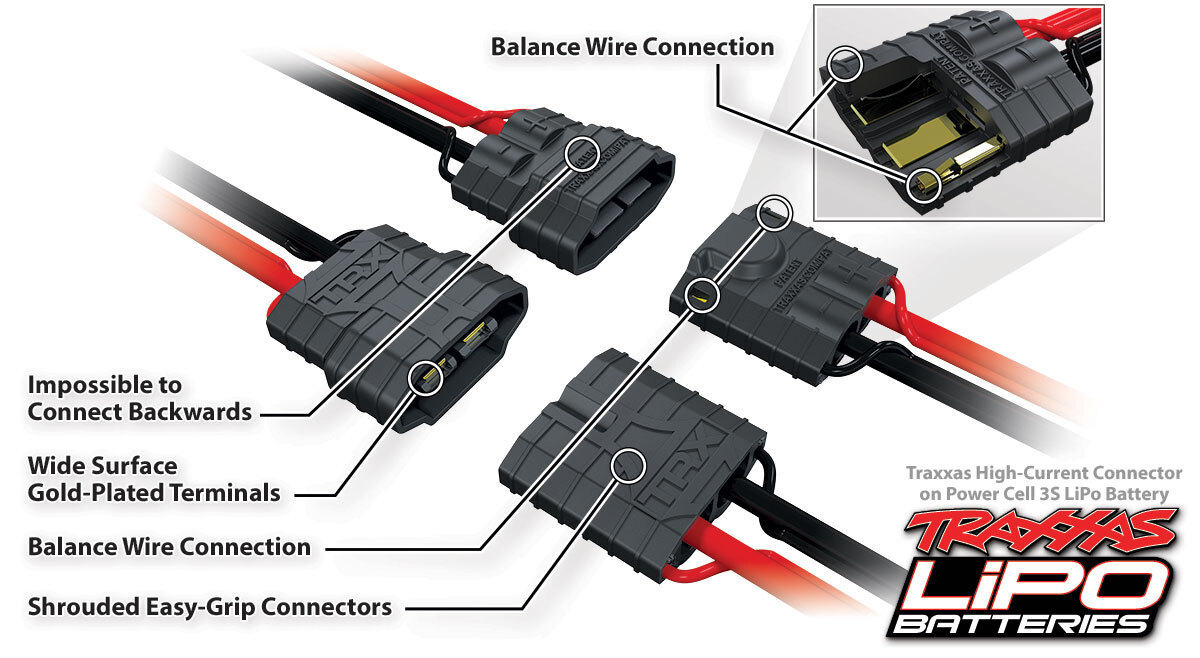

Traxxas High-Current Connector*
The XL-2.5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.


Patented Training Mode™
An exclusive feature that places the XL-2.5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-2.5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

XL-2.5 LVD Waterproof ESC Features

  • Built-in two-stage low voltage detection (LVD)
    for Lithium Polymer (LiPo) battery use
  • Innovative waterproof design
  • 12-turn motor limit for 550 size motors
  • 10-turn motor limit for 380 size motors
  • Fully-proportional forward, reverse, and braking control
  • Programmable with three drive profiles:
    • Sport Mode – Fwd / Brake / Rev
    • Race Mode – Fwd / Brake
    • Training Mode* – 50% Fwd / Brake / 50% Rev
  • EZ-Set® push-button setup
  • Multi-color LED
  • Thermal shutdown protection
  • Efficient, low-loss MOSFET design
  • High-capacity heat sink
  • Smooth, high-frequency operation
  • Easy installation in Traxxas models
  • Backed by the Traxxas Lifetime Electronics warranty
XL-2.5 LVD WATERPROOF ESC SPECIFICATIONS
Input Voltage:   4-7 Cells NiMH, 2-Cells LiPo (4.8V - 8.4V DC)
Case Size:   26.5mm W x 46.5mm D x 22mm H
Weight:   33 Grams
Motor Limit:   10-turns**
On Resistance (@Trans):   0.008 Ohms
Reverse Delay:   None
BEC Voltage:   6.0V DC
Power Wire:   16 Gauge / 40mm
Input Harness Wire:   26 Gauge / 130mm
Motor Wires:   26 Gauge / 130mm
Transistor Type:   MOSFET
PWM Frequency:   2300 Hz
Low-Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
Thermal Protection:   Thermal shutdown
Profile selection:   Sport Mode:
    100% FWD, 100% brakes, 100% REV
Race Mode:
    100% FWD, 100% brakes, no REV
Training Mode:*
    50% FWD, 100% brakes, 50% REV
Single-button setup:   Yes, Traxxas EZ-Set®

­ ­ **Properly geared *Patented




SKU 3024R
Barcode # 0020334302489
Brand Traxxas
Shipping Weight 0.1500kg
Shipping Width 0.090m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.001008000m3
