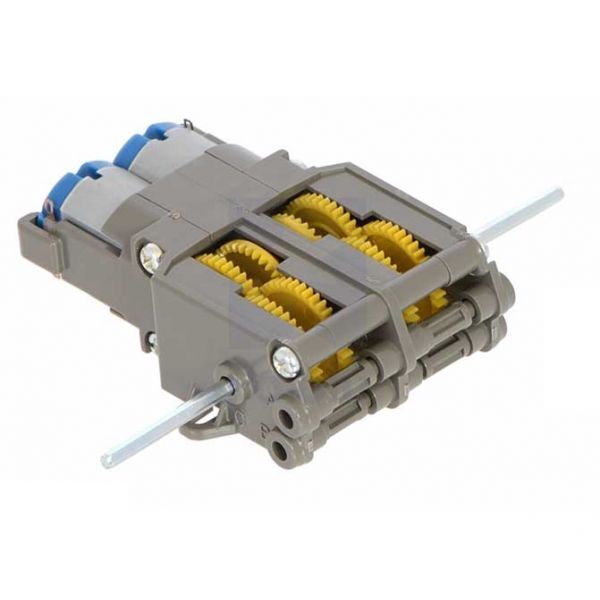

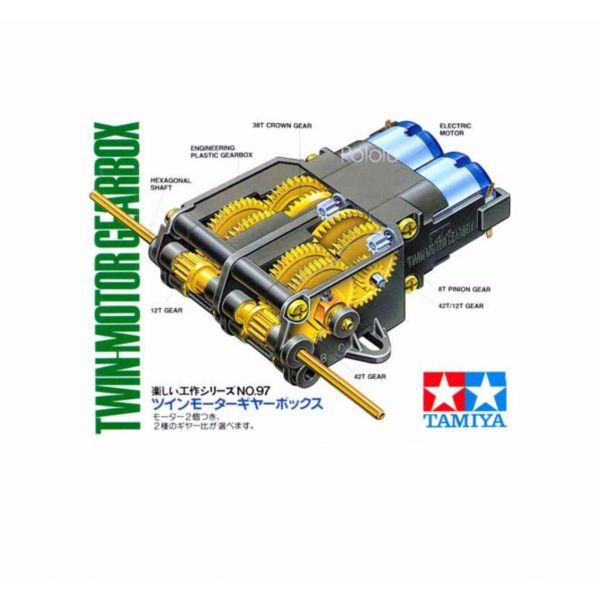

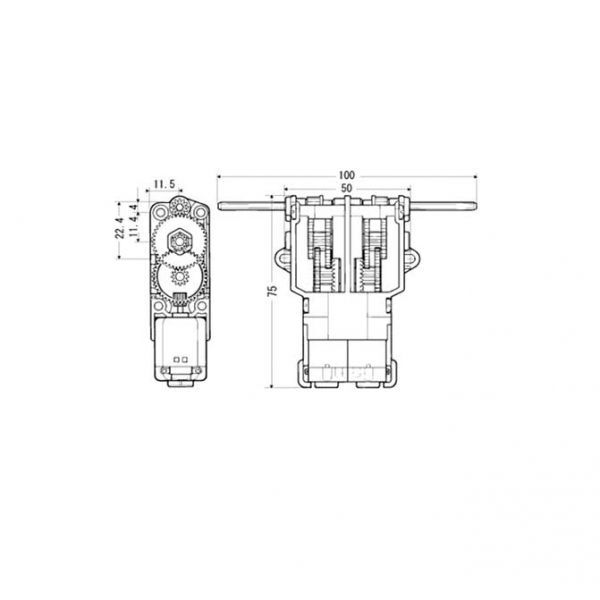

The Tamiya 70097 twin-motor gearbox is a small (3-inch long) plastic gearbox. It contains two small DC motors that drive separate 3mm hexagonal output shafts.

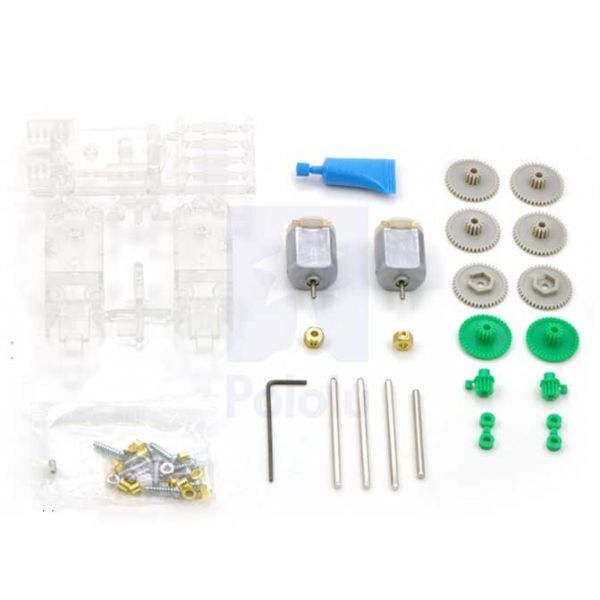

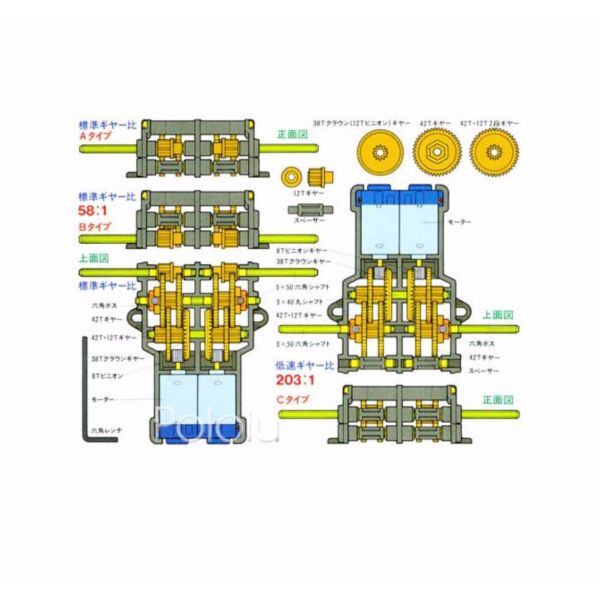

There are two ways to put the kit together: with a high-speed 58:1 gear ratio or with a slower 203:1 gear ratio.

Either way, the motors provide plenty of power to drive any small robot.

For a gearbox with a similar form factor and more gear ratio options, see the Tamiya #70168 double gearbox Product Code 114.



SPECIFICATION


  • Typical operating voltage:  3 V
  • Gear ratio options:  58:1 and 204:1
  • Free-run motor shaft speed @ 3V:  12300 rpm1
  • Free-run current @ 3V:  150 mA2
  • Stall current @ 3V:  2100 mA
  • Motor shaft stall torque @ 3V:  0.5 oz·in3
  • Colour:  grey
SKU 70097-000
Barcode # 4950344960118
Brand Tamiya
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.000900000m3
