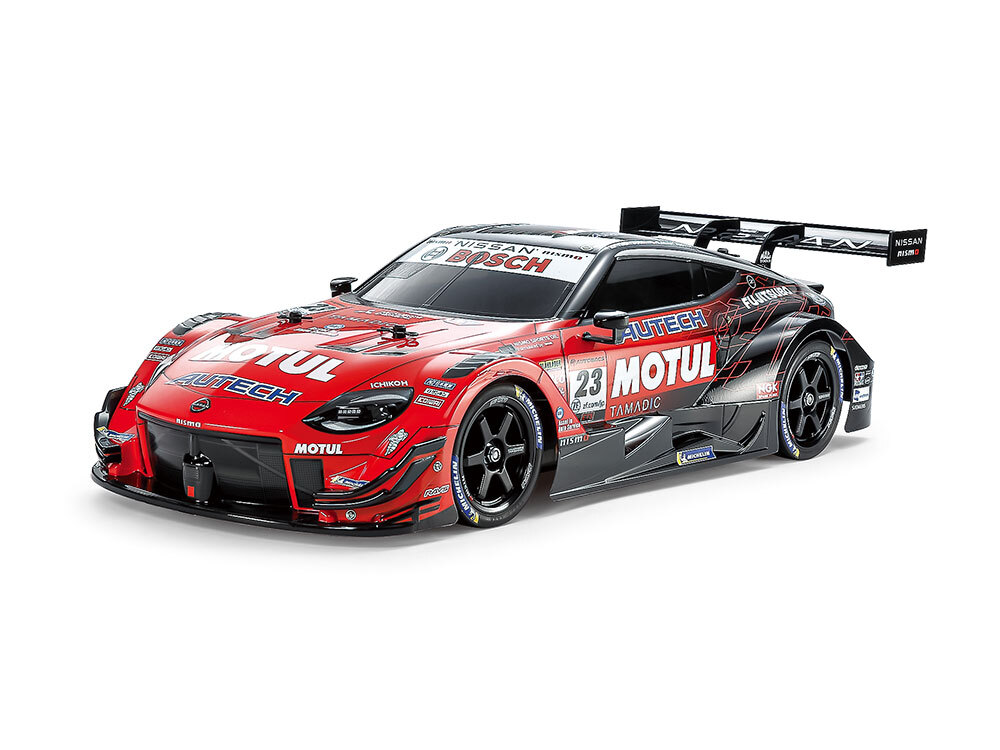

The Motul Autech Z was raced by the NISMO team in the 2023 Super GT series. It got off to a great start, winning the opening race of 2023 in Okayama, and followed that up with creditable runner-up finishes in Round 6 and the final Round, helping the NISMO team to third place in the championship. This assembly kit R/C model recreates the complex racecar with a polycarbonate body, and a sticker sheet to recreate the various sponsor logos and markings. The TT-02 chassis is an adaptable and accessible platform.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 6-spoke wheels use semi-pneumatic slick tires.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Steering Servo (standard size around 7Kg)
• Battery pack (suit the esc you are using) & charger
• Tamiya PS paint of your choice

Specifications
Length: 468mm, width: 188mm, height: 120mm
Wheelbase: 257mm
Tire width/diameter: 26/66mm (front & rear)
Bathtub-type frame
Shaft-driven 4WD
Front/rear 4-bevel plastic differentials
3-piece steering tie-rod
4-wheel double wishbone suspension
Front/rear friction dampers
Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Type 540 motor
Electronic Speed Controller (ESC) is sold separately.
