With seven wins in just eight appearances during the 1990 World Sports Prototype Championship (WSPC), the Mercedes-Benz C 11 was clearly the class of the field - Boasting a carbon fibre monocoque chassis and powerful 5-liter V8 twin turbo engine, it had an unrivalled pairing of speed and reliability. This assembly kit recreates that car in 1/10 scale, with the honed body depicted in polycarbonate, plus stickers included to recreate one of two cars.

Direct-Drive 2WD Chassis
Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive drive. At the front, it has an independent coil-sprung king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and CVA oil damper; teamed up with sponge tires front and rear, they ensure superb road holding. Additionally, use of spacers allows two different front and three rear ground clearance setups.

Features

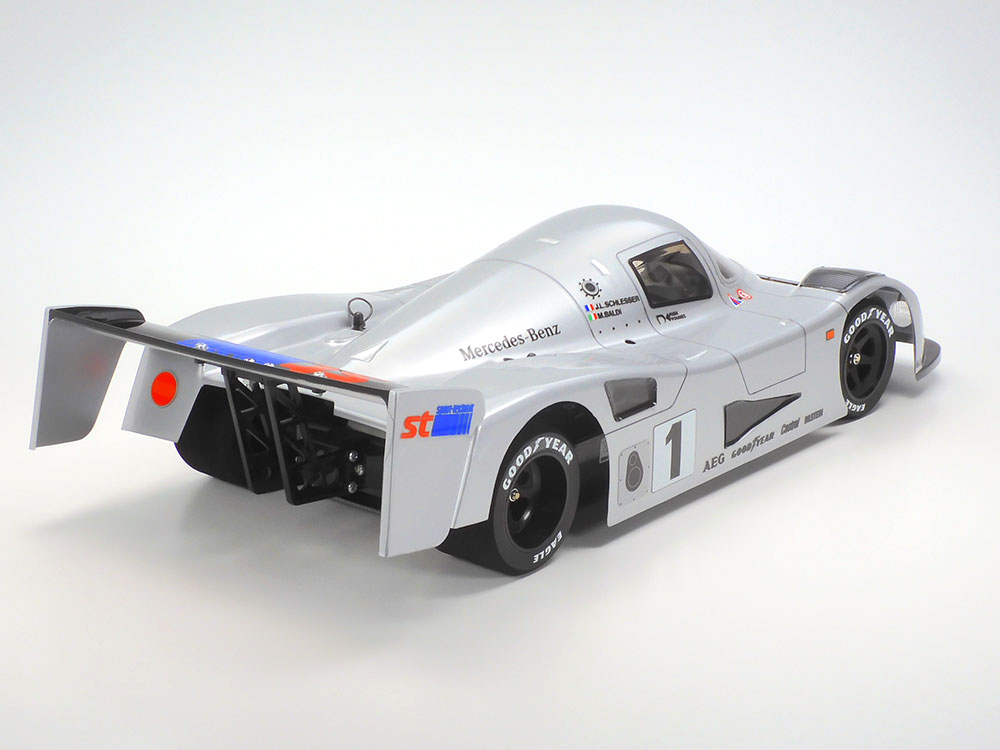

• Take a look at the aerodynamically honed body from the rear, recreated accurately in polycarbonate.

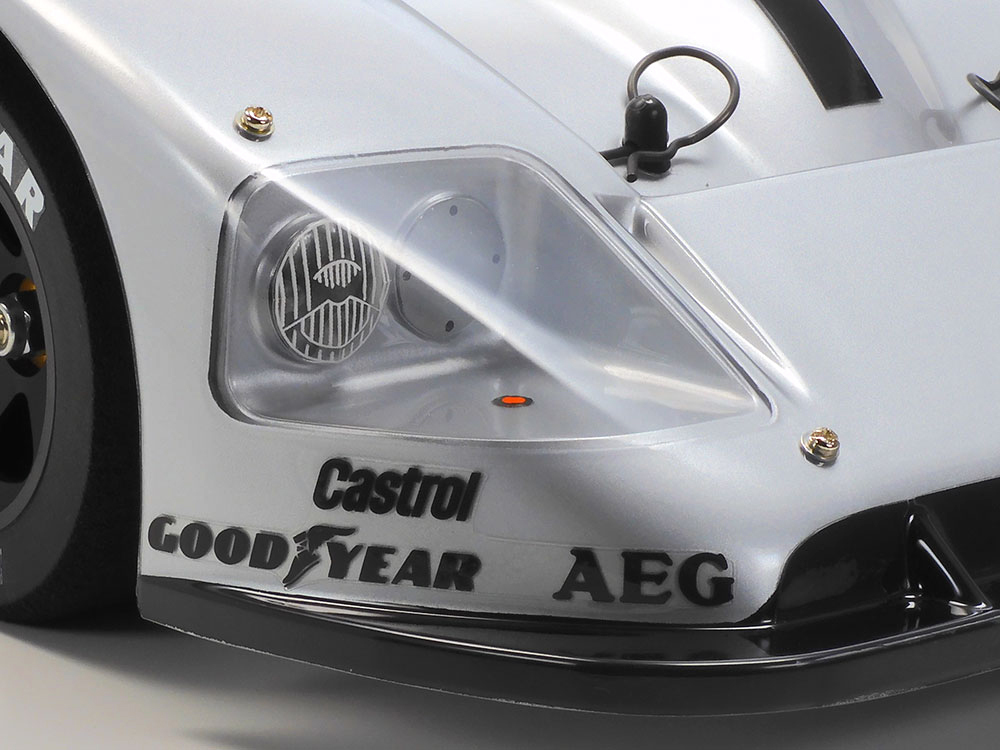

• Separate headlight cases add extra realism; paint and stickers are used for an authentic finish.

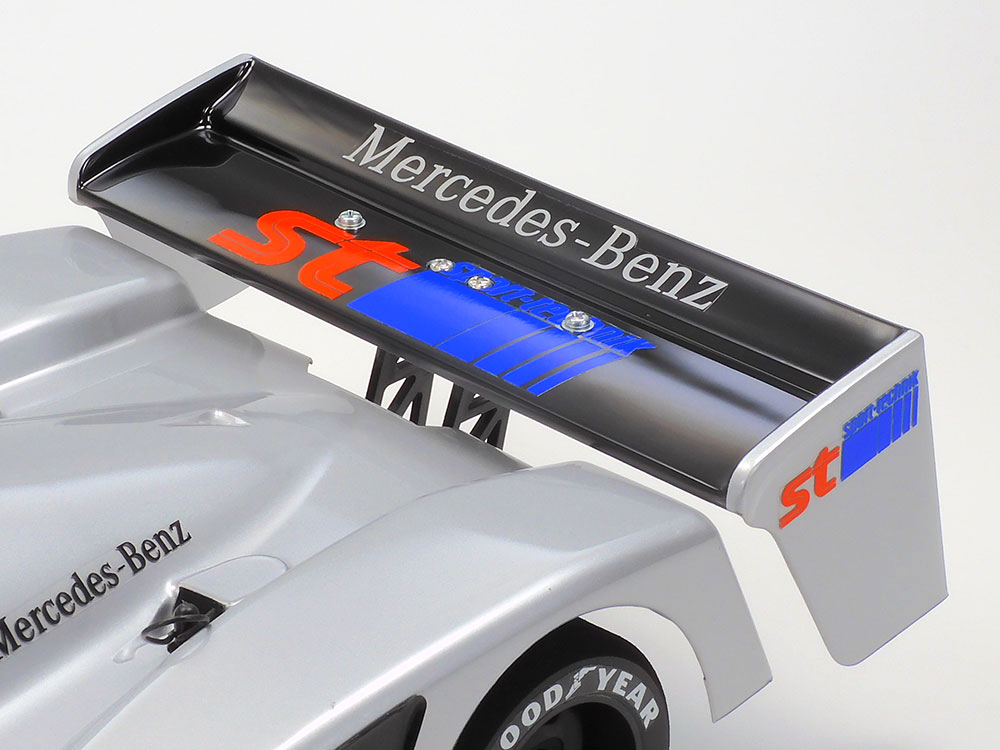

• The sizable wing is rendered in polycarbonate, with plastic stays holding it in place.

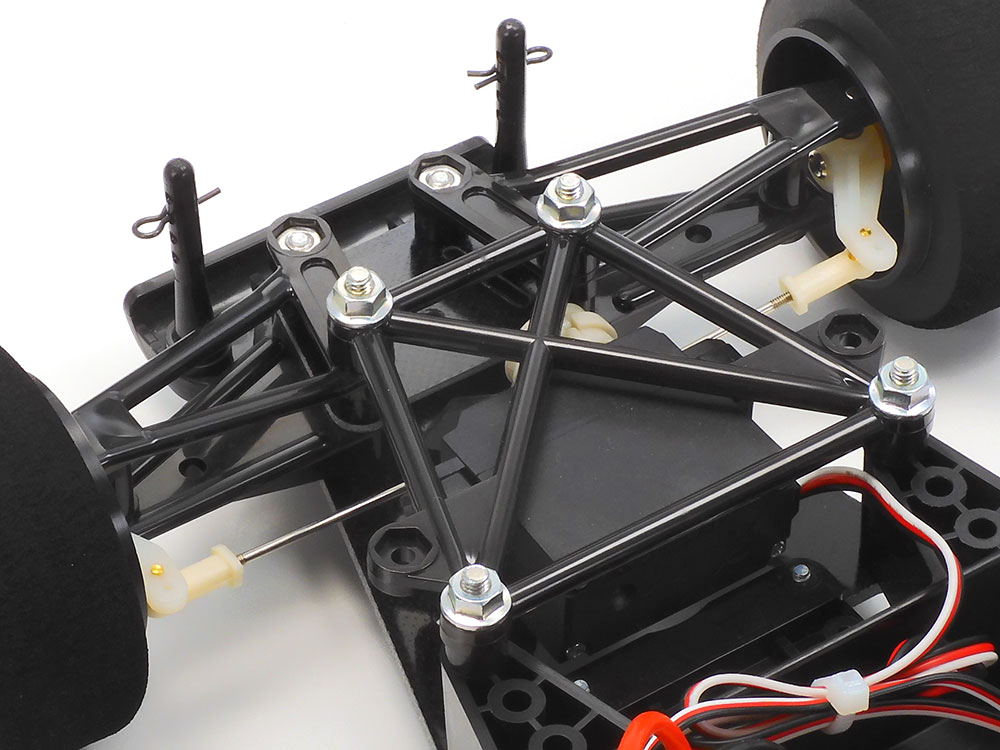

• This image shows the direct 2-piece steering tie-rod setup, and the sturdy front space frame.

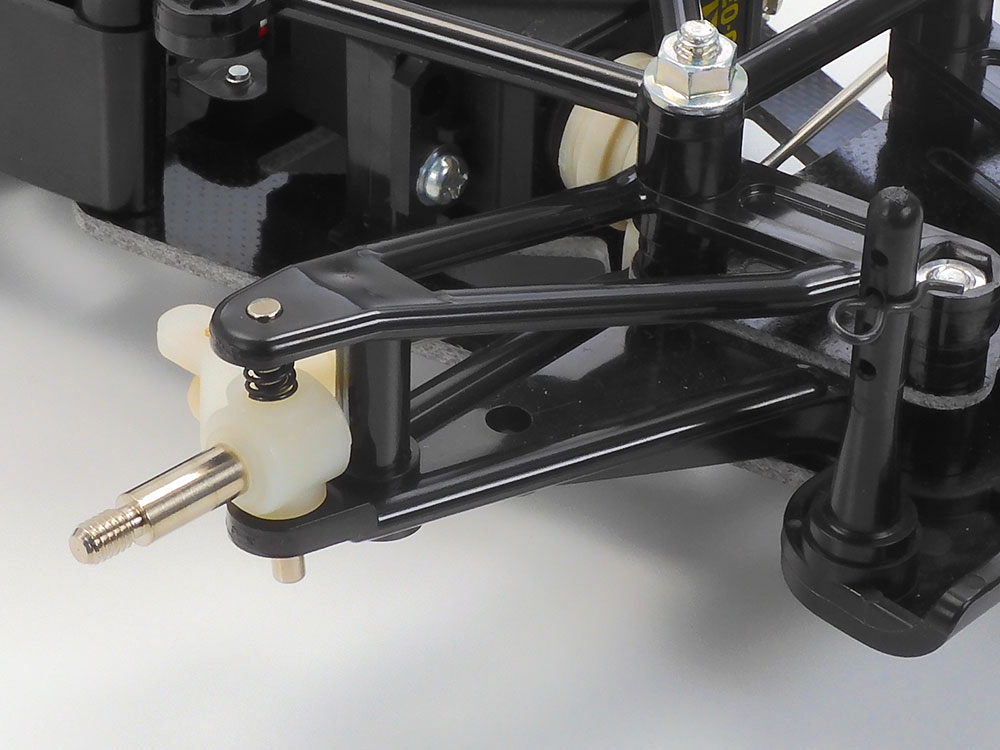

• A closer look at the front suspension, which uses a king pin and coil spring setup.

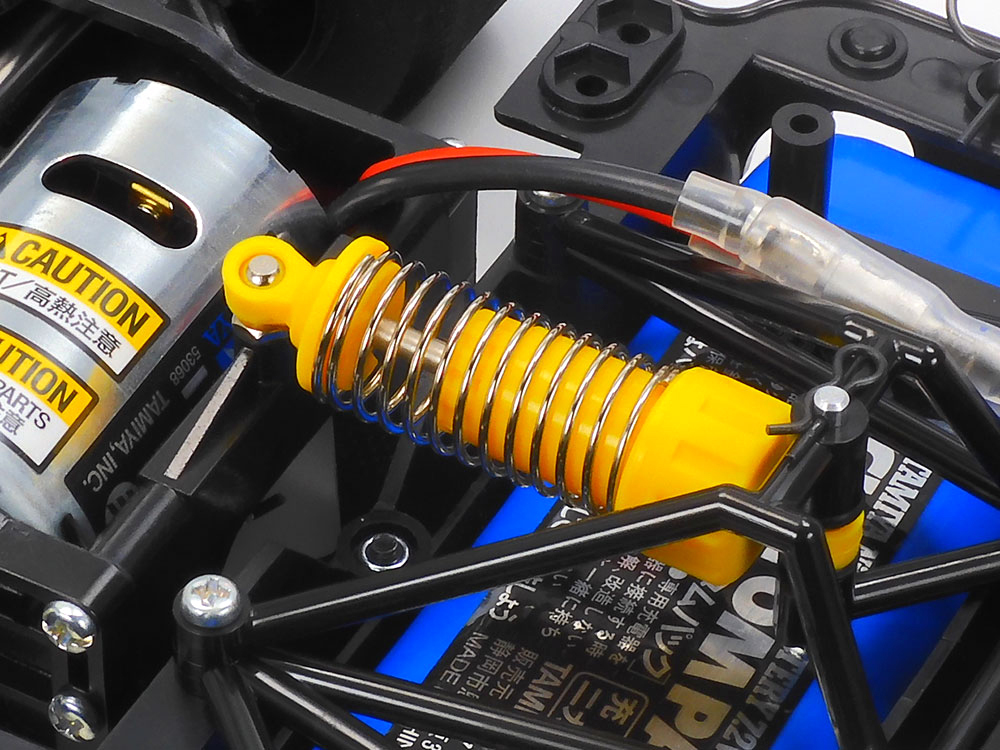

• A 1.5mm thickness FRP T-bar and CVA oil damper are at the centre of the rear suspension.

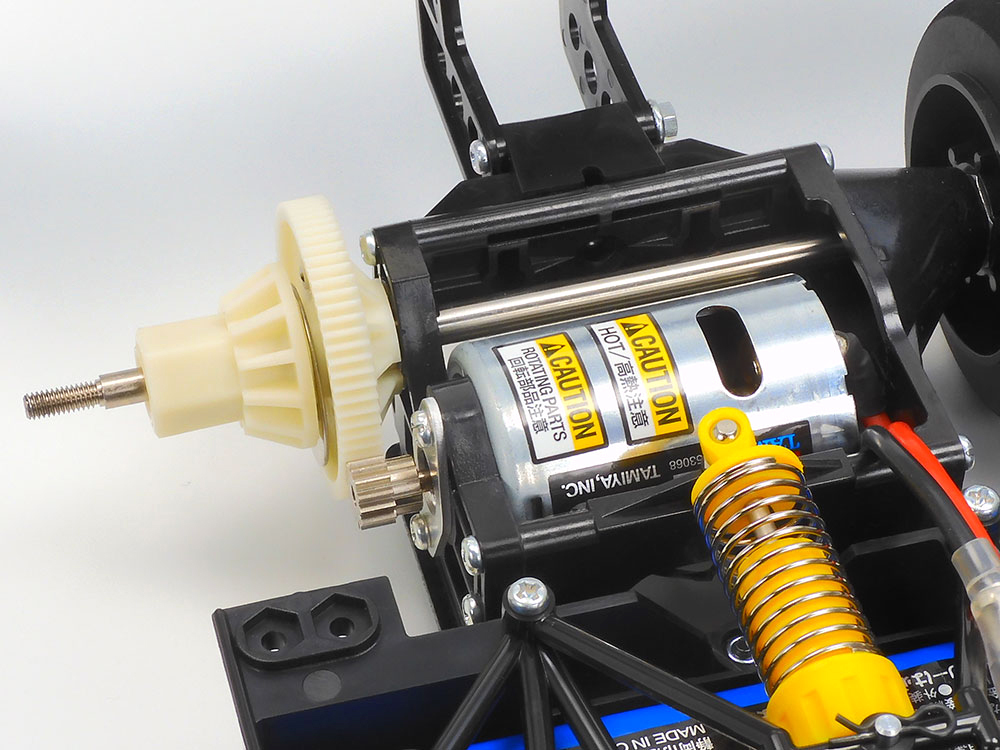

• The model is powered by a Sport-Tuned motor, and uses a direct drive setup with the spur next to the ball differential.

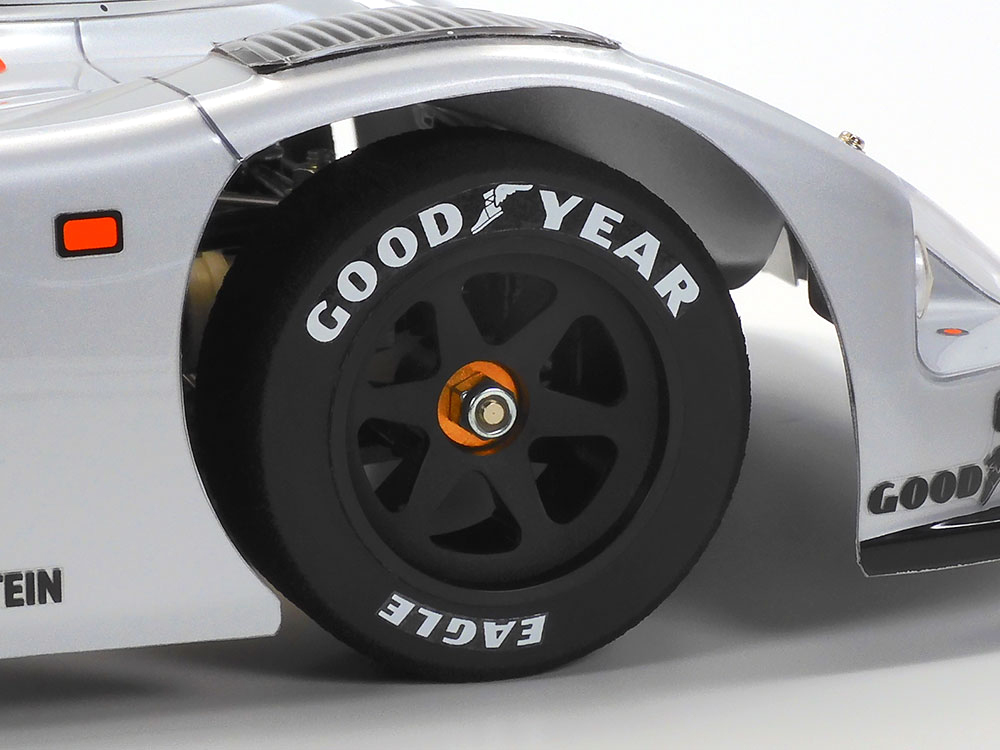

• Sponge tires afford the car excellent grip. Goodyear sidewall logo stickers are provided.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

Specifications
Length: 490mm, width: 206mm, height: 110mm
Wheelbase: 280mm
Tread: 172m (front), 152mm (rear)
Tire width/diameter: 28/64mm (front), 45/68mm (rear)
Bathtub frame with space frame and FRP plates
Transverse motor direct drive 2WD
Ball differential
2-piece steering tie-rod
3-point suspension with CVA oil damper
Gear ratio = 5.00:1
Sport-Tuned motor
Electronic speed controller (ESC) is sold separately.
