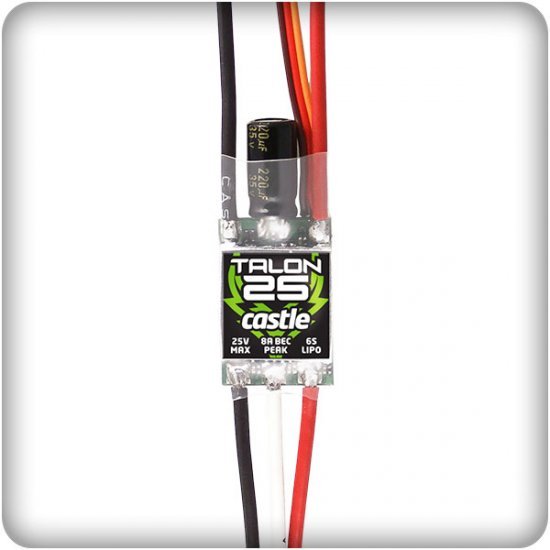

Talon 25: Compact and cool.
Castle Creations is proud to introduce the newest ESC in the Talon series - Talon 25. This compact controller can keep it’s cool even during the most extreme 3D maneuvers. Talon 25 is intended for use in most 400-size helicopter setups running up to 6S LiPo or your favorite 3D foamie that pulls up to 25 amps. Despite it's size, it boasts an impressive 8 amp peak/3 amp continuous BEC, keeping even the most draining servos at ease. Talon 25 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (coupon for free Castle Link included). Talon 25 tips the scales at a mere 18 grams!



Item number 010-0128-00
Input voltage MIN: 2S LiPo
MAX: 6S LiPo
Max continuous amperage at full throttle 25 amps*
BEC voltage (voltage regulator for powering radio and servos) 5.5 volts
BEC output 8 amp peak**
3 amp continuous
(always check servo draw prior to first flight)
Dimensions

Width: 0.72" (18.2mm)
Length: 1.72" (43.7mm)
Depth: 0.32" (8.1mm)

Weight (with wires) 0.63 oz. (17.9g)
Weight (without wires) 0.28 oz (7.9g)
Items needed for operation or installation

Battery connector and motor connectors sold separately

Programmability Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.

*RC HOBBY APPLICATION RATING: 25 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

**Peak indicates amperage sustainable for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.

SKU CSE010012800
Barcode # 0819326010682
Brand Castle Creations
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
