Product Details

In The Box

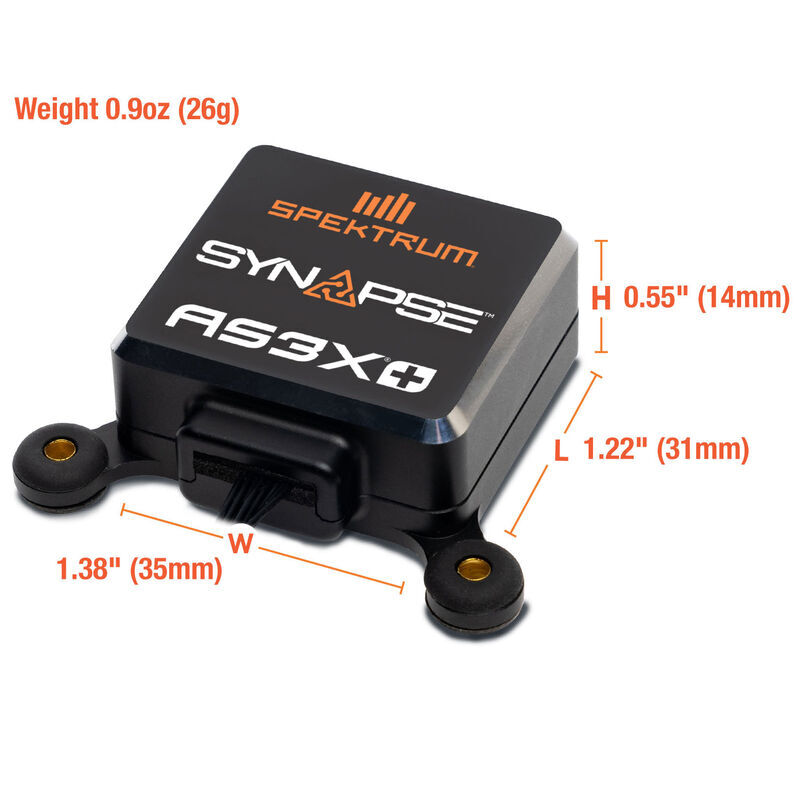

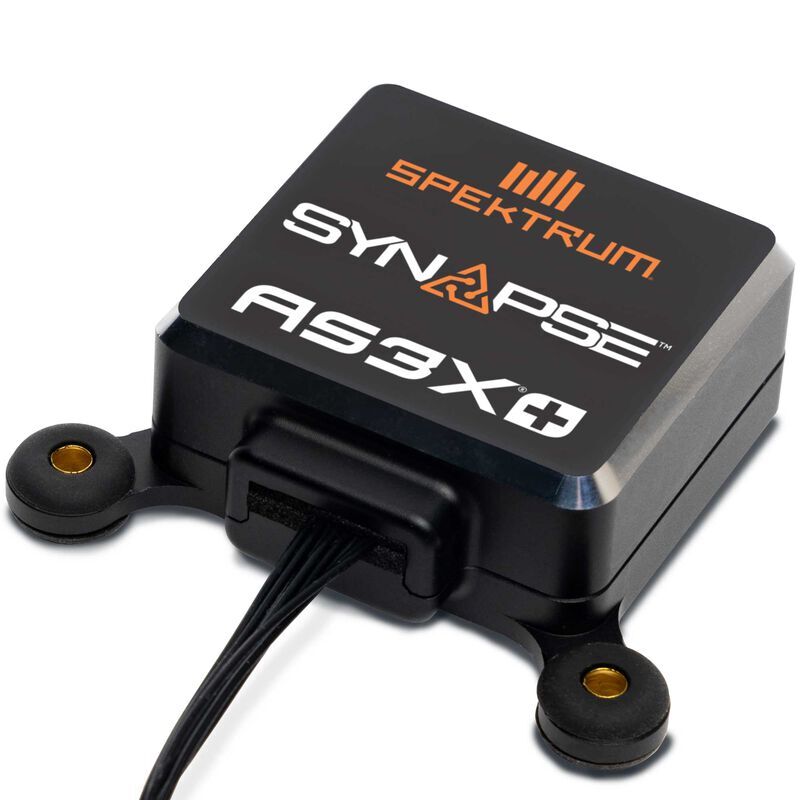

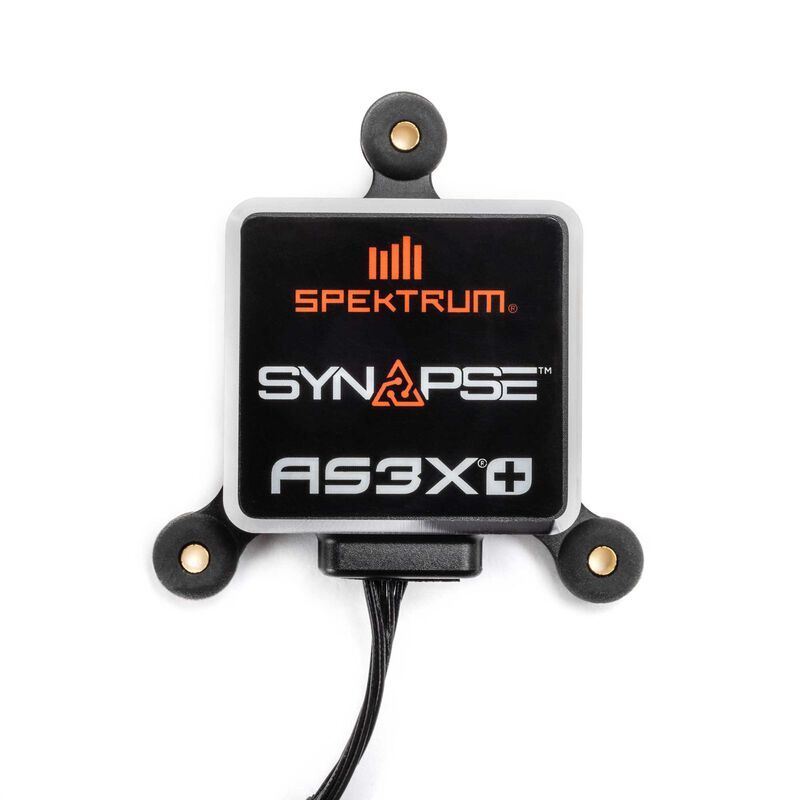

• (1) Synapse AS3X+ & SAFE Stabilization Module

Download AS6000 Synapse Stabilization Module Manual HERE

DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS

Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse and AS3X+ algorithm with turbine and giant scale aircraft in mind. We've vastly improved the flying characteristics, designed the system to operate flawlessly in noisy turbine environments and given you 20 stabilized outputs. Now, you can genuinely set your new model's gyro up in less than 5 minutes without a PC, cables or stick position commands. It's so easy, anyone can do it!

NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring Support

NOW WITH SAFE

You now have access to our SAFE technology at the flip of a switch which can potentially turn any disastrous situation into a complete recovery. Have the confidence and seconds you need to regroup after an orientation loss or distraction at the field. SAFE can even be selected for the failsafe position with predefined bank and pitch angles. SAFE has saved thousands of aircraft and can potentially save yours.

LOCKING SENSOR CABLE

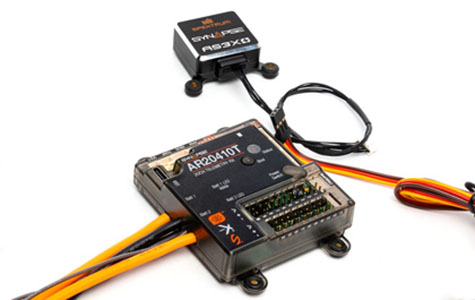

Synapse's sensor cable is now designed with a locking connector on the RX side and the sensor side is internally mounted inside Synapse. This ensures that your synapse remains connected to your receiver regardless of in-flight vibrations.

ALUMINUM CASE

The Synapse case is machined aluminum with three grommeted hard mounts for easy installation in most aircraft

ACOUSTIC ISOLATION

Synapse’s gyro sensor is encased in a sound and vibration reduction insulation designed for turbine applications. While other systems require third party sound damping, we’ve designed Synapse to work flawlessly in most turbine applications.
