Overview

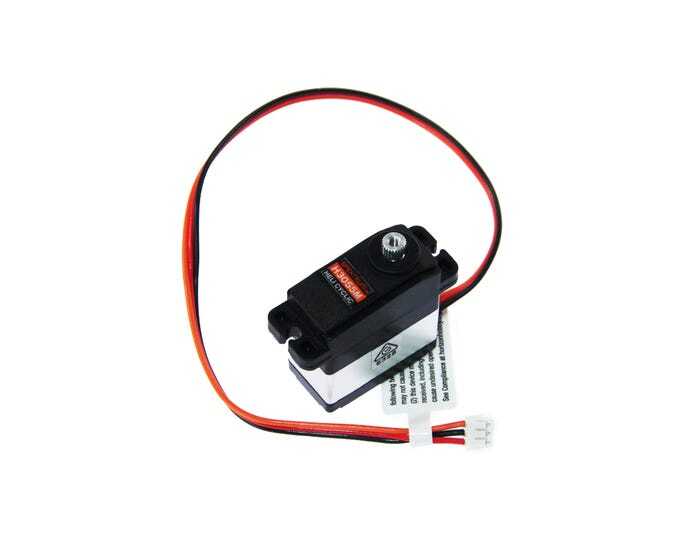

Sub-Micro Digital Metal Gear Servo Micro Connector is compatible with the Blade 230S V2 RC Heli

Specifications

Maximum Servo Torque 20-39 oz-in
Speed 4.8V 0.067 sec/60 deg, 6V 0.053 sec/60 deg
Bushing Or Bearing Bearing
Wire Gauge 22 AWG
Bearing Single
Deadband 2
Servo Size Category Mini and Micro
Maximum Servo Speed 0.050-0.099 sec
Servo Operating Voltage 4.8 - 6.0V
Torque 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
Product Height 1.17" (30 mm)
Product Length 0.91" (23 mm)
Product Weight 0.46oz (12.9g)
Product Width 0.47" (12 mm)
Programmable No
Servo Type Digital
Gear Type Metal
Application 250 - 450 size heli, cyclic
Part Type Electronics
SKU SPMSH3055M
Barcode # 0605482726457
Brand Spektrum
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
