Overview

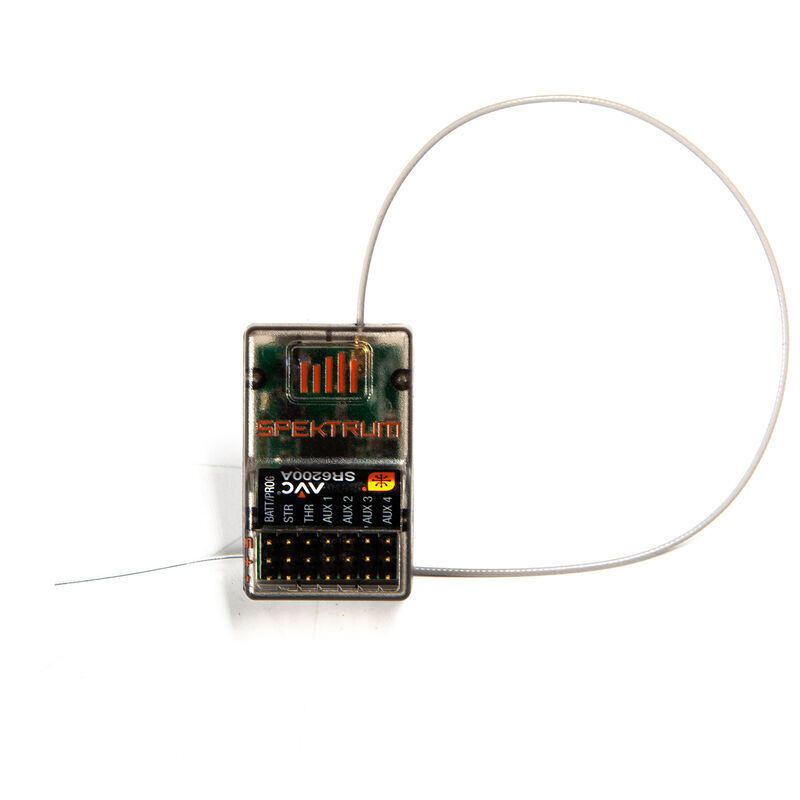

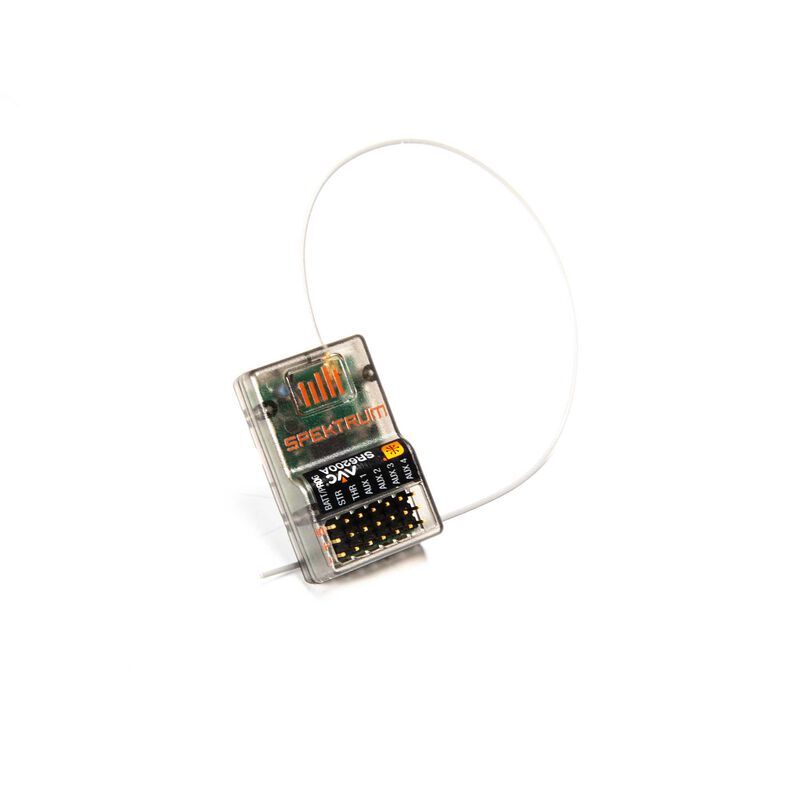

Built around frequency-agile DSMR® technology, the Spektrum™ SR6200A 6-channel DSMR receiver delivers superb range and response along with unbeatable signal security in a compact, easy-to-install package. AVC® (Active Vehicle Control™) technology increases your stability on tough terrain. Compatible with innovative Smart Technology, the AR6200A receiver also provides real-time telemetry data when used with a Smart ESC and Smart battery.

Features
  • 6-channel DSMR / DSM2 receiver
  • Compact size better fits in tight builds and setups
  • Long antenna for better range and reception
  • Drive By telemetry capabilities with Spektrum Firma Smart ESC
  • Great for models that will benefit from AVC Technology that need additional channels for lights, shift servos and other accessories

  • Steering priority puts the driver in complete control
  • Fully adjustable-set the precise amount of stability you want or turn off if desired
  • Water-resistant "Reliakote" coating protects electronics
  • Works with any RC car, truck or buggy
  • Compatible with all DSMR transmitters

Video Overview


Smart Throttle   AVC Technology

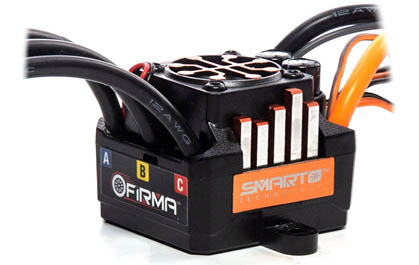

The SR6200A receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Smart ESC and Spektrum Smart LiPo batteries, the SR6200A can pass along a multitude of helpful telemetry and battery data with no additional modules, sensors or wires. If a standard ESC or servo is plugged into the throttle port on the SR6100AT receiver, the throttle port will operate normally like any conventional receiver.   With the SR6200A driver's get stability control for ANY vehicle in their collection! You can have the stability control of AVC™ (Active Vehicle Control) technology in any vehicle just by adding the SR6200A receiver and binding it to an AVC compatible transmitter. AVC technology creates a more enjoyable driving experience by managing the vehicle's driving characteristics and attitude. This translates into more control for you and a more manageable vehicle in all driving environments.

Product Specifications
Forward Programming   No
Product Length   1.53" (39 mm)
Modulation   DSMR
Telemetry   Yes
Antenna Length   9" (229 mm)
Product Width   0.95" (24 mm)
Remote Receiver Ports   0
Technology   AVC
Bind Method   Bind Button
Range   Full
Telemetry Range   Drive By
Channels   6
Integrated Variometer   No
Band   2.4GHz
Input Voltage   3.5 - 9.6V
Product Application   Surface
Product Height   0.54" (14 mm)
Serial Out   None
Application   Surface
Failsafe   Yes
Product Weight   0.328oz (9.3g)



SKU SPMSR6200A
Barcode # 0605482718933
Brand Spektrum
Shipping Weight 0.1500kg
Shipping Width 0.120m
Shipping Height 0.040m
Shipping Length 0.220m
Shipping Cubic 0.001056000m3
