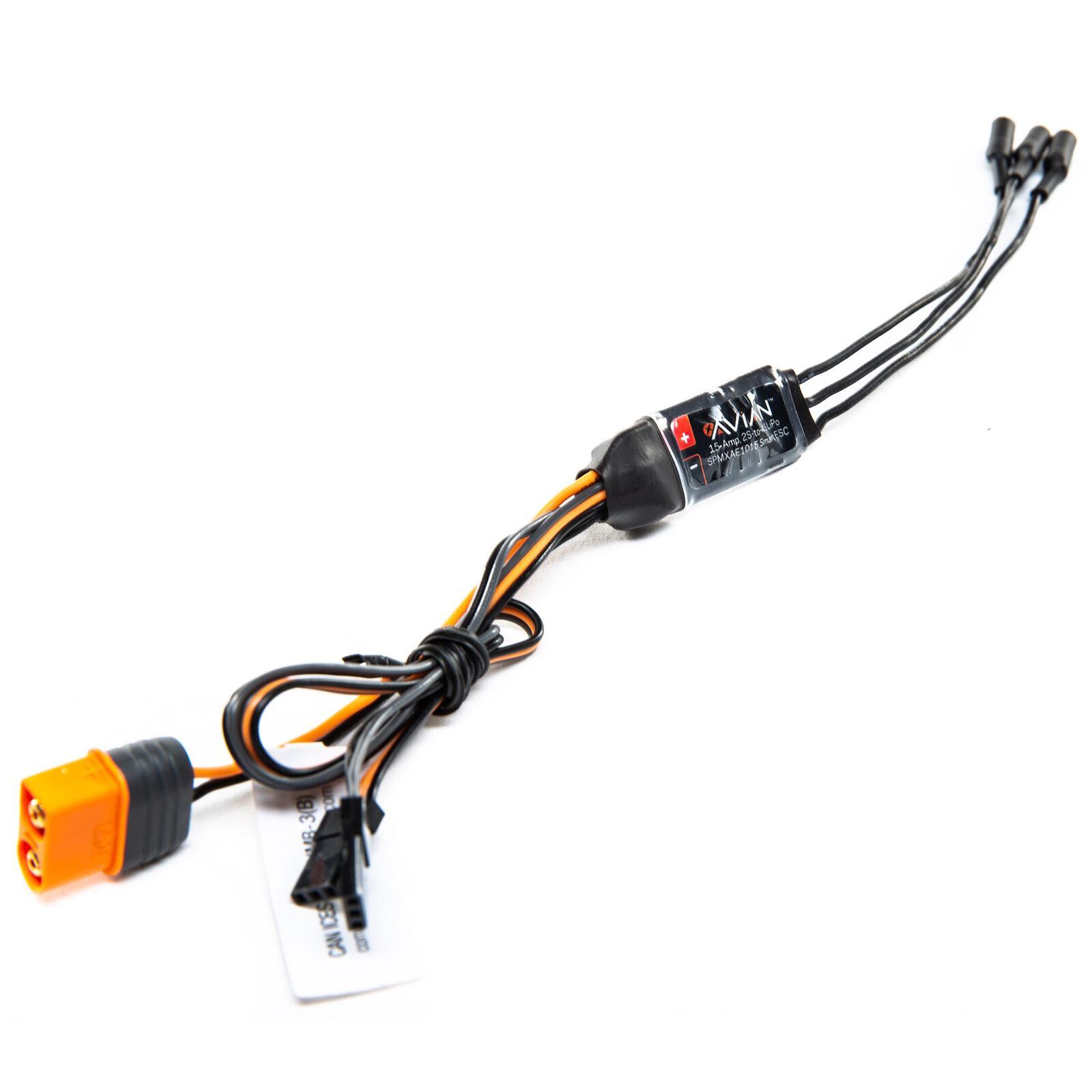

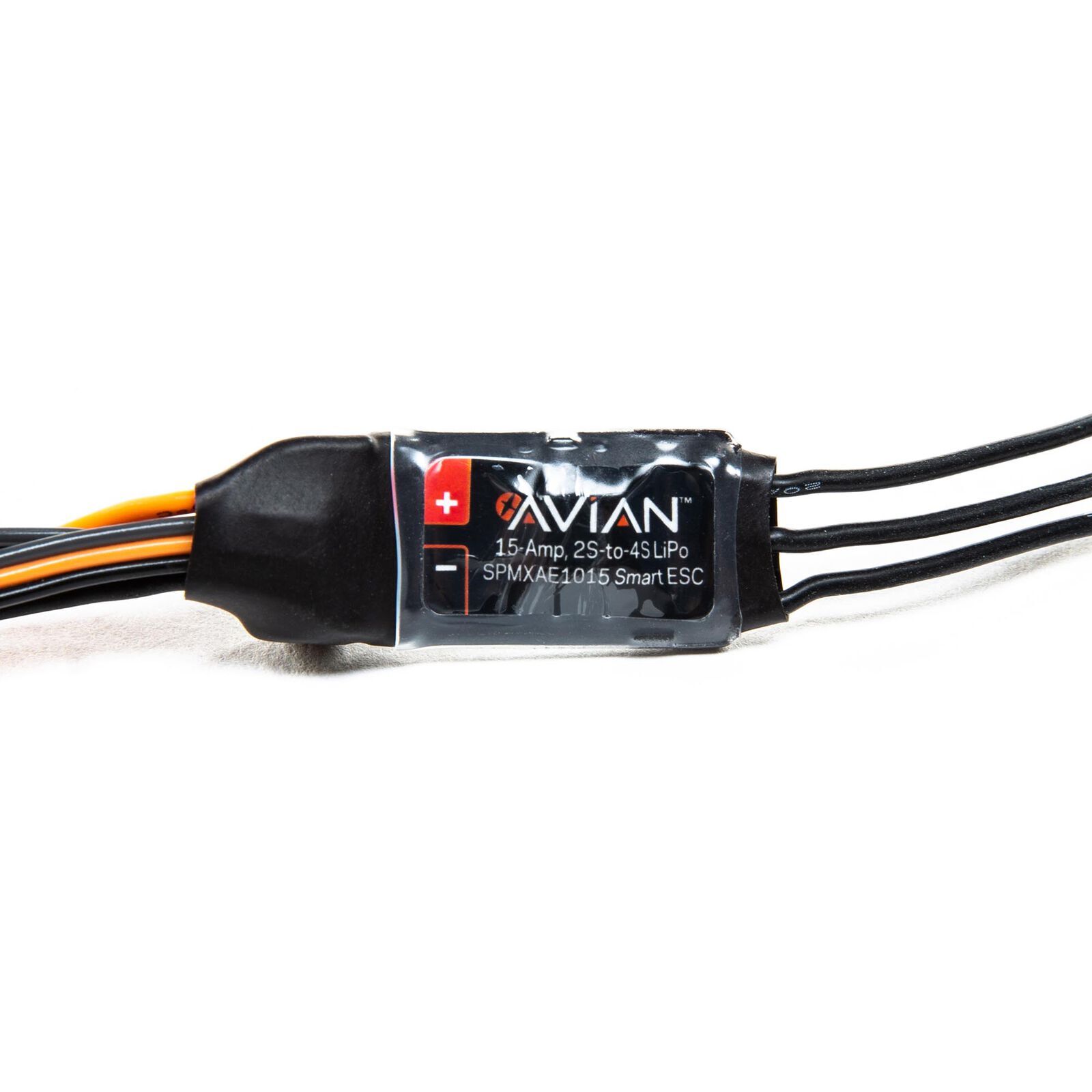

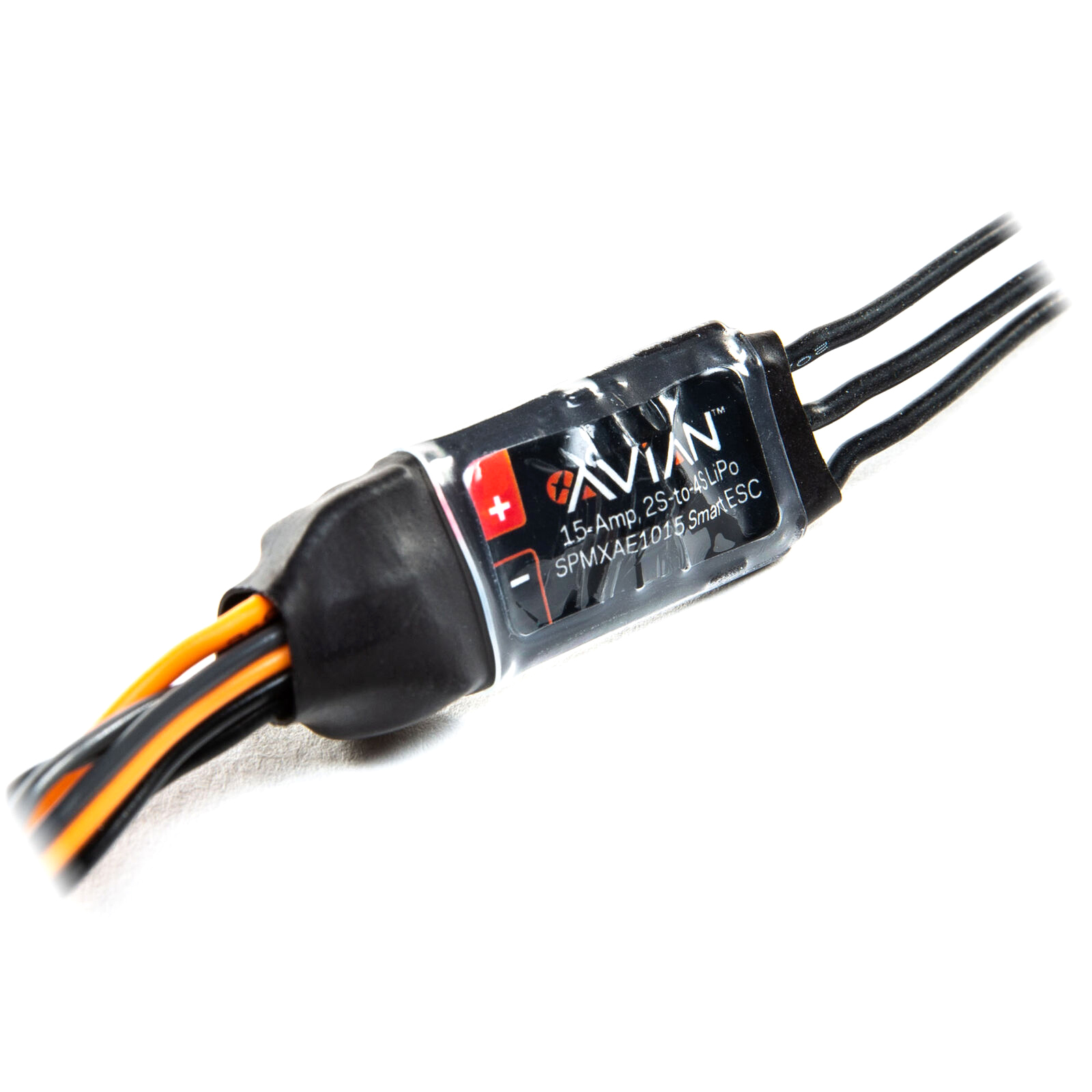

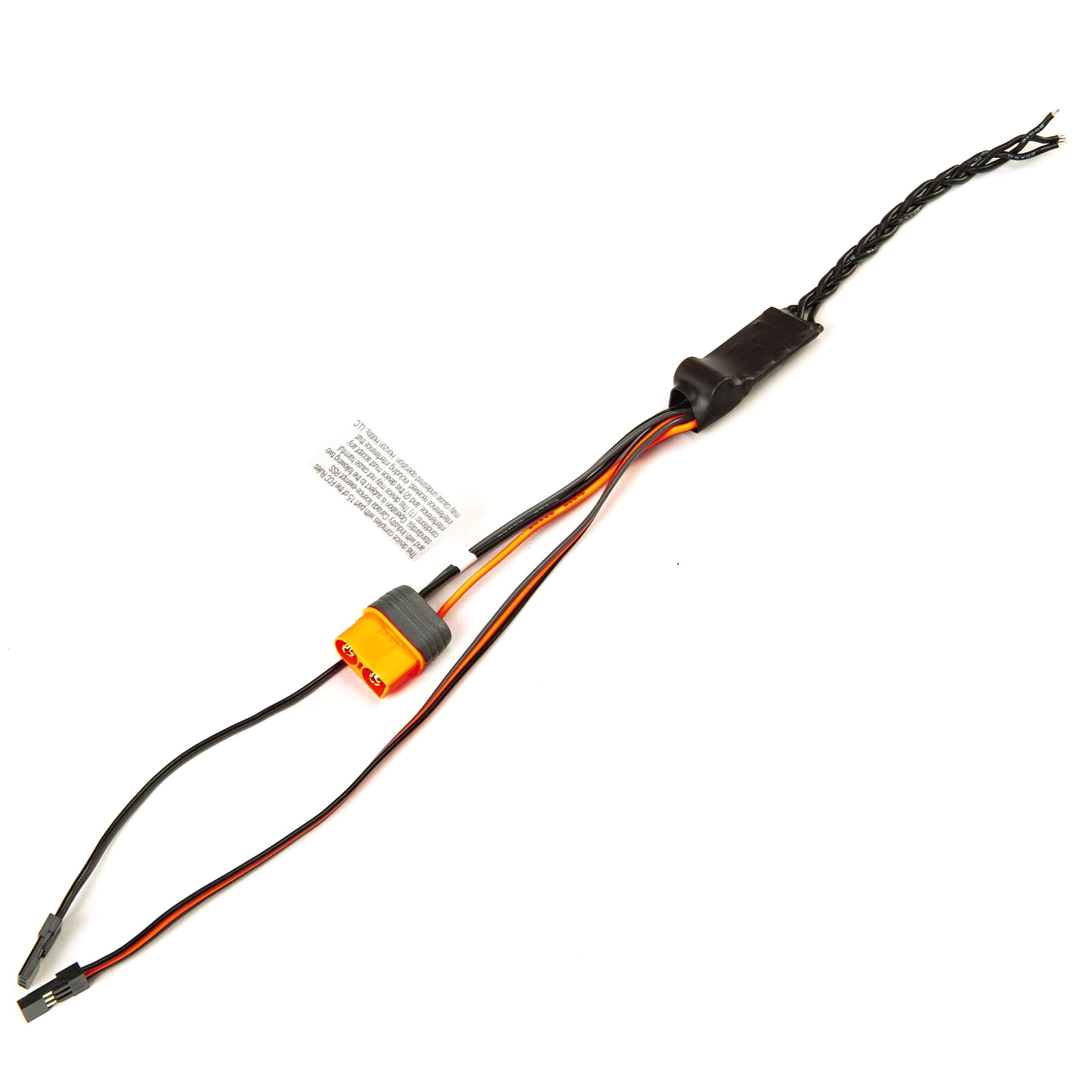

PRODUCT OVERVIEW

Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Please note - The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.

Download SPMXAE1015 Avian 15A Brushless Smart ESC Manual

Needed to Complete

  • Spektrum Aircraft Receiver
  • Spektrum Transmitter

What's in the Box?

  • (1) Spektrum Avian Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Heat dissipating design
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC connectors, backwards compatible with EC connectors
  • Limited 1-year warranty
Video Overview

Battery Data

Smart Technology Battery Data

When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

EC3 ERC5 COMPATIBLE

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

Telemtry

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

Programming Box

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

Thrust Reversing
Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

On-Screen ESC Programming
On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency , right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

Product Specifications

BEC Yes
BEC Maximum Burst Current 12A
BEC Voltage 5.2V
Input Voltage 2S - 4S LiPo
Motor Output Lead 2mm
Part Type Electronics
Product Application Air
Product Height 0.4" (11mm)
Battery Input Lead IC3
Product Width 0.6" (16mm)
Technology Smart
Connector Type IC3
ESC Type Brushless
Product Length 1.4 (35mm)
Adjustable Timing Yes
Brakes Yes
Programmable Yes
Programming Options Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Application Air
Auto Cutoff Yes
BEC Continous Current 3
Low-Voltage Cutoff Programmable Yes
Product Weight 0.6oz (16g)
Amperage Up to 15A
BEC Type Linear
Max Input Voltage 14.8V
Maximum Burst Current 25A
Maximum Continuous Current 15A
Forward Yes
Reverse Yes



SKU SPMXAE1015
Barcode # 0605482429112
Brand Spektrum
Shipping Weight 0.3000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000288000m3
