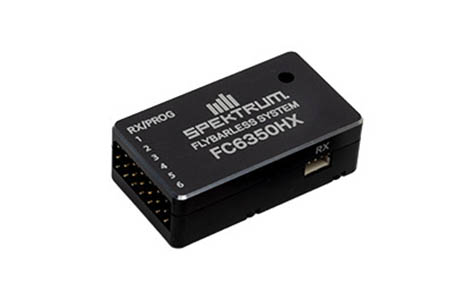

Spektrum FC6350HX Flybarless Helicopter Control System
SKU code: SPMFC6350HX
More infoMake 4 interest-free payments of $88.75 fortnightly and receive your order now.
|

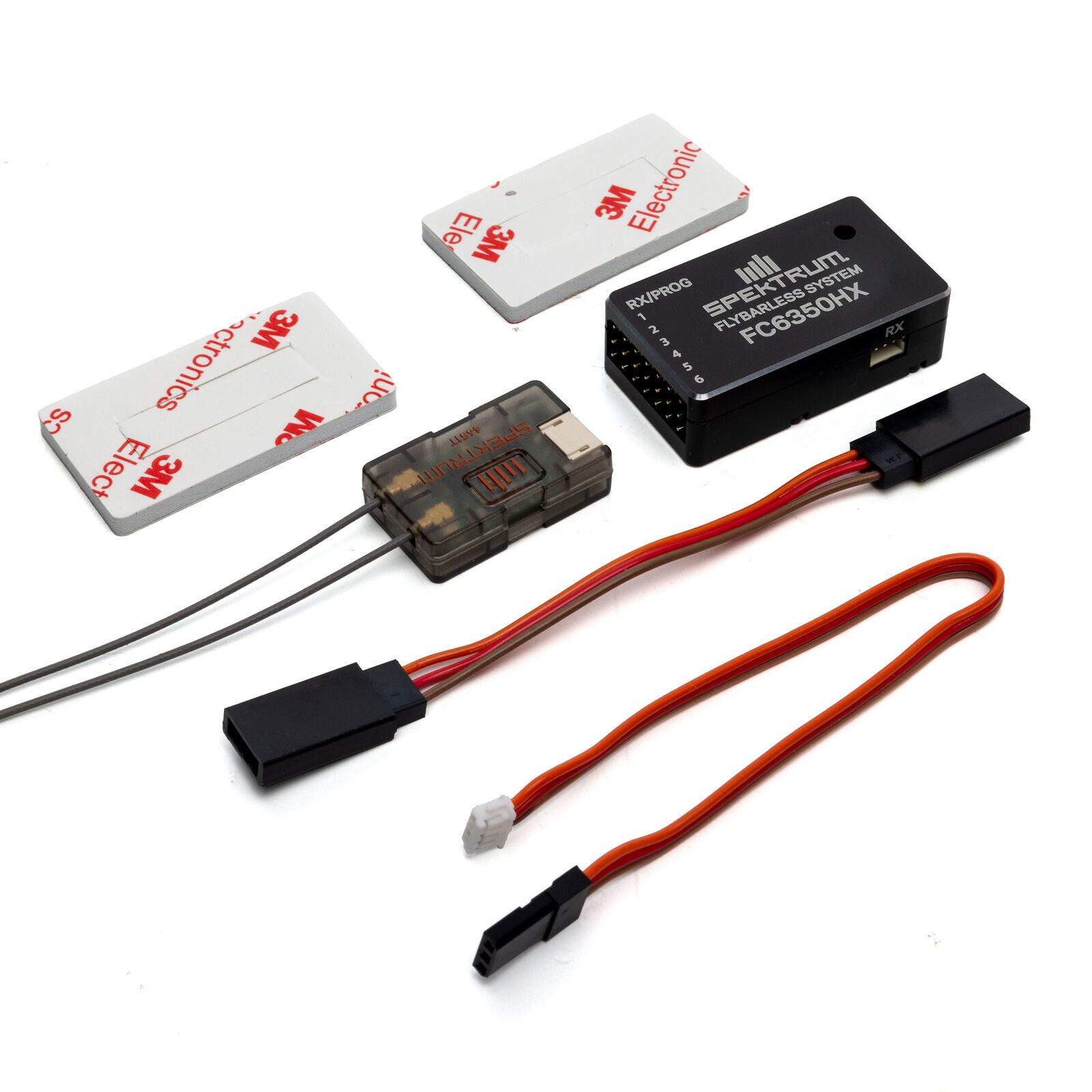

Product DetailsThe Spektrum™ FC6350HX flight controller is the heart of your radio control helicopter experience. It is ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. The flight controller is Smart ESC ready, and takes full advantage of forward programming from your Spektrum compatible transmitter. In The Box(1) Spektrum FC6350HX Flight Controller
(1) Spektrum SPM4651T SRXL2™ Telemetry Receiver
(1) User Manual
(1) Decal Sheet
(2) 3M Adhesive Mounting Pad
Key FeaturesSupports two DSMX remote receivers
User configurable SAFE Panic Recovery and Stability Flight Modes
Easy to use Forward Programming for setup and gain adjustments from compatible Spektrum transmitters
Smart Technology ready for Smart ESC and Smart Battery telemetry
Supports DX, iX, and NX series transmitters
Supports Digital and Analog servos
70Hz to 560Hz Adjustable Servo Frequency (760μs and 1520μs center)
|
||||||||||||||||||||||||||||||||||||||||||||||||||
Spektrum FC6350HX Flybarless Helicopter Control System OverviewAs a 3-axis stability system for your flybarless helicopter, the FC6350HX can be set up and tuned using your Spektrum transmitter as a forward programming interface. All the flight controller settings can be programmed through your transmitter. Using AS3X and SAFE technology, the FC6350HX offers self-leveling beginner modes, as well as pro-level flight performance. Add a Spektrum Smart ESC to your heli to expand integrated features without extra wires or sensors. When the flight controller detects a Smart ESC connection, it feeds a telemetry stream to the transmitter, putting live battery data power in your hands. The FC6350HX can also be programmed, updated, and backed up using the Spektrum USB Programmer and PC programmer application. |
||||||||||||||||||||||||||||||||||||||||||||||||||
|

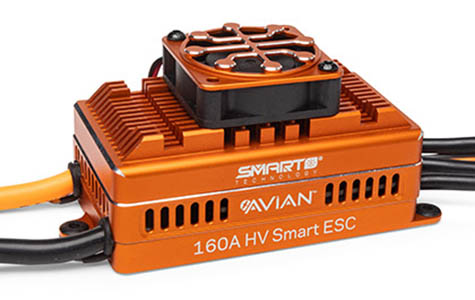

Smart ESC ReadyHeli Pilots can easily monitor Voltage, Current, Rotor head RPM, and more when combined with a Spektrum Smart ESC. No extra modules, wires, or connections are required. All this data will automatically be displayed on a compatible Spektrum transmitter for easy viewing, logging, and alarm warnings. |

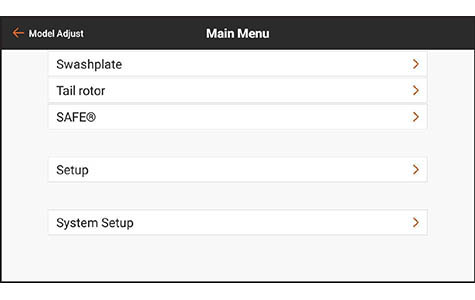

Forward ProgrammingForward Programming allows pilots to easily setup, program, and tune the FC6350HX with no need for extra hardware, devices, or computers. Pilots can quickly make tuning changes on the flight line to the swashplate, tail rotor, SAFE stability, flight modes and more, right from their compatible Spektrum transmitter. All this is available with all current DX, iX, and NX transmitter models (an update may be required). |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Advanced AS3X Stability and SAFE TechnologyThe FC6350HX features the latest in AS3X and SAFE Stabilization Technology. SAFE technology allows pilots to operate within user-defined flight modes that automatically keep the model in a manageable attitude and constantly level the model when the control sticks are returned to the center. Additionally, pilots can use SAFE technology to utilize a Panic Recovery option, which will nearly instantly right the model into an upright and controllable attitude to within four degrees of level. All these features are completely setup and tuned straight from your compatible Spektrum transmitter via the Forward Programming Menu. |
Compact Design Ready for Mini to 700+ Size Heli ModelsIdeal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. Featuring a leading-edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32-bit ARM M4 Cortex processor, and proprietary advanced adaptive flight control algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding, and rock-solid piro-compensation. Vibration is effortlessly rejected thanks to the CNC mounting case and included high-quality dampening mounting pads. |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
Product Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||
.jpg)
.jpg)
| SKU | SPMFC6350HX |
| Barcode # | 0660132979454 |
| Brand | Spektrum |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001200000m3 |
