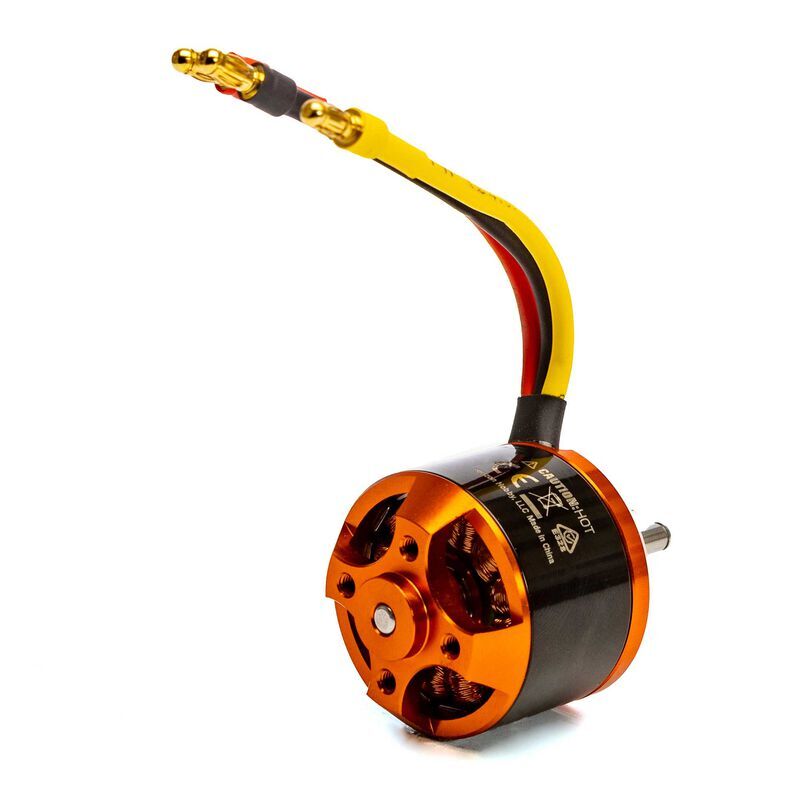

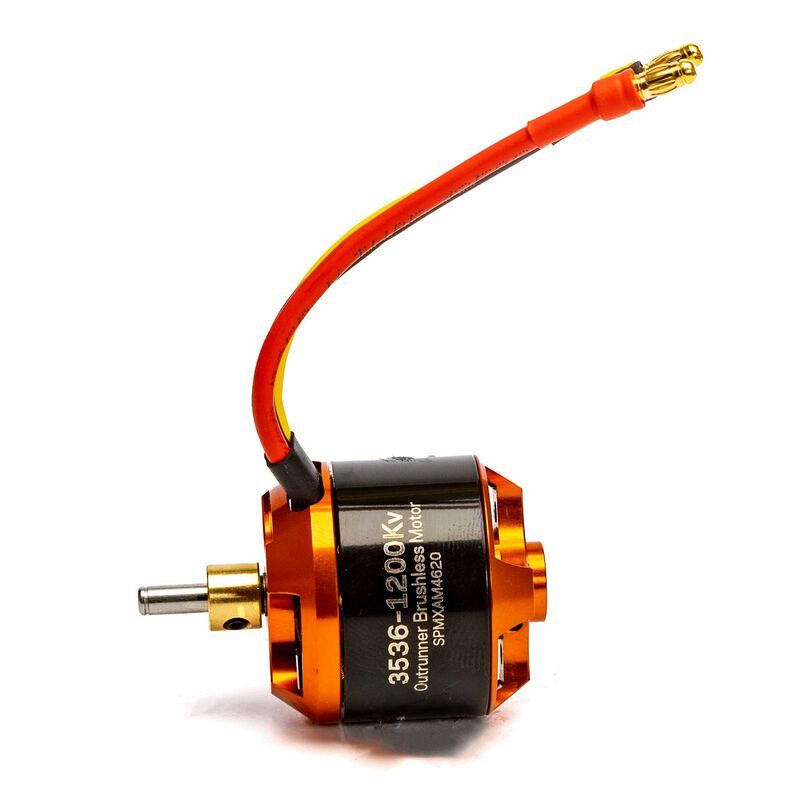

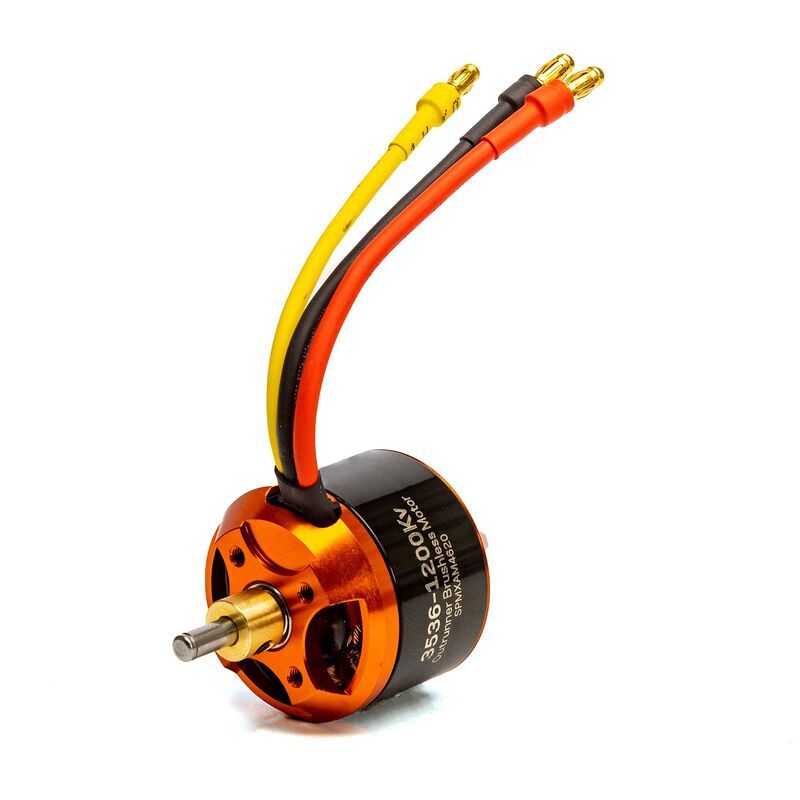

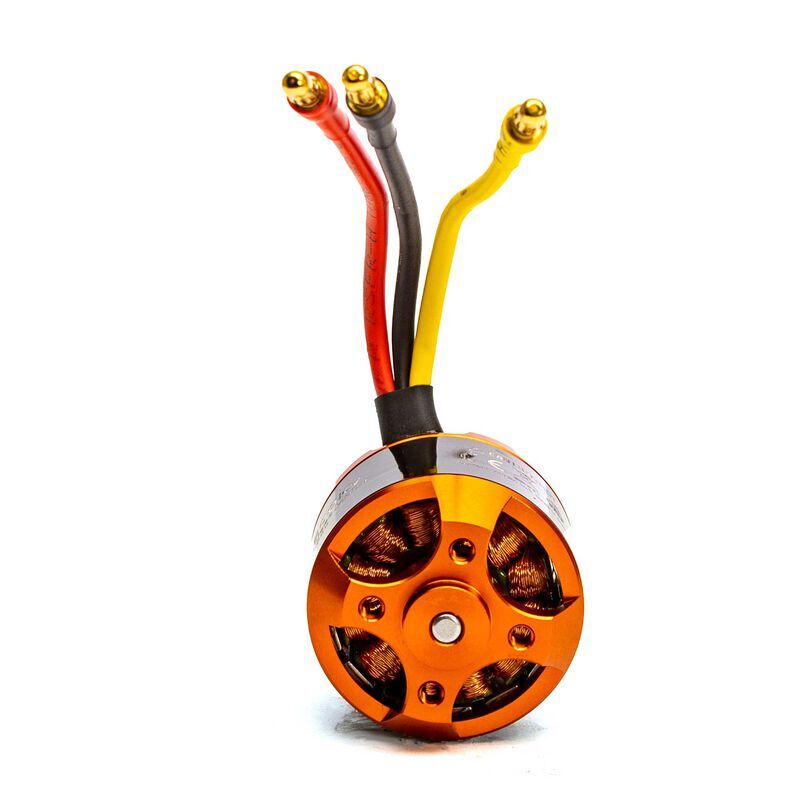

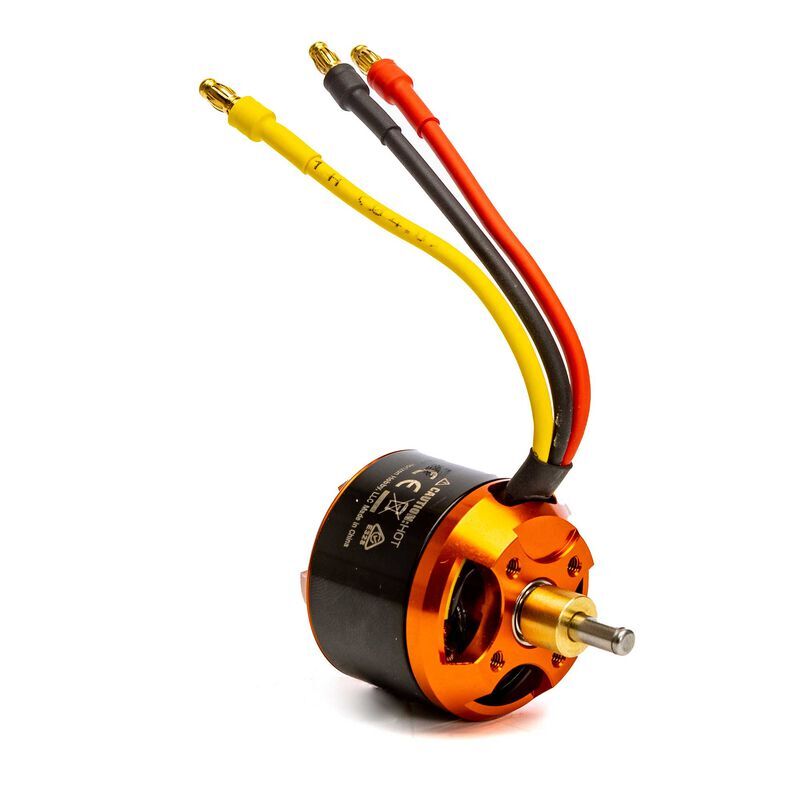

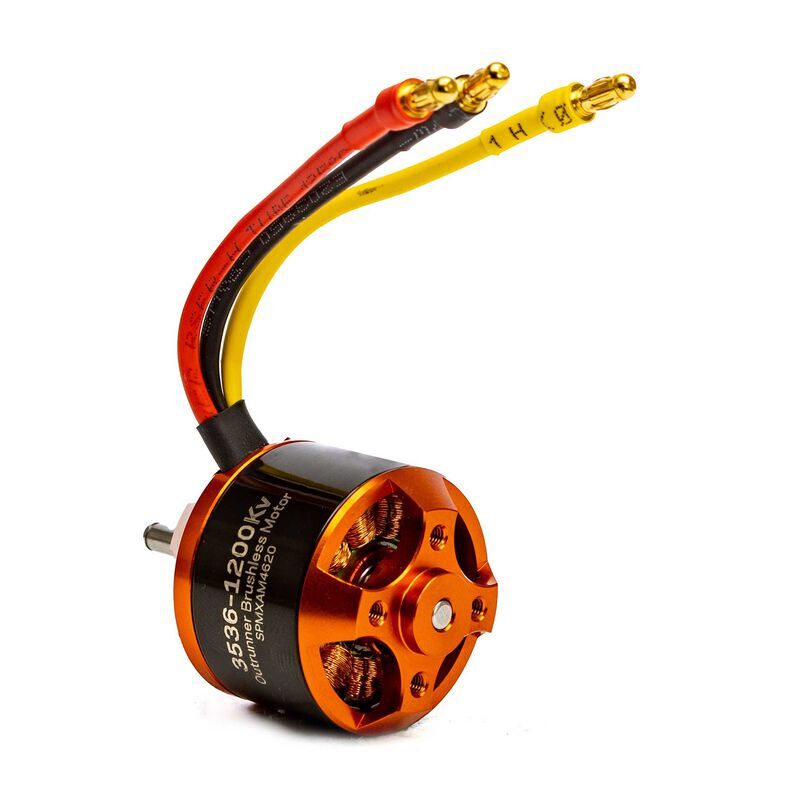

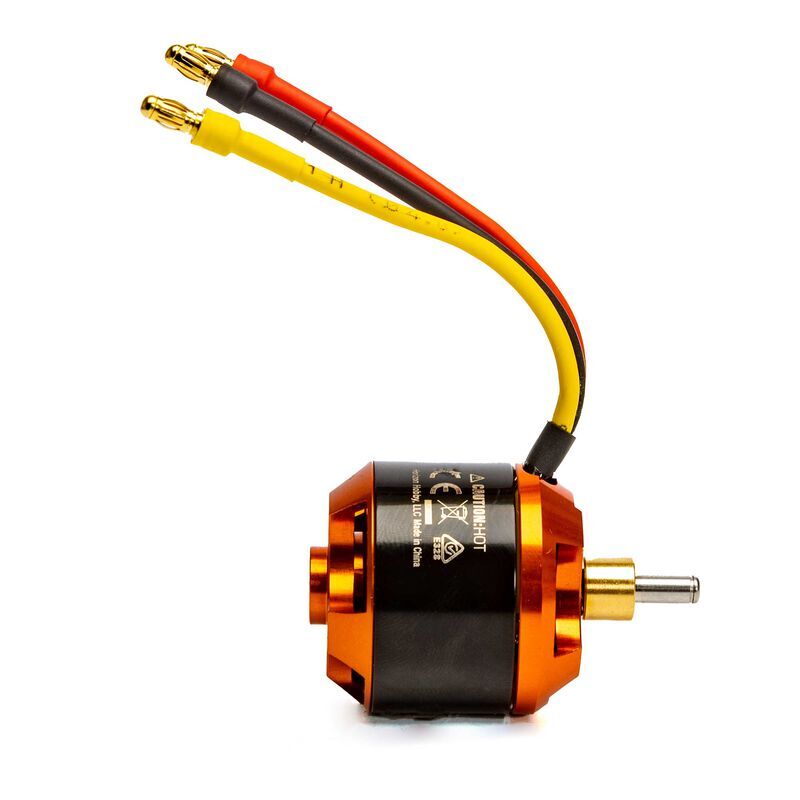

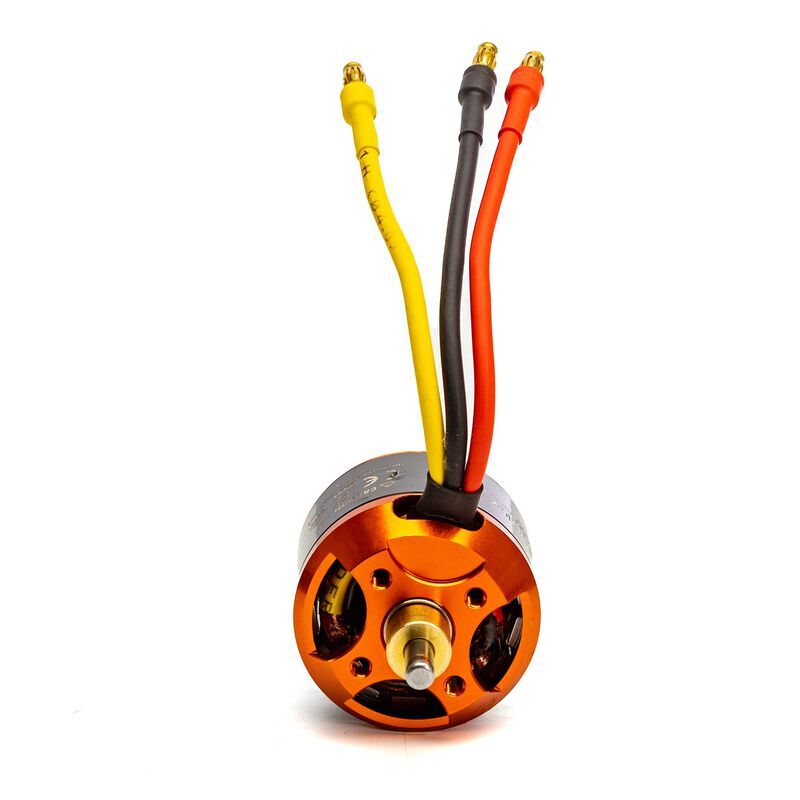

Spektrum Avian 3536-1200Kv Outrunner Brushless Motor
SKU code: SPMXAM4620
Make 4 interest-free payments of $31.25 fortnightly and receive your order now.
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
- Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
- Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
- Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion

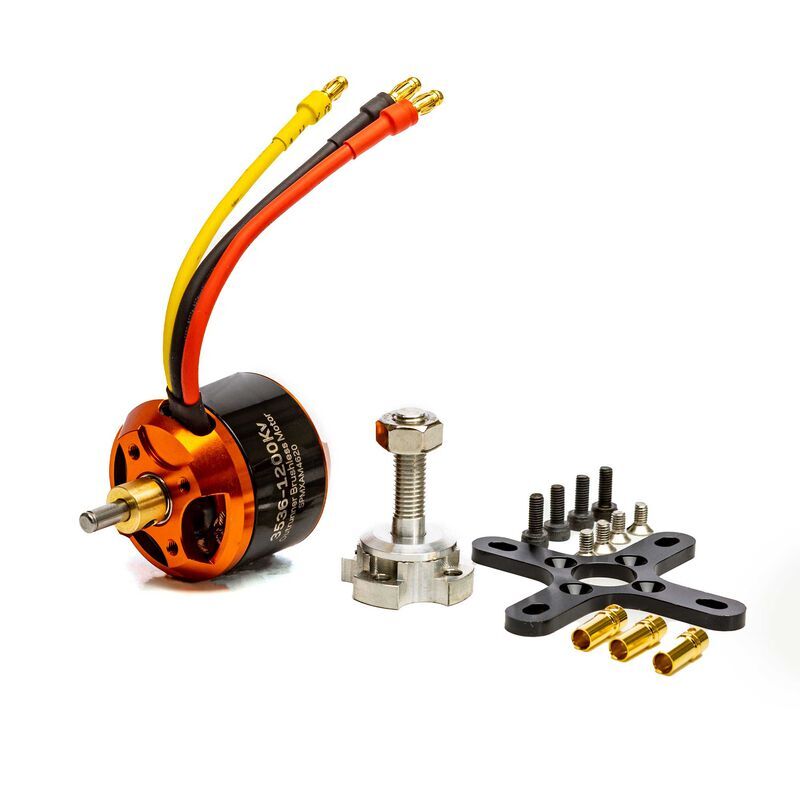

- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 45 amp ESC
- Perfect electric conversion upgrade for .15 size glow combustion power systems
Important Specs
- Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo
- Recommended Propeller Range – 10x7 to 11x7 Electric Prop
- Recommended Model Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs)
- Max Wattage – 310w
- Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)
Product Specifications | ||
---|---|---|
Motor Design | Outrunner | |
Shaft Length | 0.65" (17 mm) | |
Input Voltage | 11.1v - 14.8V / 3-4S LiPo | |
Kv Rating | 1000-1249Kv | |
Motor Output Lead | 3.5 | |
RPM/Volt (Kv) | 1200 | |
Sensor Type | Sensordless | |
Number of Poles | 14 | |
Product Weight | 3.6oz (102g) | |
Recommended Prop Range | 10x7 to 11x7 Electric Prop | |
Shaft Diameter | 0.16" (4 mm) | |
Application | Sport airplanes up to 4lbs (1815g) 3D airplanes up to 2.5lbs (1135g) |
|
Forward | Yes | |
Bearing | Yes | |
Outer Diameter | 1.37" (35 mm) | |
Connector Type | 3.5mm Bullet | |
Motor Class | Small / Indoor | |
Motor Size | 3536-1200Kv | |
Product Length | 1.42" (36 mm) | |
Constant Wattage | 250-499W | |
Maximum Burst Current | 45A | |
Maximum Continuous Current | 35A | |
Motor Type | Brushless | |
Integrated ESC | No |
SKU | SPMXAM4620 |
Barcode # | 0605482086667 |
Brand | Spektrum |
Shipping Weight | 0.2500kg |
Shipping Width | 0.090m |
Shipping Height | 0.060m |
Shipping Length | 0.120m |
Shipping Cubic | 0.000648000m3 |
