Product Details

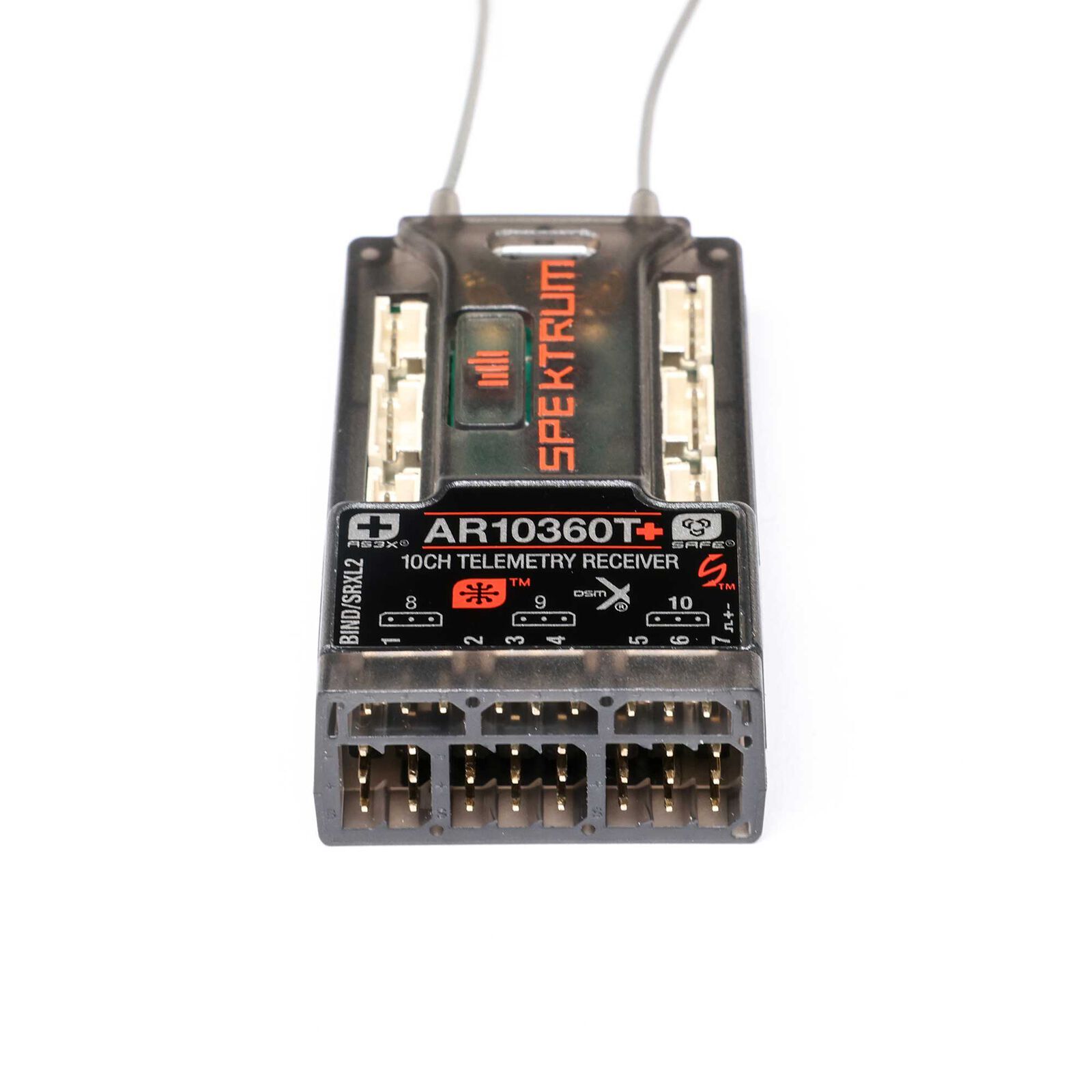

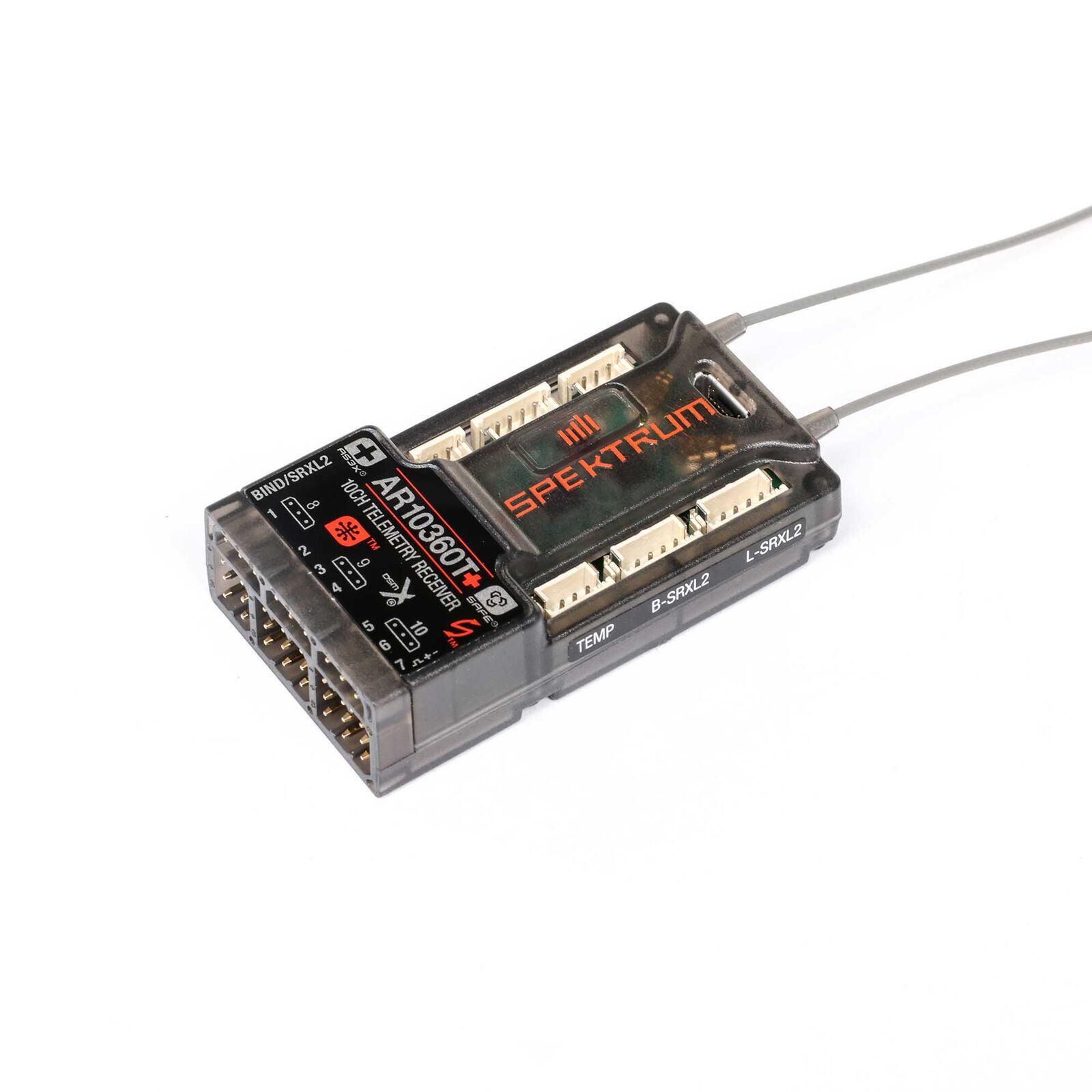

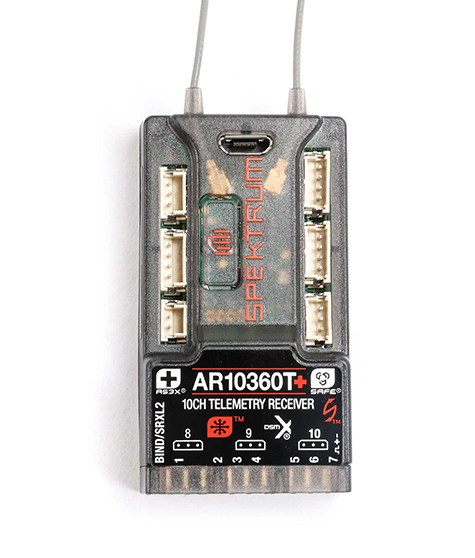

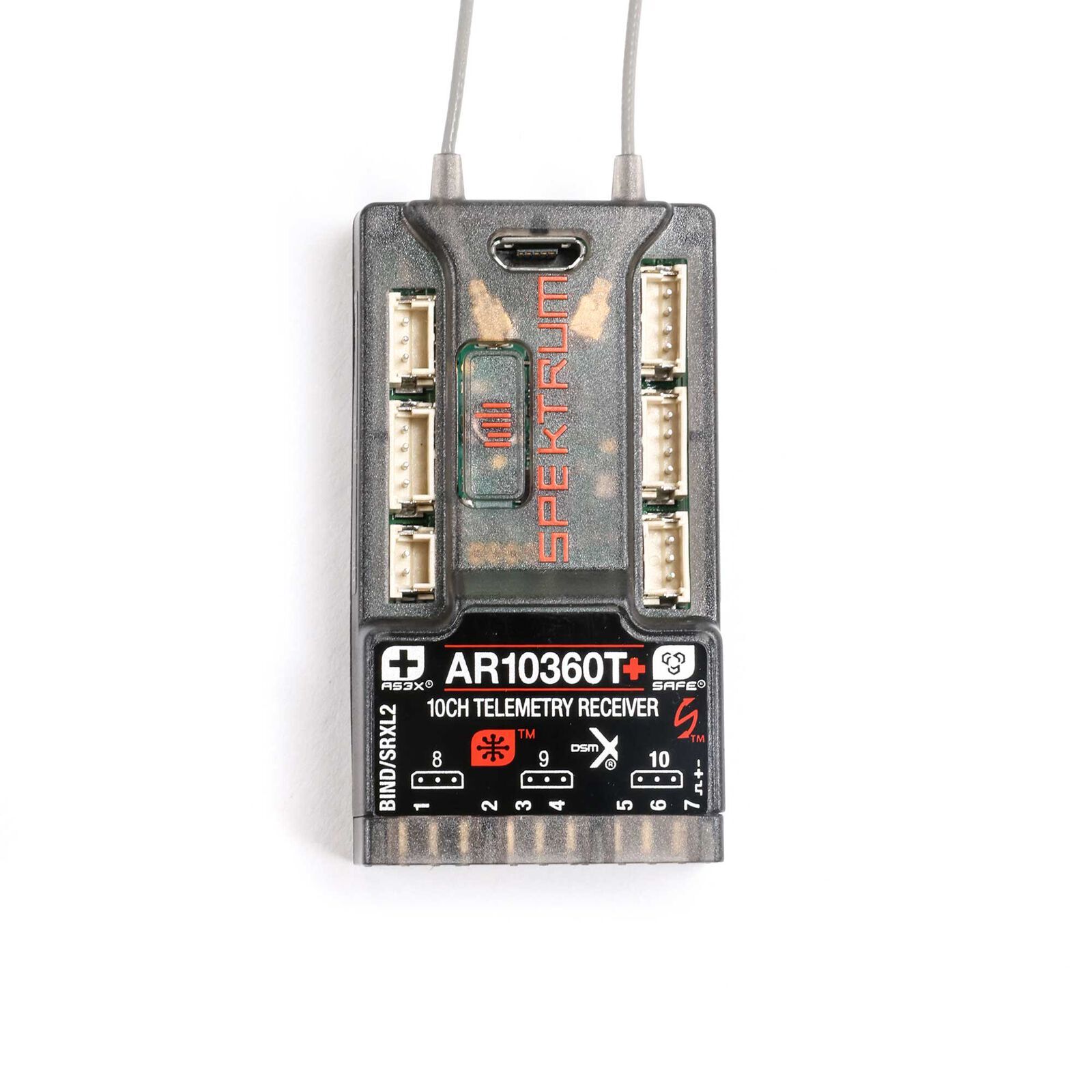

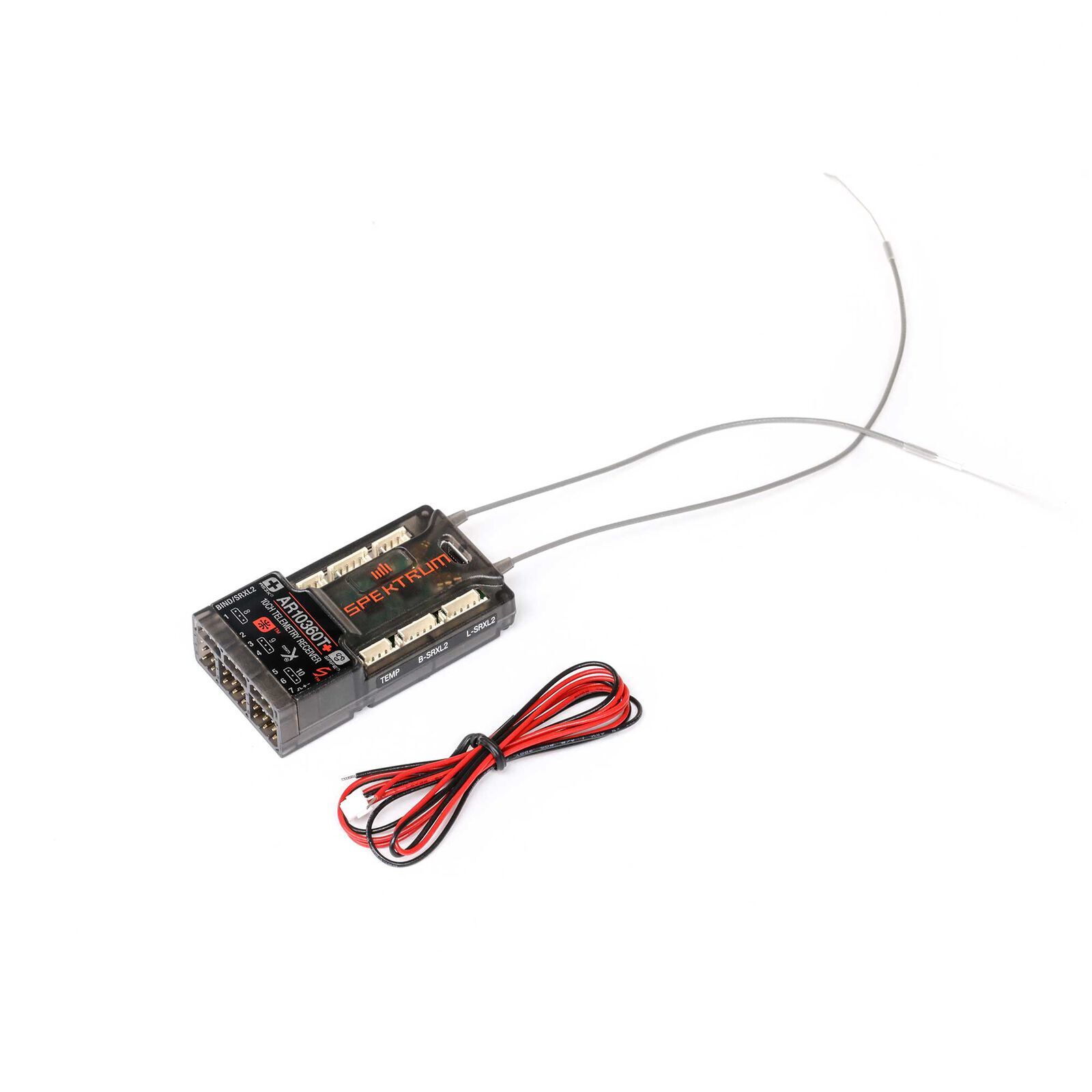

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. This receiver is full-range with built-in AS3X+® and SAFE® stabilization.

In The Box

Needed to Complete
(1) Telemetry Capable DSMX Transmitter
Servo extension(s) may be required

Key Features

Built-in AS3X+ stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro

Exclusive flight control software tuned by expert RC pilots

Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase

Smart Transmitter Model File Download support

Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application

Spektrum™ AR10360T+ Manual

Spektrum AR10360T+ 10-Channel Telemetry Receiver Overview

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.

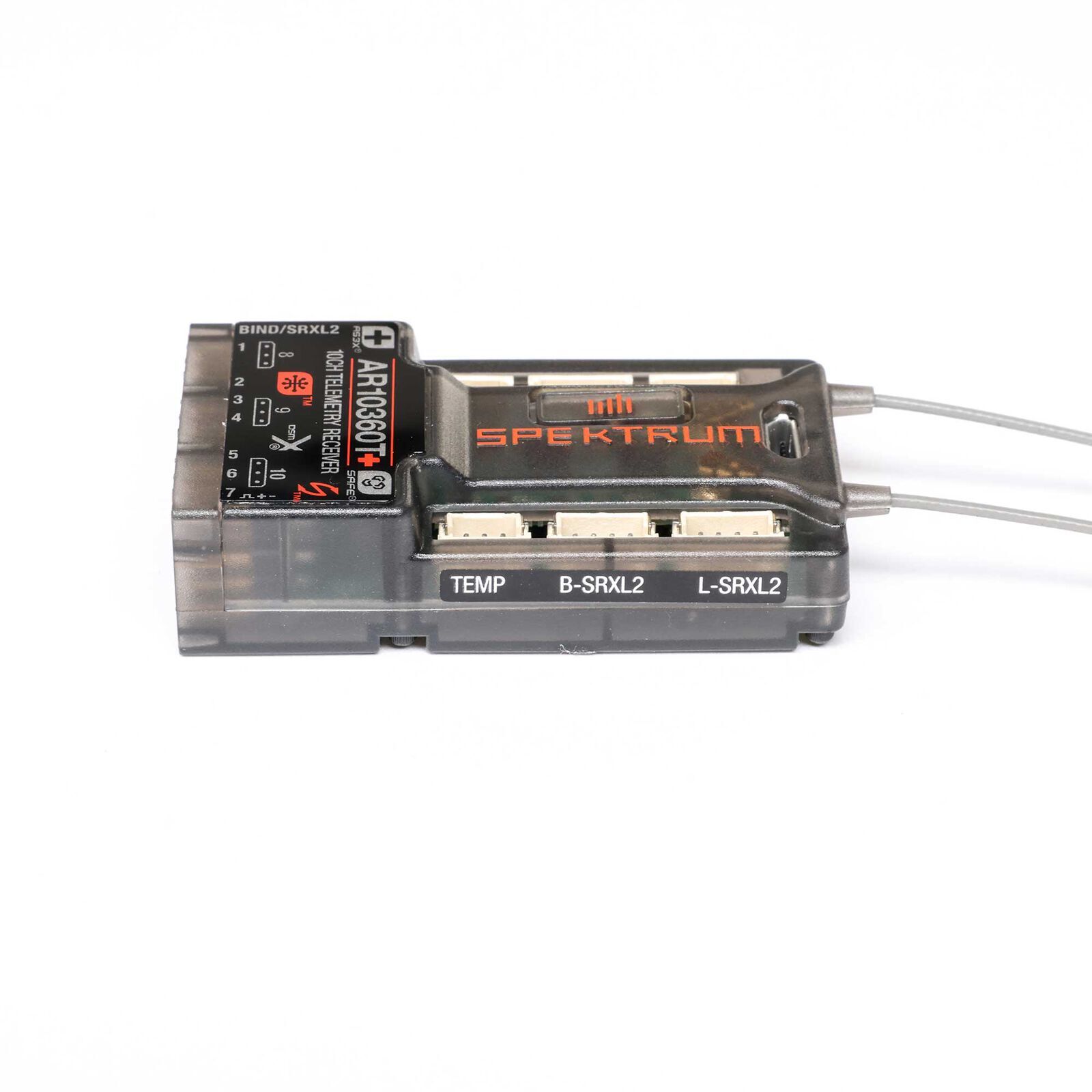

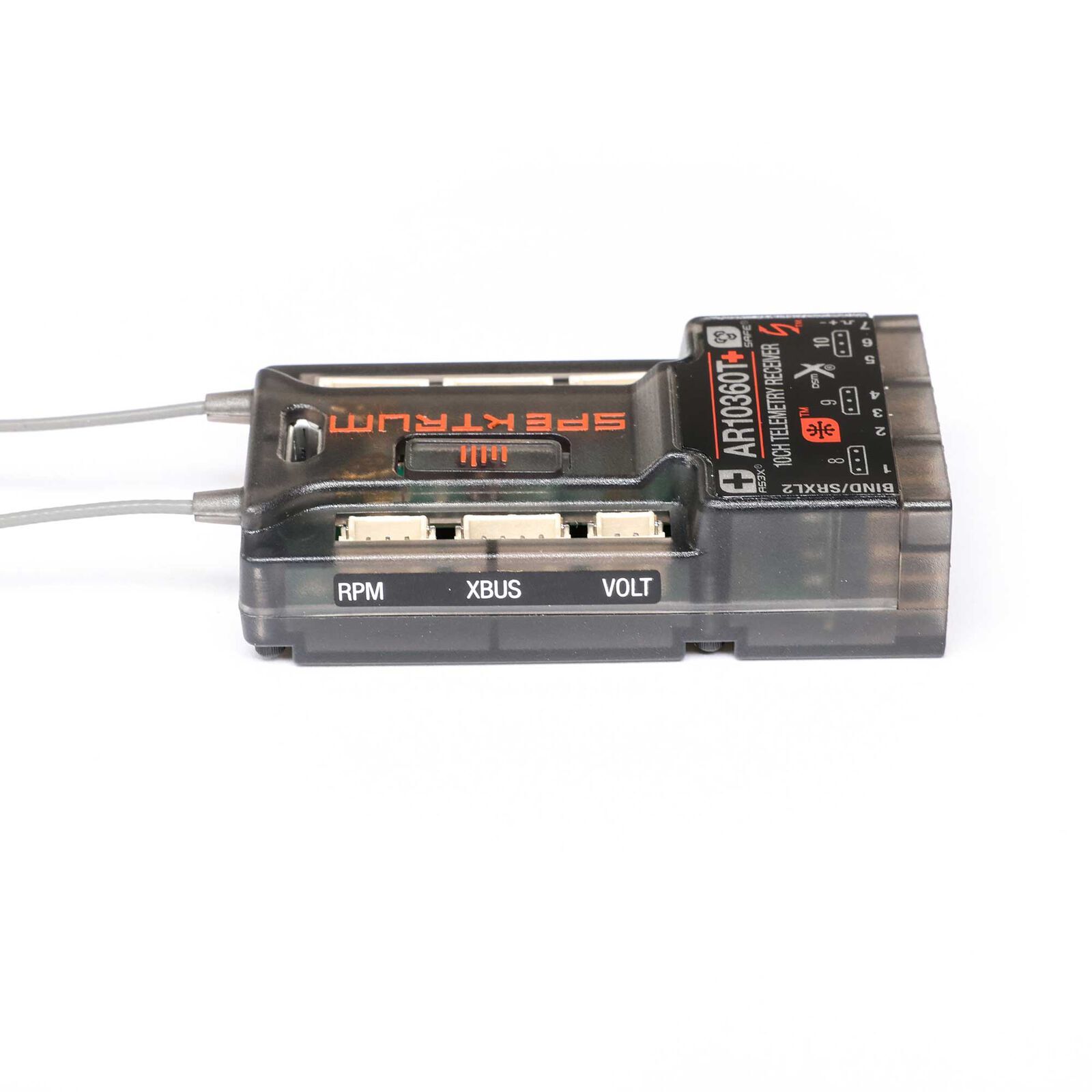

The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.

Go to www.spektrumrc.com for the latest receiver updates.

NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes, including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring Support

SMART TRANSMITTER MODEL FILES SUPPORT

Smart Transmitter Model Files is a new feature on the AR10360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.

FORWARD PROGRAMMING

You can fully configure the AR10360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments. Setup everything from AS3X+ and SAFE to individual failsafe parameters right from your fingertips.

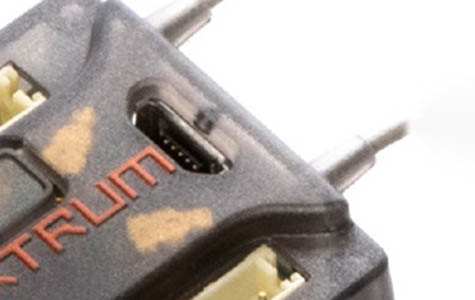

MICRO USB PORT

The AR10360T feature a convenient Micro USB port for updating and model setup sharing. Using a common Micro USB Cable (not included) and the latest version of the Spektrum PC Programmer, users can update the main receiver and any remote receivers that are currently attached to the receiver. Also, with the AR10360T, pilots can easily export, share and upload AS3X and SAFE enabled model presets.

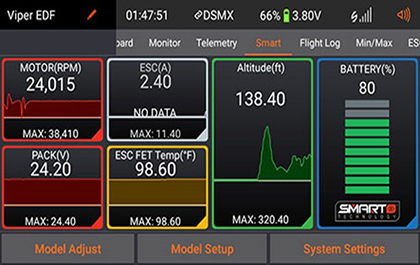

SMART TELEMETRY

Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

SAFE® PANIC RECOVERY

Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

Product Specifications
