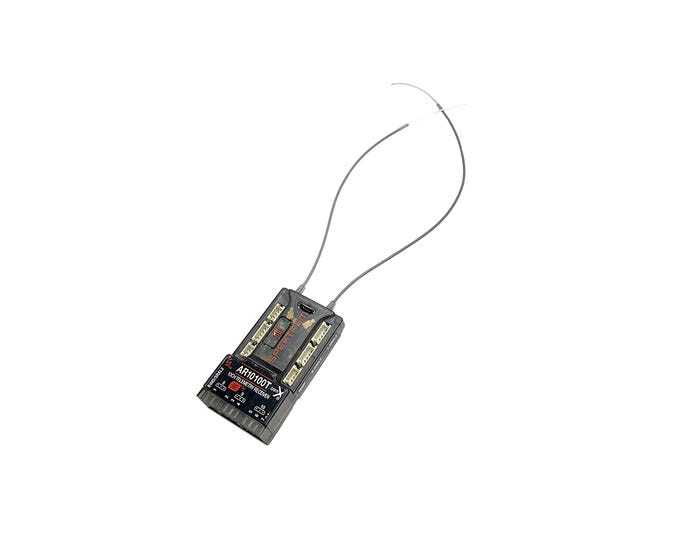

The Spektrum™ AR10100T receiver is a full range 10 channel telemetry receiver featuring DSM® technology. It is compatible with all Spektrum™ aircraft radios that support DSM2® and DSMX® technology. It features an easy to use Bind Button and has a micro USB connector for ease of updating. Up to 2 optional SRXL2 remote receivers can be used. The AR10100T receiver features SMART throttle functionality with compatible AVIAN speed controls. The AR10100T features full-range telemetry and will provide receiver battery voltage, flight log data, and various and altitude data without any additional sensors. The altitude and vertical speed (variometer) sensor (SPMA9589) functions are already integrated in the AR10100T. Additional telemetry devices such as voltage sensors can be connected to the volt port, a temperature sensor can be added in the temp port, an RPM sensor can be added in the RPM port, and XBUS telemetry sensors can be connected through the XBUS connector. Every XBUS telemetry device has two XBUS ports, and XBUS telemetry sensors can be connected in a daisy chain in any order.

Specs

Type    DSM2/DSMX 10 CH Telemetry Receiver
Application   Air
Channels   10
Receivers   1
Remote Receiver (not included)   SRXL2™ Optional Remote Receiver (SPM9747, SPM4651T)
Modulation   DSM2/DSMX
Data Flight Log Compatible   No
Telemetry   Integrated
Failsafe   Yes
Bind Method   Bind Button
Band   2.4GHz
Dimensions (LxWxH)   55 x 30 x 15mm
Weight   0.6 oz (18g)
Input Voltage   3.5–9V
Resolution   2048
Antenna Length   155mm and 186mm
Connector Micro   USB



SKU SPMAR10100T
Barcode # 0605482762585
Brand Spektrum
Shipping Weight 0.4000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
