SKY RC POWER SWITCH, SK-600054-02

SKYRC SK-600054 ON/ OFF Power Switch

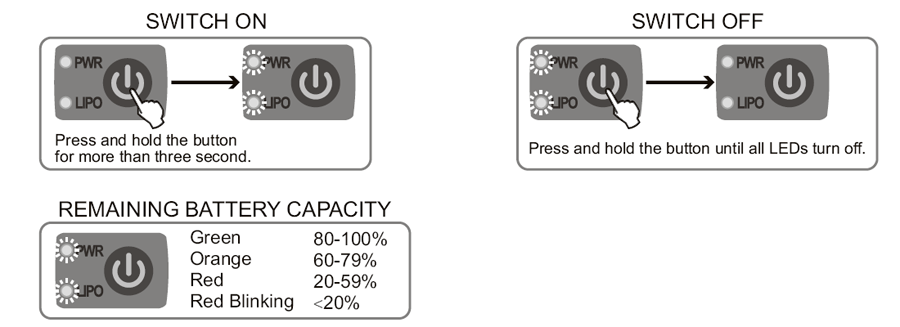

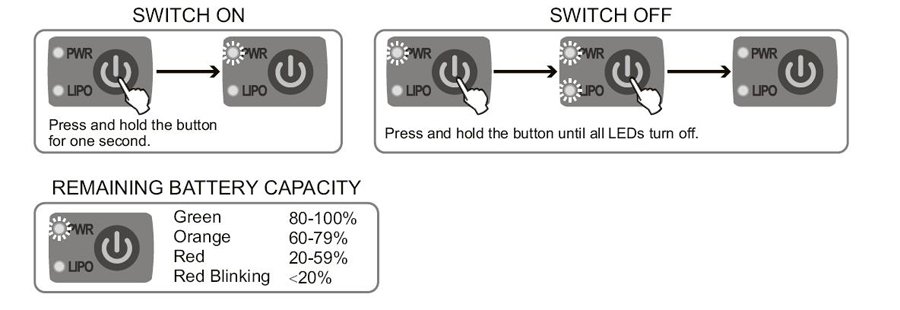

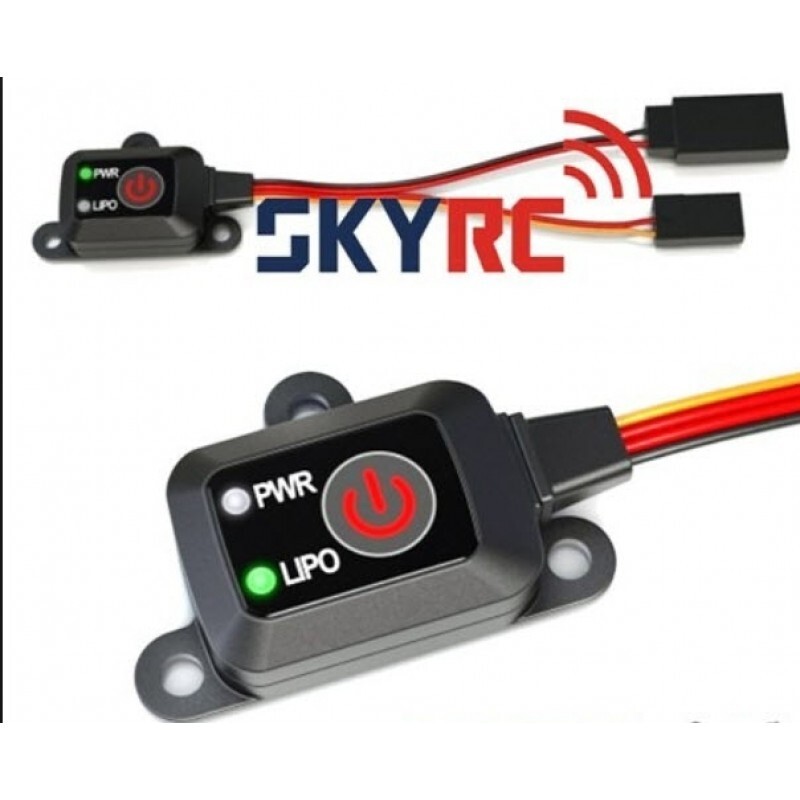

SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model. A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.The sealed unit is plastic and can easily be mounted to the transponder mount of your model or anywhere else you can mount it using double side tape. (Two kinds of bottom covers are included, user can change the bottom cover.) The switch also features a LiPo mode, by turning this on,  the switch unit will auto detect low LiPo voltage and cut off power to protect your LiPo from over discharging. This of course can be turned off,  if you have other safeguards in place or using NiMH/NiCad battery. Beside that,  the power switch informs you about the remaining capacity and conditions of your battery pack.

Specifications:

  • Input Voltage: 4-12V
  • Battery Mode: 1. NiMH/NiCad - 2. LiPo
  • Max. Current: 10Amp
  • Low Voltage Protection: 6.2V (LiPo)
  • Operating Temperature: 0-50°C
  • Weight: < 7g
SKU SK-600054
Barcode # 6930460002112
Brand SKY RC
Shipping Weight 0.1000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
