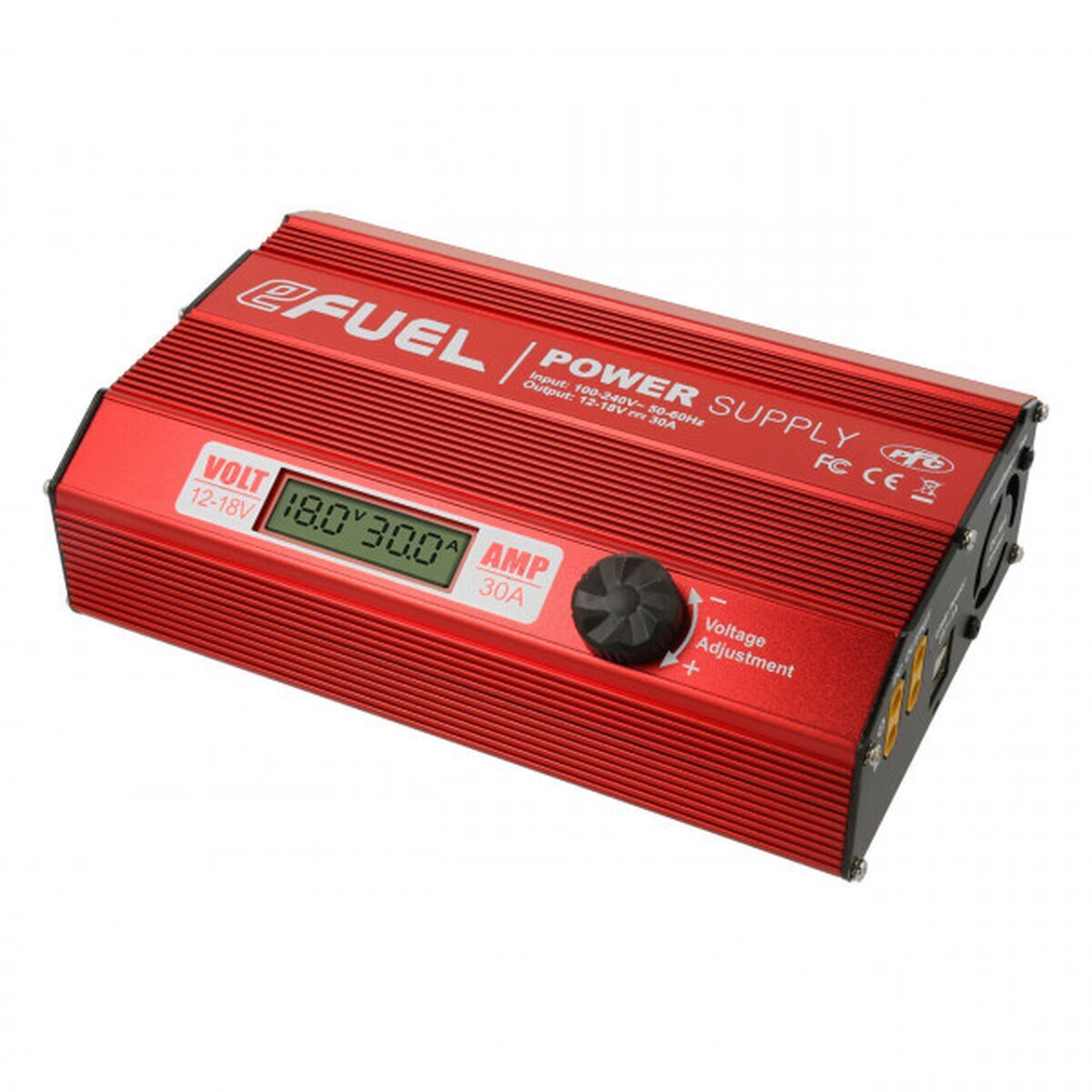

SkyRC eFUEL SK-200013 30A DC 240V AC Switching Power Supply
SKU code: SK-200013
Make 4 interest-free payments of $49.75 fortnightly and receive your order now.
Switching power supply eFuel with 30 Amp and from 12-18 Volt adjustable
Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.
FEATURES

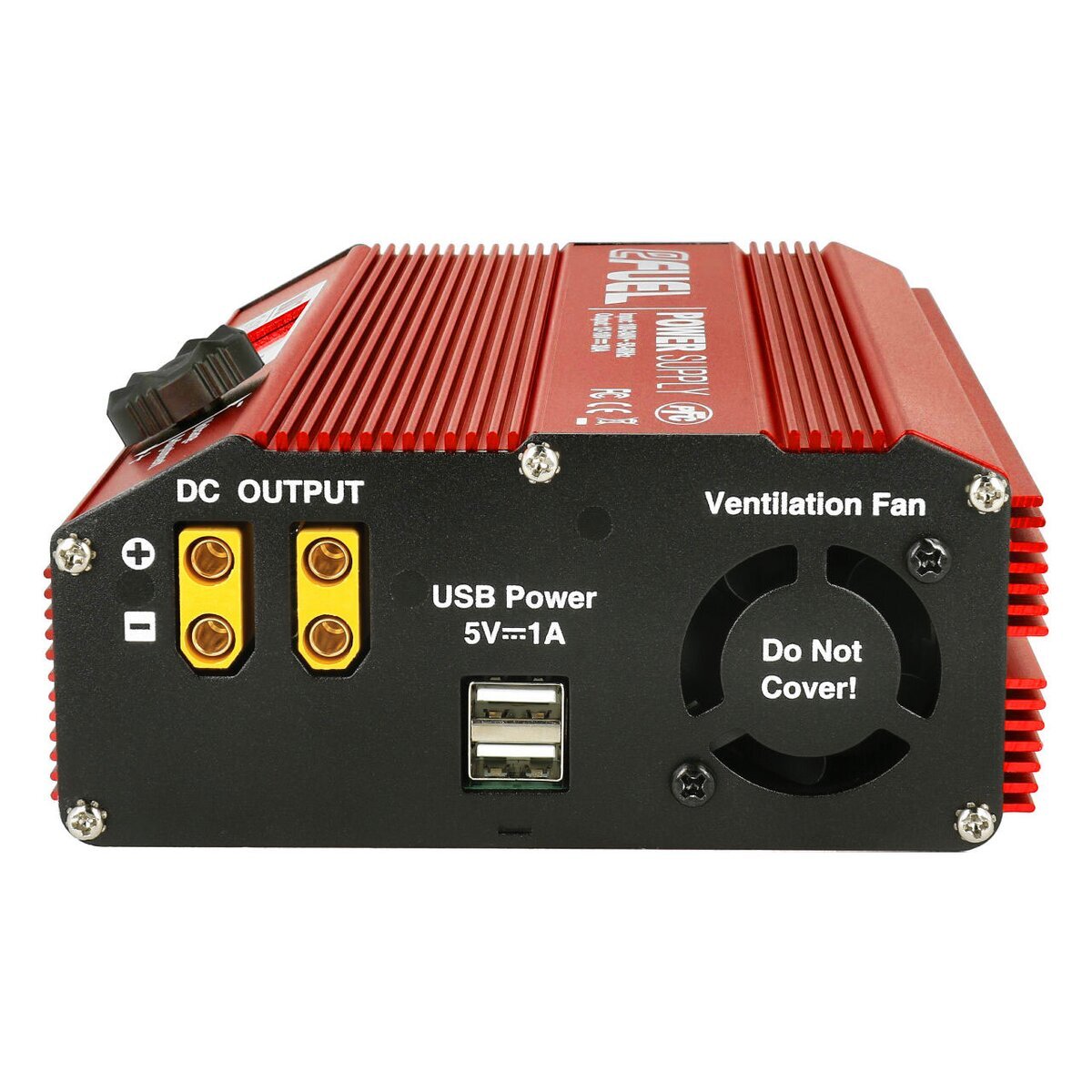

- Two DC power outputs, up to 30 amperes
- Output voltage adjustable 12-18V
- Large LCD indicates voltage and current amperes output
- Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection
Technical Data:
- Voltage: 100-240V AC
- Input AC Frequency: 50-60Hz
- Output Voltage: 12-18V DC±0.5V
- Output Current: 30A±1A
- Current Overload Protection: =31A 500MS
- Input Fuse: 10A Fuse
- LCD Display:
- Voltage Precision ±0.3V
- Current Precision ±0.3A
- Output Voltage Ripple: < 150mV
- Power Efficiency: 89%
- Power Factor: > 0.98
- Over Temperature Protection: <65?
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40?
- Operating Humidity: 0-90%
- Dimensions (L*W*H): 218x139x59.5mm
- Net weight: 1.62kg
SKU | SK-200013 |
Barcode # | 6930460005908 |
Brand | SKY RC |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.120m |
Shipping Length | 0.350m |
Shipping Cubic | 0.008400000m3 |
