Overview

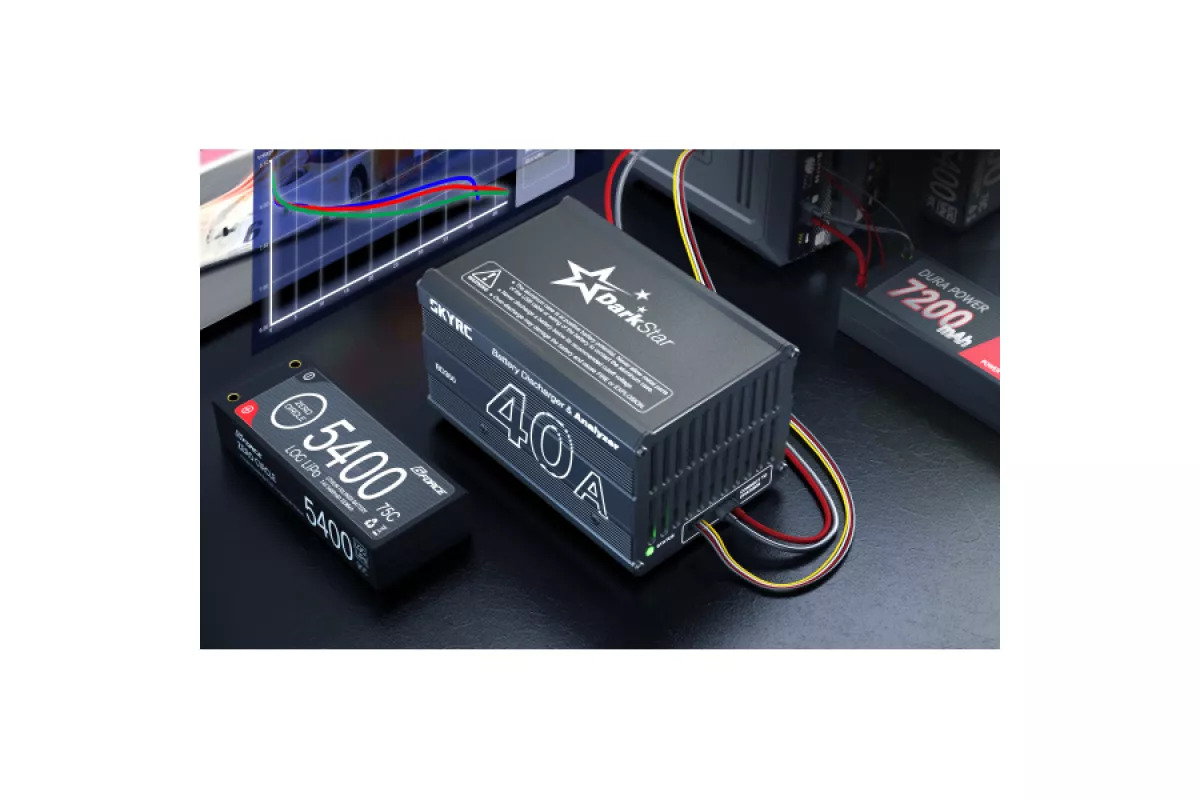

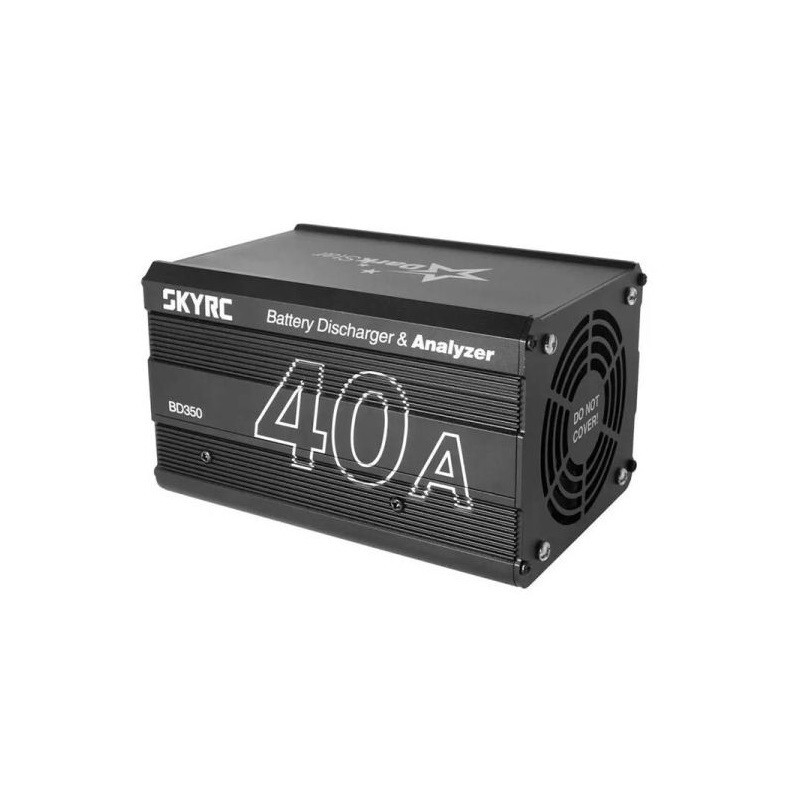

When connected to a suitable SkyRC charger, the BD350 discharger can be used to discharge a wide variety of RC batteries with ease. A discharge current of up to 40A is possible while the possible maximum power lies around 350W. If the "Charge Master" computer software is also being used, the BD350 becomes a powerful measuring instrument, as it allows the exact measurement of battery capacity and performance. In this way, the best batteries can be identified quickly and can therefore be prepared for the next race.

Note

Only the T1000 charger (SK100182-01)* is currently supported. Other compatible devices are already being planned by SkyRC. The BD350 is not a stand-alone discharger.

Features

• Fan housing made of heat-resisting material
• Twin super big cooling fans with high rotation speed and good airflow
• Reasonable design with most cooling efficiency
• Easy to install and remove
• Two zip ties for easy and firm fastening

Specifications

• Working Voltage: 5V (DC)
• Discharge Power: 350W
• Discharge Current: 0.1 - 40.0A
• Over Temperature Protection: >95°C
• Working Temperature: 0 ~ 40°C
• Working Humidity: 0 ~ 75%
• Weight: 1224g
• Dimensions: 157 x 105 x 93mm
