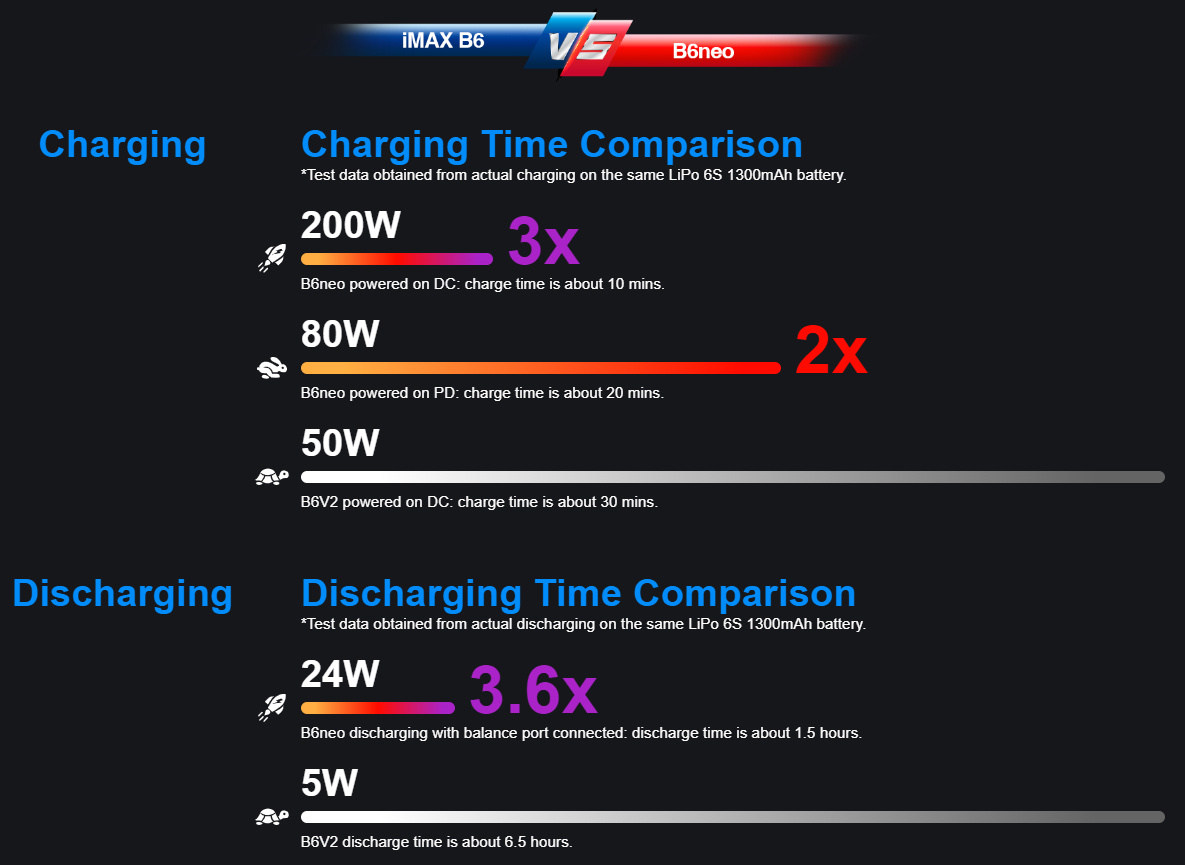

SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and now we are proud to introduce the next-generation B6neo. Almost 1/4 the size of its predecessor, smaller than credit card, B6neo still packs a powerful punch. Unlike the rugged aluminum case of the B6, the B6neo features stunning color schemes in sleek plastic cases. When powered by DC, the B6neo can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, which can only charge up to 50W on DC and does not support PD input - a feature that has become the de-facto must-have in the household. Once again, SkyRC has raised the bar for RC charging!

Don't let its small size deceive you - this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the trendy type-C PD power, it effortlessly fills up to 80W. With its tiny footprint, the B6neo exceeds expectations in every way! Experience the ultimate combination of power and portability with the B6neo. What more could you ask for from such a compact powerhouse?

Specifications
Shell material: PC-ABS V0
Size: 70*50*32mm
Weight: 82g

Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128xRGBx160 Pixel
Number of Colors: 262K

Power
DC Input Voltage: 10-28.0V

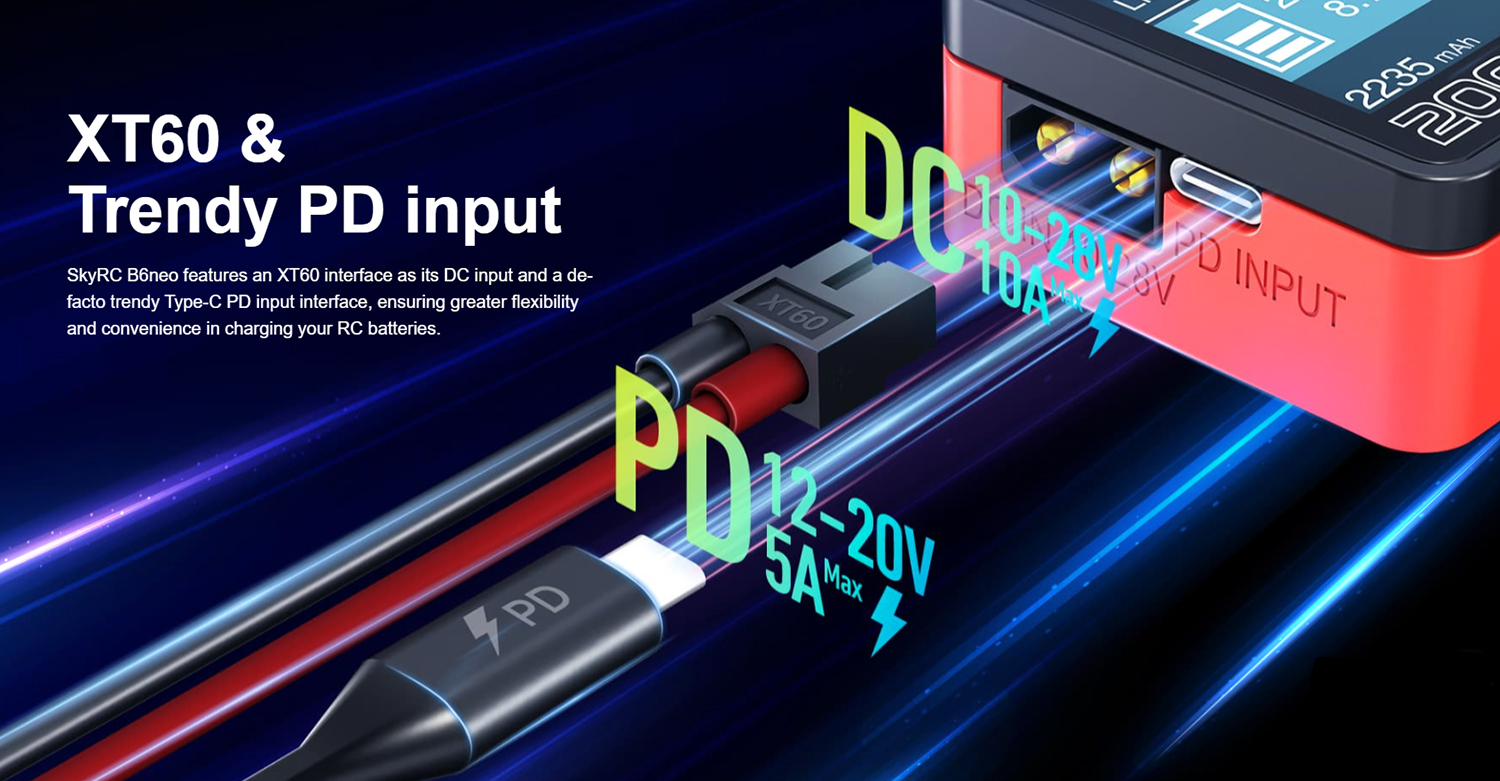

PD3.0/QC Input Voltage : 12v-20v

Charger power
DC: 200W
PD: Max. 80W (20V, 5A)

Discharge power
Max. 24W based on 6S(4.2V/S)

Battery
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S

Charge and Discharge
Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-10.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV: Max. 500mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge

SKU SK-100198-02
Barcode # 6930460008015
Brand SKY RC
Shipping Weight 0.1500kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.100m
Shipping Cubic 0.000480000m3
