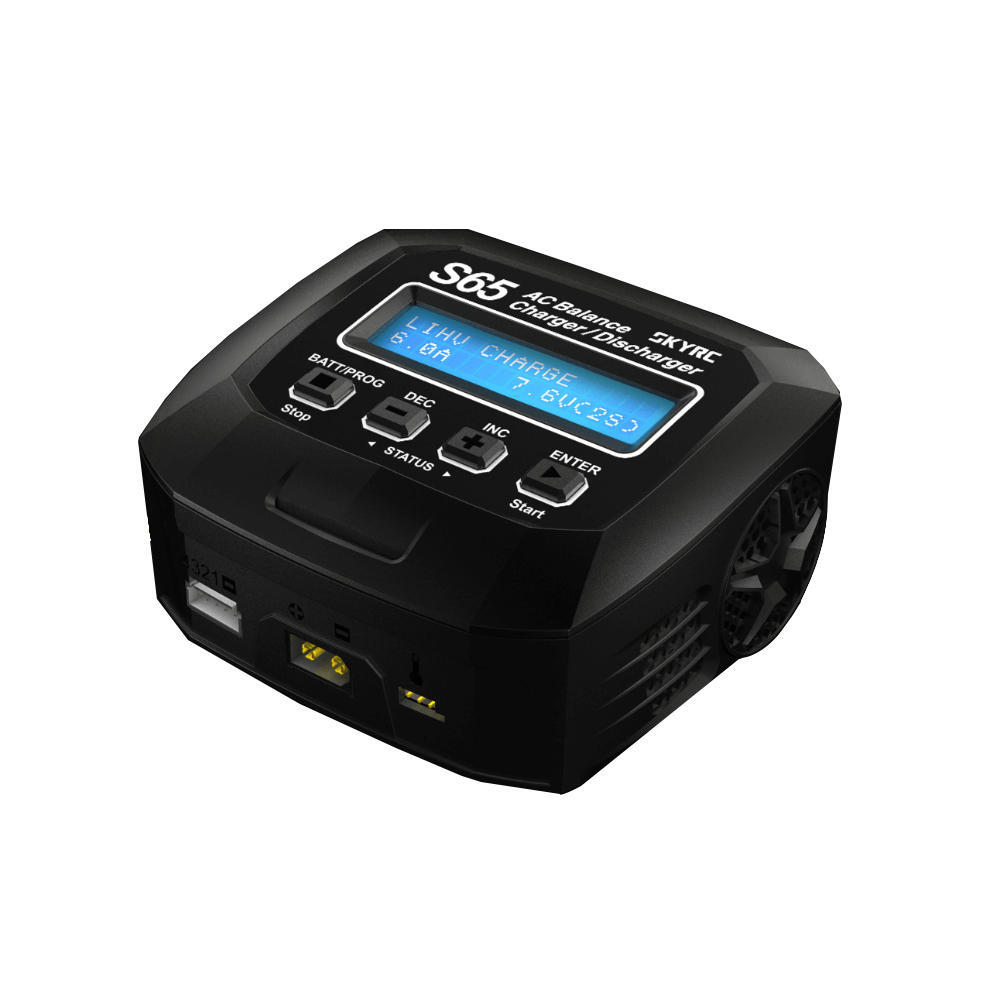

S65 AC Balance Charger / Discharger 65W 6AMP Multi Chemistry

SkyRC S65 AC Professional Charger/Discharger stands out for its angular design and compact size by packing a big power of 65 watts into such a small case. Compatible with a full range of the most popular battery types, including the new generation LiHV, the S65 keeps your batteries powered up with 6-amps of charging power.

AGM & Cold Charge Modes for PB Battery
SkyRC S65 can charge AGM battery and also can be used for charging PB battery at very low temperatures.

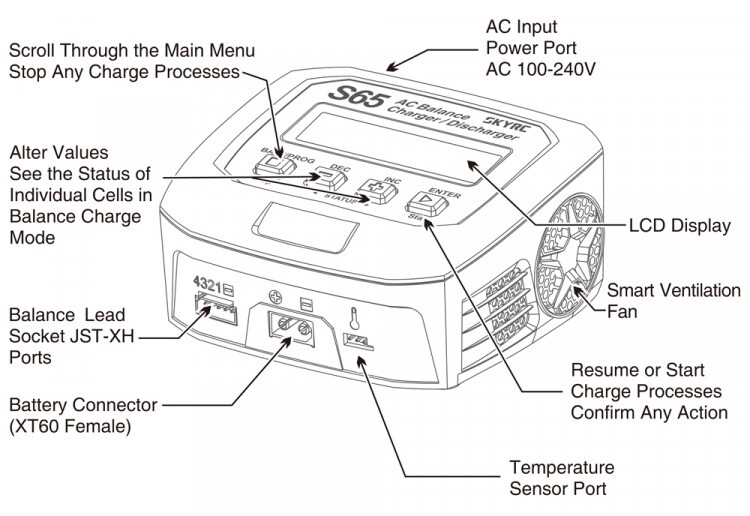

Embedded XT60 Battery Connector
By embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

Smart & Efficient Cooling System
Temperature controlled 7000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

Higher Accuracy with Three Decimals for Battery Voltage
The charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring.

Specs:
  • LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. For Pb battery, AGM Charge and Cold Charge mode are available.
  • Input voltage: AC 100-240V
  • Circuit Power: Max Charge: 65W
  • Max Discharge: 10W
  • Charge Current Range: 0.1-6A
  • Disharge Current Range: 0.1-2A
  • Current Drain for Balancing Port:Max 200mA
  • Trickle Charge Current: NiMH/ NiCd 50-300mA & OFF
  • LiPo/LiFe/LiIon/ LiHV Cells: 2-4S
  • MiMH/ NiCd Cells: 6-8S
  • Pb Cells: 6-12V
  • Firmware Upgrade: NO
Specification:

Input Voltage: AC 100-240V
Charge Wattage: 65W
Discharge Wattage: 10W
BatteryTypes/Cells:
LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb: 3-6 cells
Battery Capacity Range: NiMH/NiCd:100-50000mAh
                                        LiPo/LiIon/LiFe/LiHV:100-50000mAh
                                        Pb: 100-50000mAh
Charge Voltage: NiMH/NiCd: Delta peak detection
                           LiPo: 4.18-4.25V/cell
                           LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell
                           LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage:NiMH/NiCd:0.1-1.1V/cell
                                          LiPo:3.0-3.3V/cell
                                          LiFe:2.6-2.9V/cell LiIon: 2.9-3.2V/cell
                                          LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-6.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 2-4 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Packaging Included:

1X SKYRC S65 Charger (Requires charge cable)

SKU SK-100152
Barcode # 6930460005953
Brand SKY RC
Shipping Weight 0.8000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002250000m3
