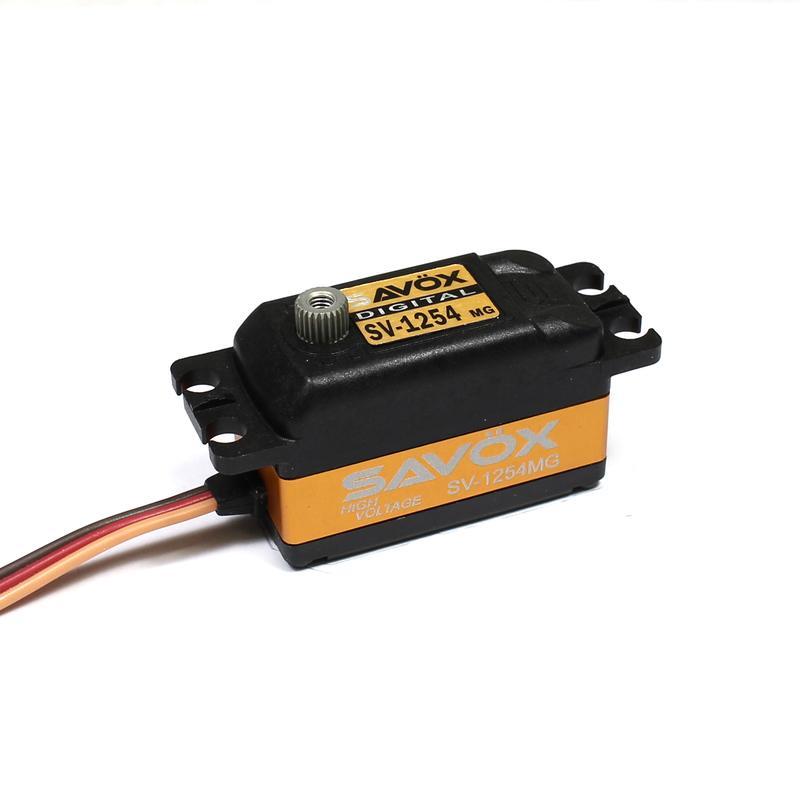

The SV-1254MG servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

Features:

• Steel gear train provide durability against heavy use.
• Capable of HV operation.
• Standard size performance in a low profile package.
• Ideal for 1/10 on road and other applications where space is tight.

Specifications:

• Torque @6v - 12.0kg/166.6oz-in
• Torque @7.4v - 15.0kg/208.3oz-in
• Speed @6v - 0.11 sec/60 deg
• Speed @7.4v - 0.085 sec/60 deg

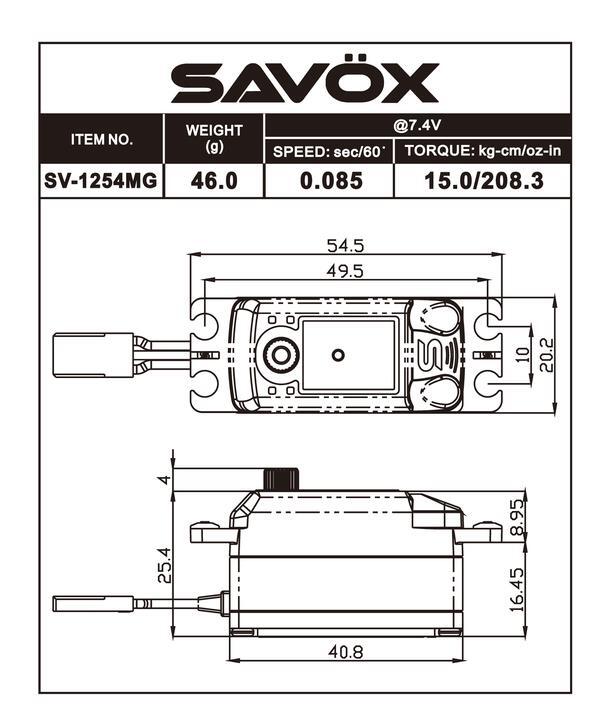

• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 46.0g

Technical Details

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 5200mA @6.0V, 6400mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 900 → 2050 µ second
• Maximum Travel: Appx 160° (700 → 2300 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
