SV-1274MG

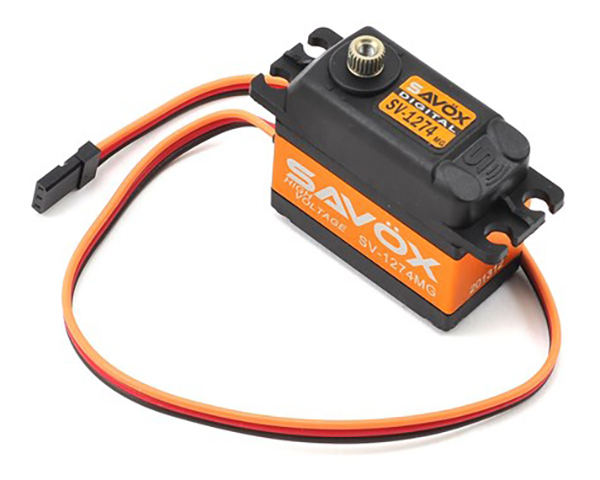

Savox - SV-1274MG Digital High Voltage Coreless Motor Servo, Metal Gear

Features:
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Metal gears

Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Servo Type / Size: Standard
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 7.4V: 0.042 Sec/60°
Torque kg/cm @ 7.4V: 9.0 Kg/cm
Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 38.5 mm
Weight (g): 61.0 g
Connector type: JR
Spline size: 25T Spline

SKU SAV-SV1274MG
Barcode # 4710006992396
Shipping Weight 0.5000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000288000m3
