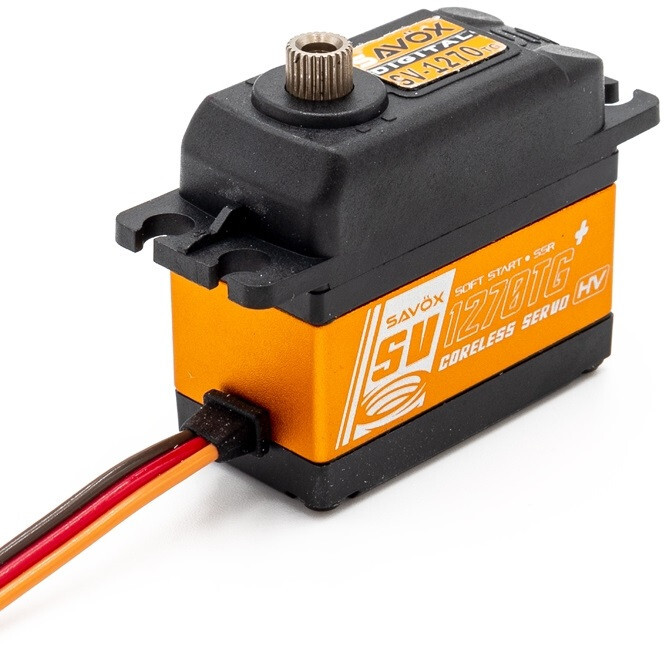

Servo SAVOX SV-1270TG+

Features

The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications."Plus" series servos feature Soft Start and Sanwa SSR compatibility.

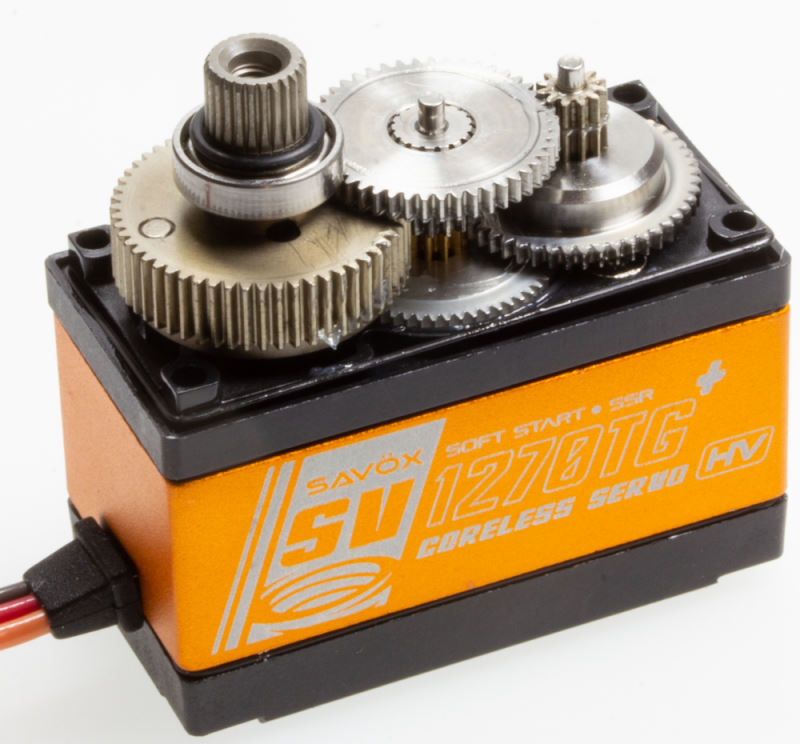

Super strong, precision made titanium gears provide durability that will survive heavy use.Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications. The servo that racers desire.

Specifications:

• Torque @ 7.4v - 40.0kg/555.5oz-in

• Torque @ 8.4v - 45.0kg/624.9oz-in

• Speed @ 7.4v - 0.11 sec/60 deg

• Speed @ 8.4v - 0.10 sec/60 deg

Product description and features

New + version with softstart, Sanwa SSR mode

Powerful digital servo, ideal for wing models, robust low-backlash titanium gearbox

High-voltage digital servo 4,8-8,4V, operation with 2s LiPo

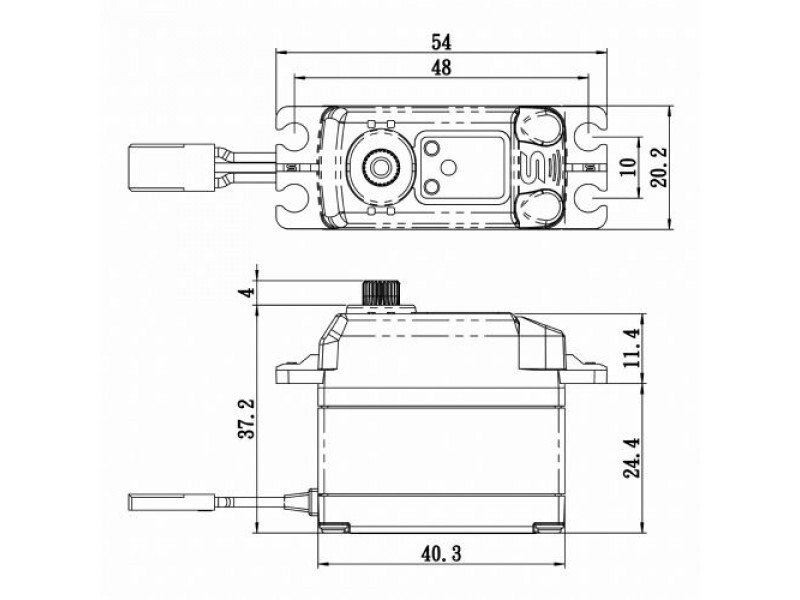

Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm Weight: 64 grams

0.14/0.10 sec/60 degrees u. 30/45 kg*cm at 6.0/8.4 volts

The SV-1270TG+ is a powerful servo of the standard size which is very well suited for use in wing models and it can also be used in RC cars or as cyclic swashplate servo for scale helicopters up to the 700 class.

The new + version of the well-known SV-1270TG+ servo differs minimally from its predecessor both optically and technically. A soft start which moves the servo slowly into the start position when switched on and the Sanwa SSR mode distinguish the + version.

The technical data of the servo leaves nothing to be desired: 0.14/0.10 sec/60 degrees and 30/45 kg*cm at 6.0/8.4 volts.

Drive frequency up to 333Hz, centre pulse 1520us

Like all HV servos from Savöx, the SV-1270TG+ can be operated with up to 8.4V!
