SV-0320

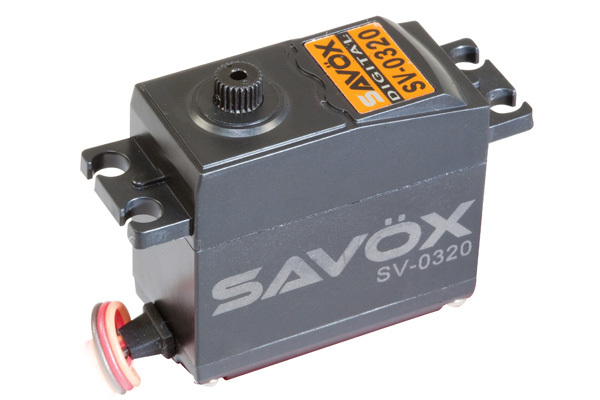

Savox - SV-0320 Digital High Voltage DC Motor Servo, Composite Gears

Features:
- Leading edge digital servo technology
- Strong 3-Pole Brushed motor
- Accurate and fast response
- Fine resolution
- Composite case
- Ball beared
- High Impact Composite gears

Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Servo Type / Size: Standard
Motor Type: Brushed 3-Pole Motor
Gear Material: composite Gears
Ball Beared: Ball Beared
Servo Case: Composite
Speed 60°/Sec @ 7.4V: 0.13 Sec/60°
Torque kg/cm @ 7.4V: 6.0 Kg/cm

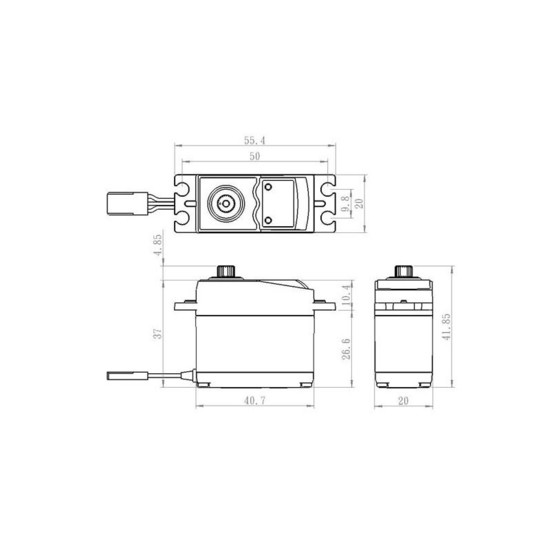

Length (mm): 40.7 mm
Width (mm): 20.0 mm
Height (mm): 37.0 mm
Weight (g): 46 g
Connector type: JR
Spline size: 25T Spline


SKU SAV-SV0320
Barcode # 4710006994628
Brand Savox
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
