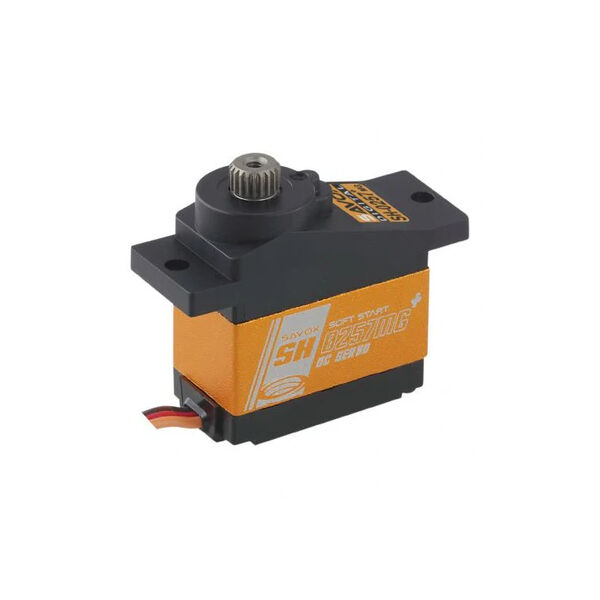

Savox SH0257MGP - Micro 2.2kg Digital MG Servo w/ Soft Start
SKU code: SAV-SH0257MG
Make 4 interest-free payments of $8.75 fortnightly and receive your order now.
The Savox SH-0257MG Plus metal-gear, high-torque, digital, micro servo produces as much output torque as larger servos, but without sacrificing speed.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features
- Metal gear train ensures durability and longevity.
- Aluminum middle case allows for cooler operating temperatures.
- Ideal for small planes, and 450 size helicopters.
Specifications
Torque @ 4.8v - 1.8kg/25.0oz-in
Torque @ 6v - 2.2kg/30.6oz-in
Speed @ 4.8v - 0.13 sec/60 deg
Speed @ 6v - 0.09 sec/60 deg

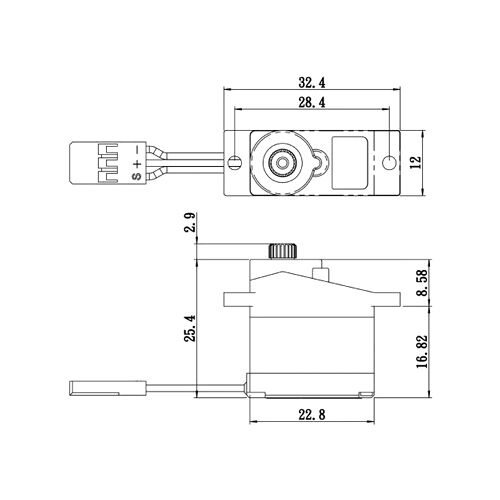

Dimensions L x W x H (mm): 22.8 x 12.0 x 25.4
Weight: 14.0g
Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 1BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 700 → 2300 µ second
Maximum Travel: Appx 150° (700 → 2300 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
SKU | SAV-SH0257MG |
Barcode # | 4710006994277 |
Brand | Savox |
Shipping Weight | 0.0300kg |
Shipping Width | 0.070m |
Shipping Height | 0.030m |
Shipping Length | 0.130m |
Shipping Cubic | 0.000273000m3 |
