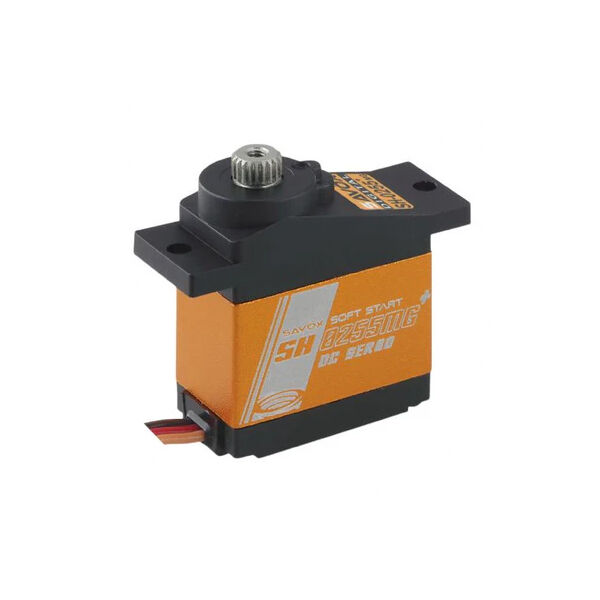

The Savox SH-0255MG Plus micro, metal-gear, digital servo has plenty of torque to match a much larger standard size servo and outperform other competitive micro-size servos.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.

Specifications
Torque @ 4.8v - 3.1kg/43.1oz-in
Torque @ 6v - 3.9kg/54.2oz-in
Speed @ 4.8v - 0.16 sec/60 deg
Speed @ 6v - 0.13 sec/60 deg

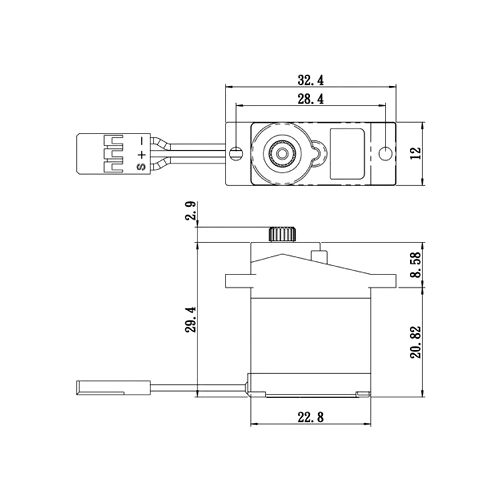

Dimensions L x W x H (mm): 22.8 x 12.0 x 29.4
Weight: 15.8g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @4.8V, 240mA @6.0V
Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 1BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 750 → 2250 µ second
Maximum Travel: Appx 145° (750 → 2250 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed

SKU SAV-SH0255MG
Barcode # 4710006994192
Brand Savox
Shipping Weight 0.0300kg
Shipping Width 0.070m
Shipping Height 0.030m
Shipping Length 0.130m
Shipping Cubic 0.000273000m3
