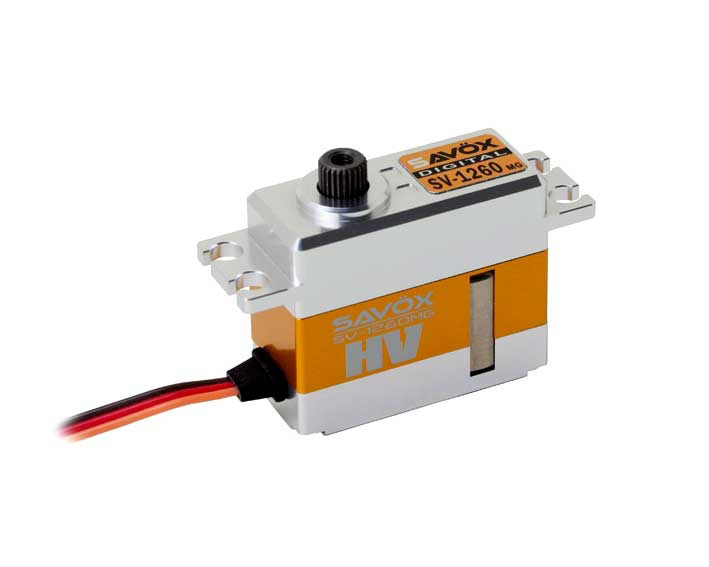

SV-1260MG
Savox - SV-1260MG Digital High Voltage Coreless Motor Servo, Metal Gear

Features:
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Metal gears

Tech Specs

Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Servo Type / Size: Midi
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Servo Power - Torque Kg/cm: 10 - 15 Kg/cm
Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°

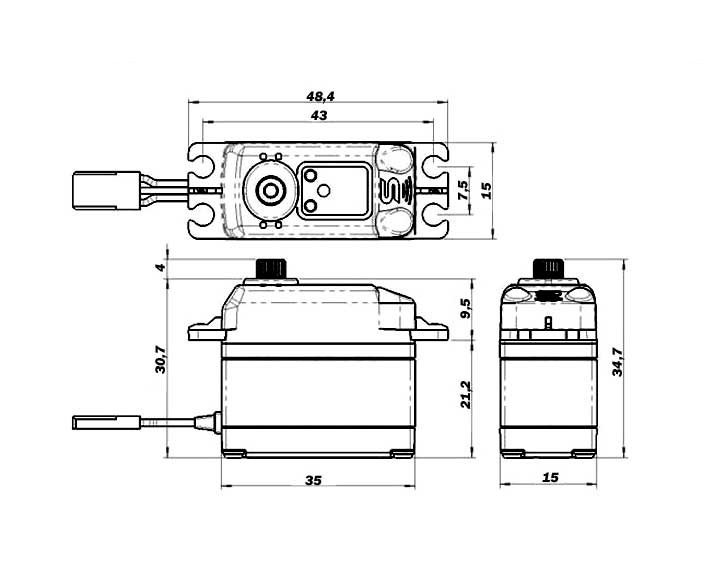

Length (mm): 35.0 mm
Width (mm): 15.0 mm
Height (mm): 30.7 mm
Weight (g): 29.5 g
Speed 60°/Sec @ 7.4V: 0.055 Sec/60°
Torque kg/cm @ 7.4V: 12.0 Kg/cm
Connector type: JR
Spline size: 25T Spline
SKU SAV-SV1260MG
Barcode # 4710006993027
Brand Savox
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
