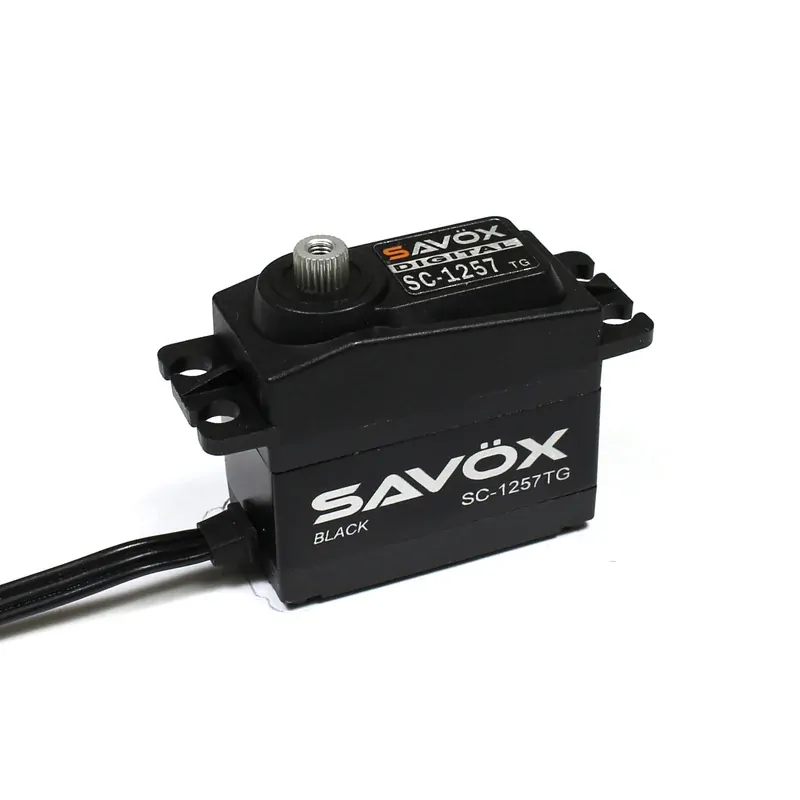

The SC-1257TG-BE is a high speed standard servo that provides a fast transit for those looking to get the ultimate in speed. With an all black color design, the SC-1257TG-BE provides a stealth look in RC cars.

Features

• Extremely strong titanium gears ensure long-life, durability, and light weight.
• Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
• Sleek black design with laser etching and a shorter 200mm black lead wire.
• Aluminum middle case allows for cooler operating temperatures.

Specifications
Torque @ 4.8v -8.0kg/111.1oz-in
Torque @ 6v - 10kg/138.9oz-in
Speed @ 4.8v - 0.09 sec/60 deg
Speed @ 6v - 0.07 sec/60 deg

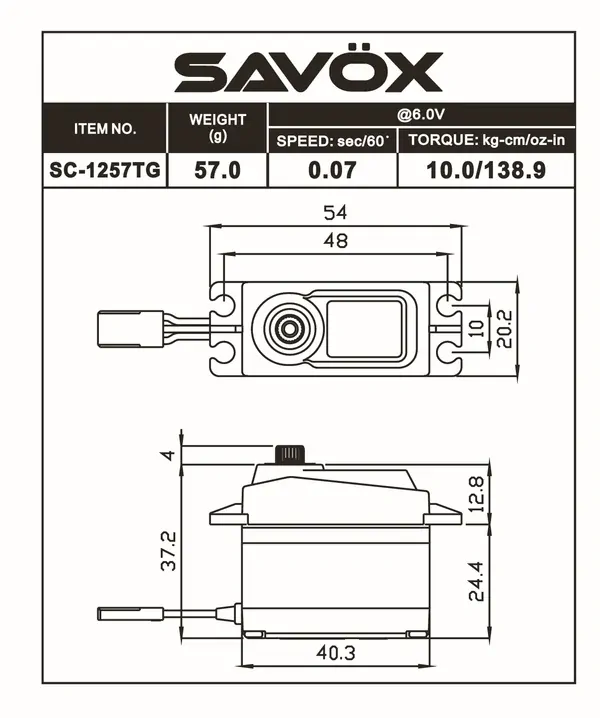

Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 52.4g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
