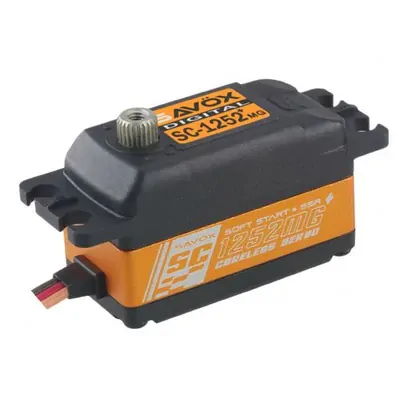

The SC-1252MG Plus is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

  • Metal gear train ensures durability under harsh situations.
  • Aluminum case provides cooler operating temperatures.

Specifications
Torque @ 4.8v - 4.5kg/62.5oz-in
Torque @ 6v - 7.0kg/97.2oz-in
Speed @ 4.8v - 0.08 sec/60 deg
Speed @ 6v - 0.07 sec/60 deg

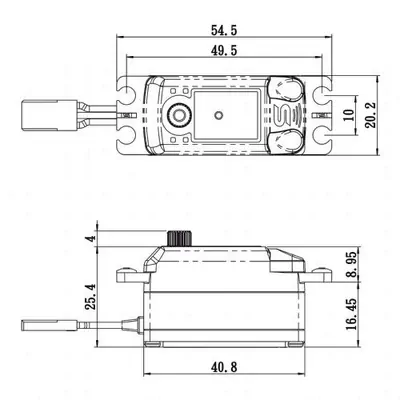

Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
Weight: 44.5g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 950 → 2050 µ second
Maximum Travel: Appx 160° (700 → 2300 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed

SKU SAV-SC1252MG
Barcode # 4710006994178
Brand Savox
Shipping Weight 0.1400kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.120m
Shipping Cubic 0.000480000m3
