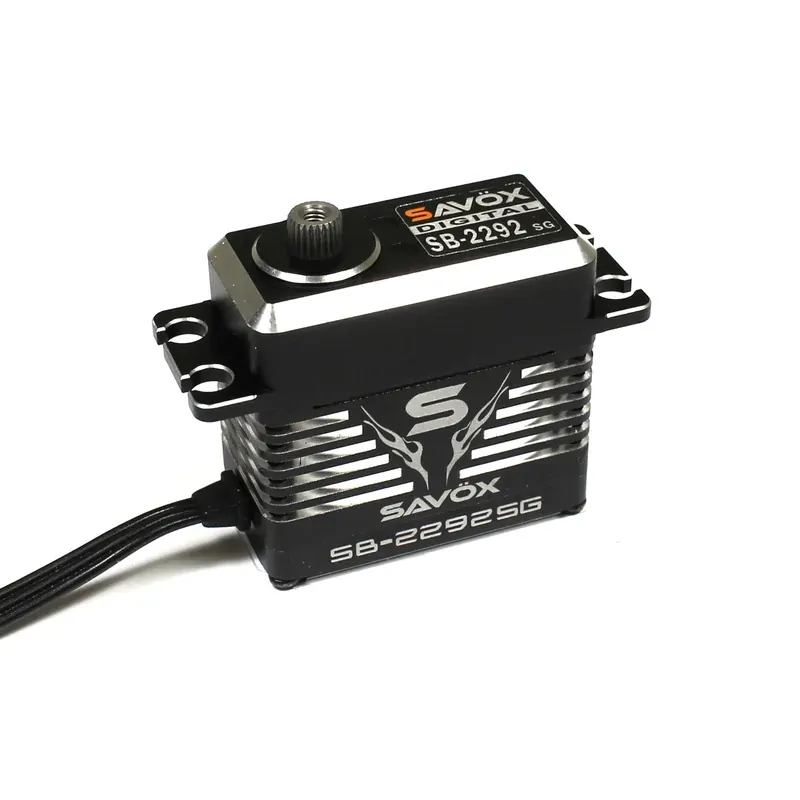

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features

• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications
Torque @ 6v - 22.0kg/305.5oz-in
Torque @ 7.4v - 31.0kg/430.5oz-in
Torque @ 8.4v - 45.0kg/624.9-in
Speed @ 6v - 0.085 sec/60 deg
Speed @ 7.4v - 0.07sec/60 deg
Speed @ 8.4v - 0.055sec/60 deg

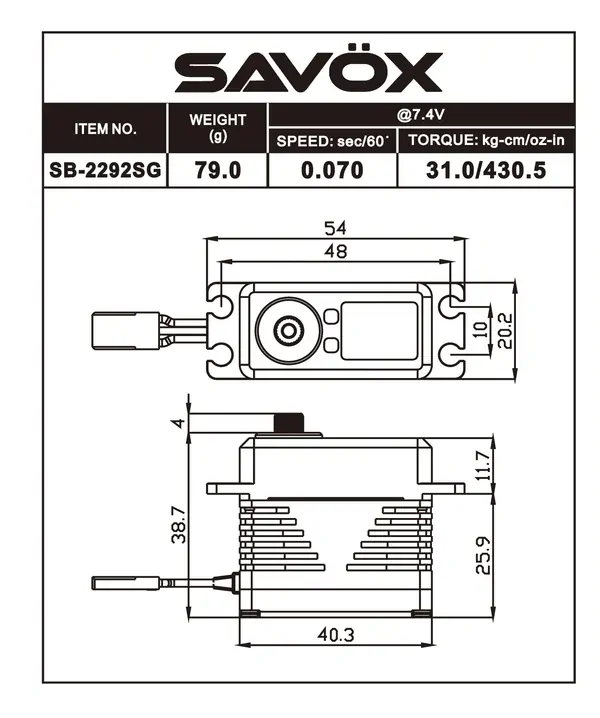

Dimensions L x W x H mm: 40.3 x 20.2 x 38.7
Weight: 81g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
