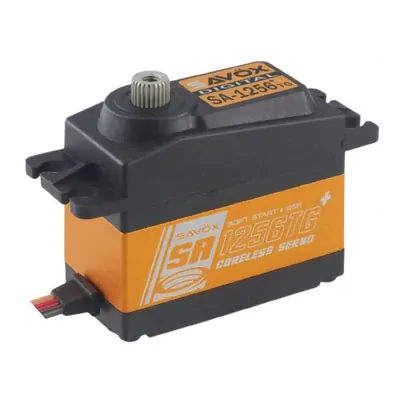

The SA-1256TG Plus servo is perfect for those who are looking for a big upgrade for RTR servos. SA series servos feature minimized backlash, making them ideal for use on flying surfaces of RC planes.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

  • Titanium gears ensure long life, durability, and lighter weight.
  • Minimized backlash for precision aerobatic airplane use.
  • Aluminum middle case to help with cooler operating temperatures.

Specifications
Torque @ 4.8v - 16.0kg/222.2oz-in
Torque @ 6v - 20.0kg/277.7oz-in
Speed @ 4.8v - 0.18 sec/60 deg
Speed @ 6v - 0.15 sec/60 deg

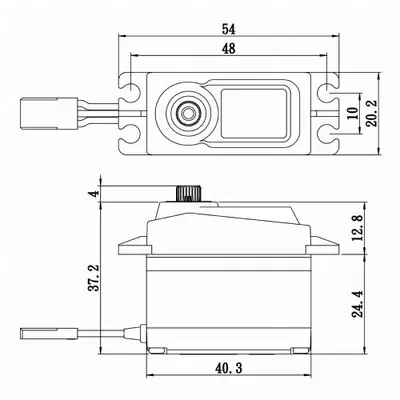

Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 64g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

SKU SAV-SA1256TG
Barcode # 4710006994147
Brand Savox
Shipping Weight 0.1500kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.120m
Shipping Cubic 0.000480000m3
