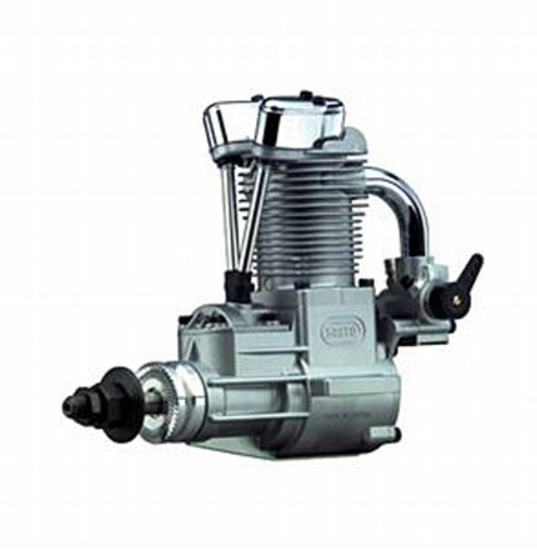

SAITO Engine FA-100, 4-Cycle +
SKU code: SAITO100
Make 4 interest-free payments of $124.75 fortnightly and receive your order now.
Features
- Same mounting dimensions as O.S. 91 Surpass
- 1.00-size in a .91-size case
Overview
Super-Sized Power for Your .60-Size Plane
The FA-91 is one of the most popular selling engines in Saito's extensive line of four-strokes. The .91 fits perfectly into most airplanes designed for .60-size two-strokes offering the ability to swing larger diameter props with more thrust than the two-stroke. Many pilots simply prefer the powerful sound of a four-stroke. Now Saito™ is offering a new engine that offers even more power than the .91 but that's similar in size and weight.
Saito's new FA-100 will turn an APC 14 x 8 prop 300 to 700 rpm more than either the Saito .91 or O.S. .91. At only 19.2 ounces (less muffler), it weighs nearly 2 ounces less than the O.S as well! The Saito FA-100 is not just a punched out .91. It features a newly tooled case that shares the mounting dimensions of the O.S. 91. This allows it to be used with the many after-market engine mounts already available to fit this engine.
The Saito 100 idled and transitioned beautifully from the first start due to the included new Hangar 9™ Super Plug (HAN3011) that now comes with all Saito engines. This plug greatly improves idle and transition in all four-stroke engines. After a short slightly rich break-in, we peaked the needles at 3-5/8" out on the high-speed and a ¼ turn in from flush on the low-speed needle.
Our staff commonly uses 30% heli fuel in Saito engines, as it not only gives better top-end performance but it runs smoother, gives a better transition, and runs cooler.
In flight the FA-100 was one smooth operator. Transition and idle were clean and crisp with instantaneous response. No dead sticks occurred in the first six test flights, despite purposefully long high-altitude idles, followed by rapid full-throttle transitions. The 30% helicopter fuel gave a noticeable boost in power, plus the added oil in the fuel adds a nice trail of smoke.
If you're looking for a powerful lightweight four-stroke to power your latest .60 through .90-size project, you don't have to settle on a 91. Check out Saito's new FA-100.
Specifications
Application: | Airplane |
Type: | 4-stroke |
Bore: | 1.14 in (29.0 mm) |
Stroke: | 1.02 in (26.0 mm) |
Cylinders: | Single |
Cylinder Type: | AAC |
Engine (Only) Weight: | 19.5 oz |
Total Weight: | 20.9 oz |
Fuel: | Glow |
Carb Type: | barrel 2-Needle Valve |
Crank Type: | Ball Bearing |
Crankshaft Threads: | 8x1.25mm |
Displacement: | 1.10 cu. in. (17.10 cc) |
Mounting Dimensions: | 115 x 60 x 128mm |
Muffler Weight: | 1.4 oz |
Muffler Type: | Cast |
Benchmark Prop: | 14 x 8 APC |
Prop Range: | 13x9–14x10 |
RPM Range: | 2000–11000 |
SKU | SAITO100 |
Brand | Saito |
Shipping Weight | 2.5000kg |
Shipping Width | 0.250m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
Shipping Cubic | 0.015625000m3 |
