Key Features

  • Easily charge compatible smart batteries from convenient USB power (power supply not included)
  • Automatically detects smart battery information and begins charging when connected
  • Compatible with 2-3 cell Smart LiPo Batteries

Needed to Complete
  • (1) USB Power Source
  What's in the Box?

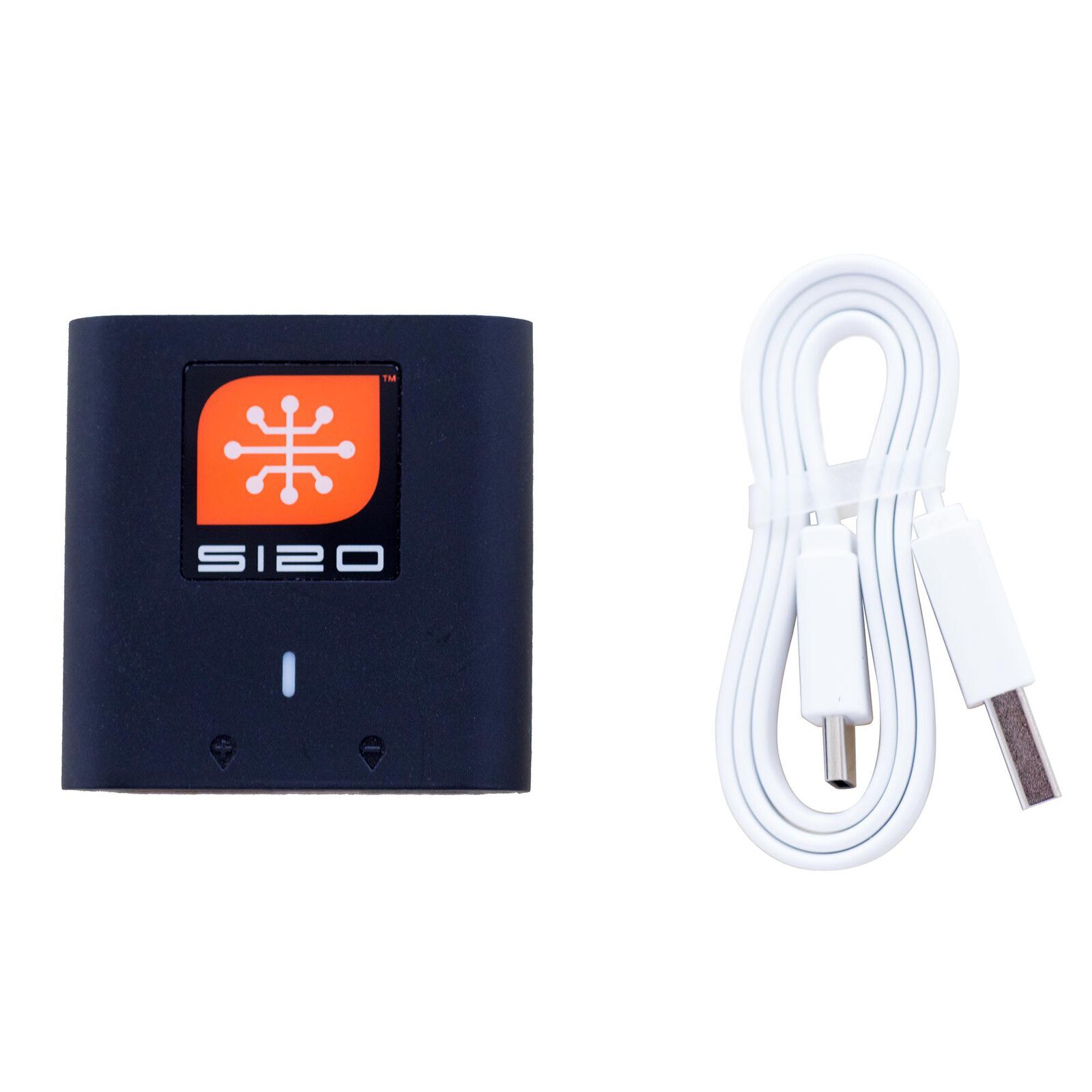

  • (1) S120 USB-C Smart Charger
  • (1) USB-C to USB Cable
  • (1) Product Manual


Overview

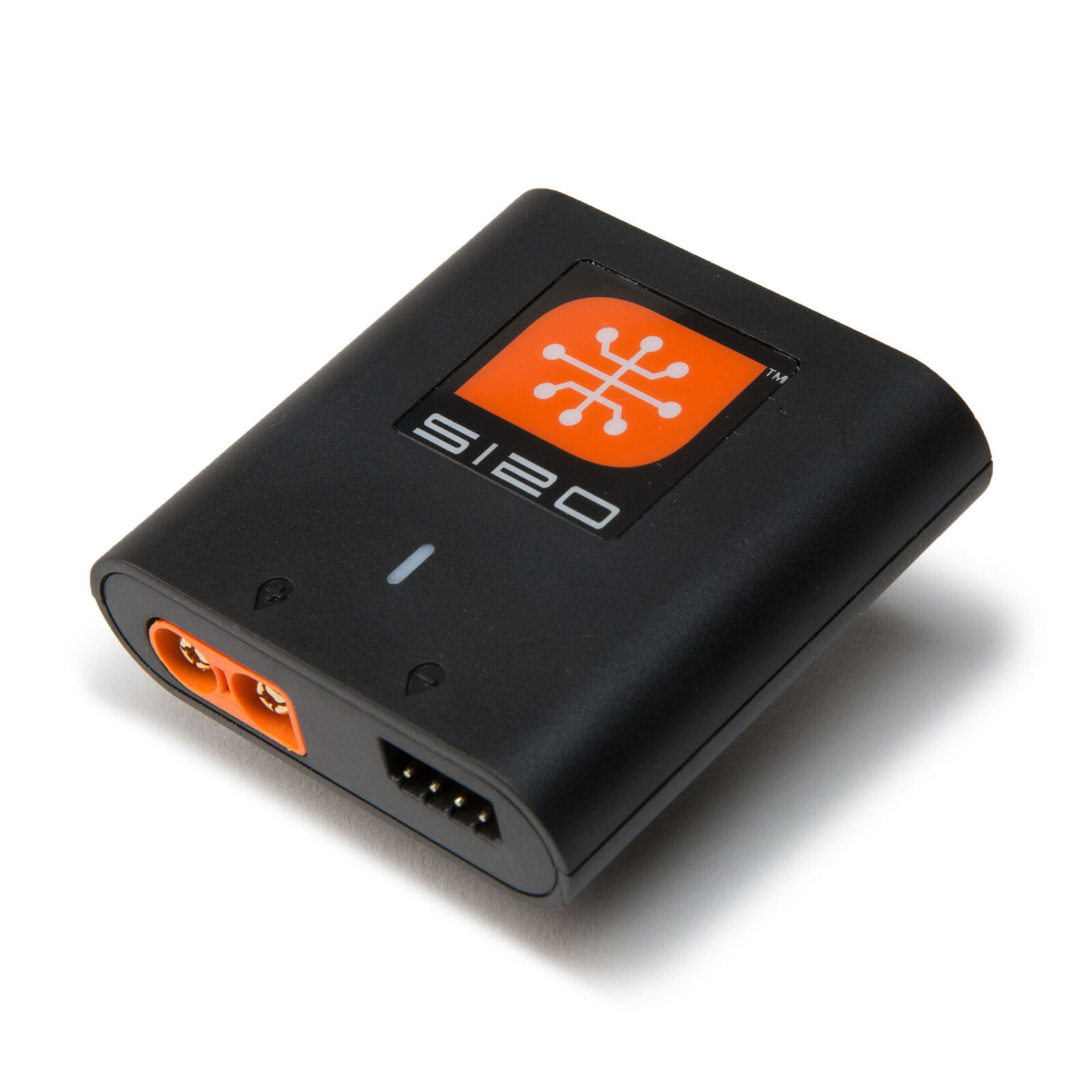

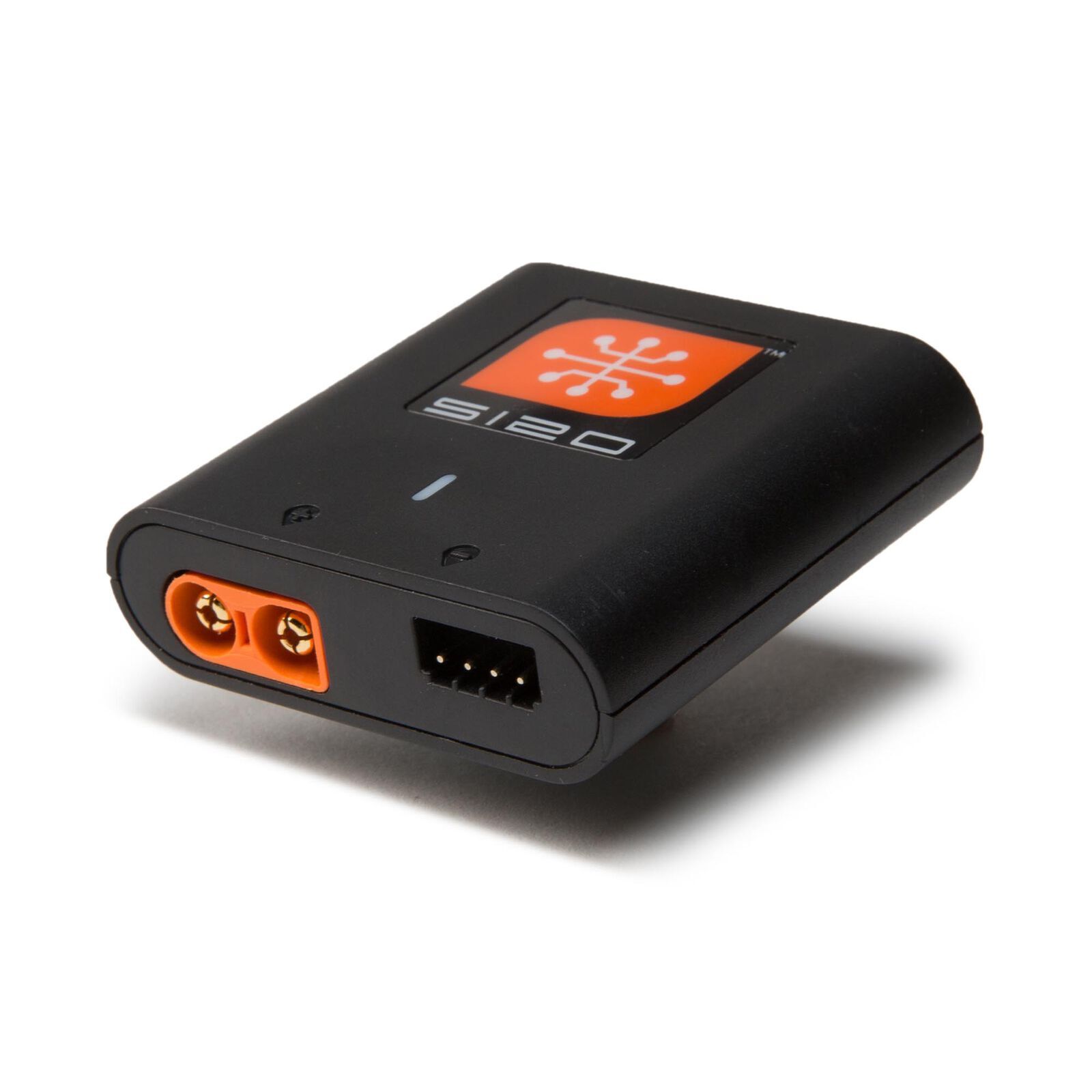

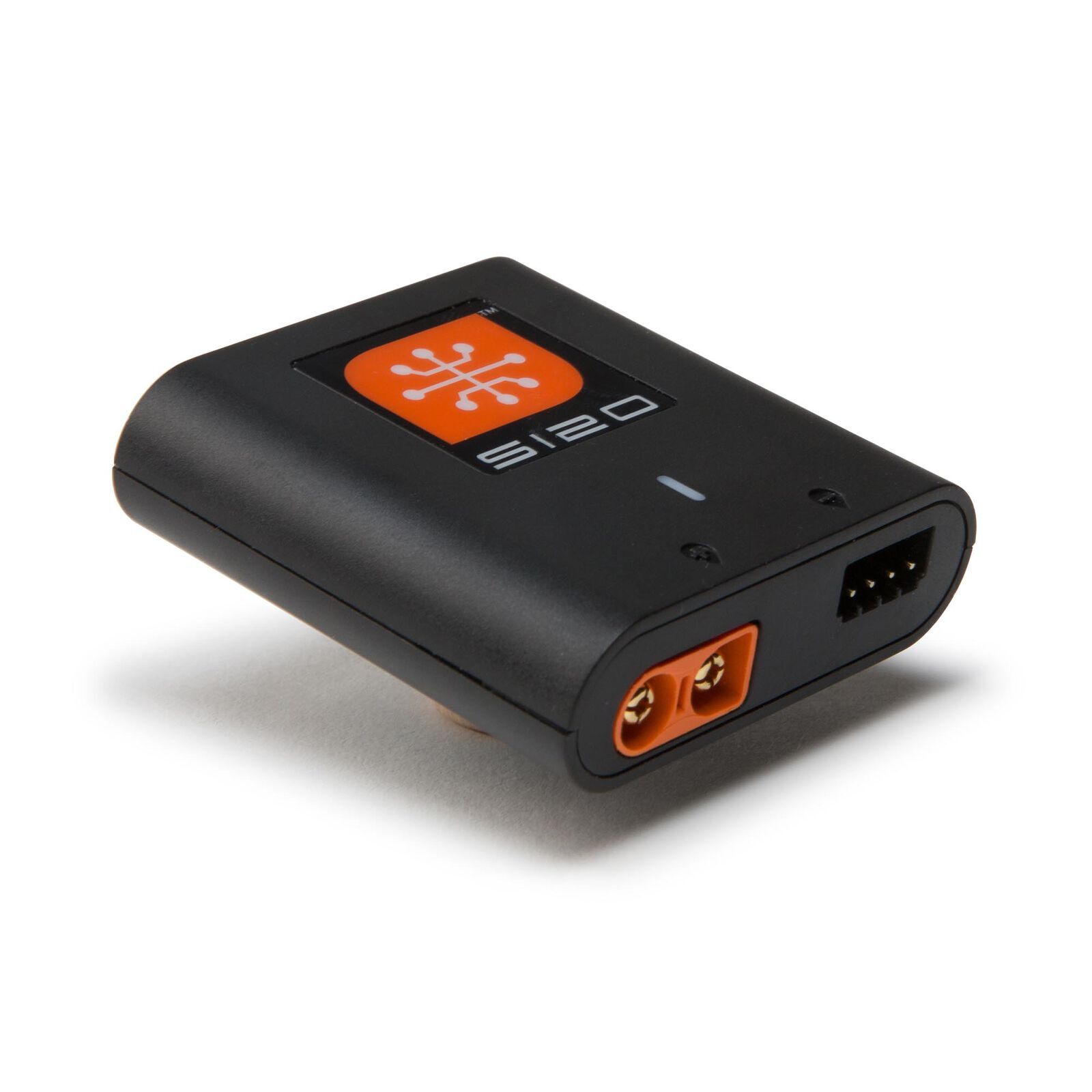

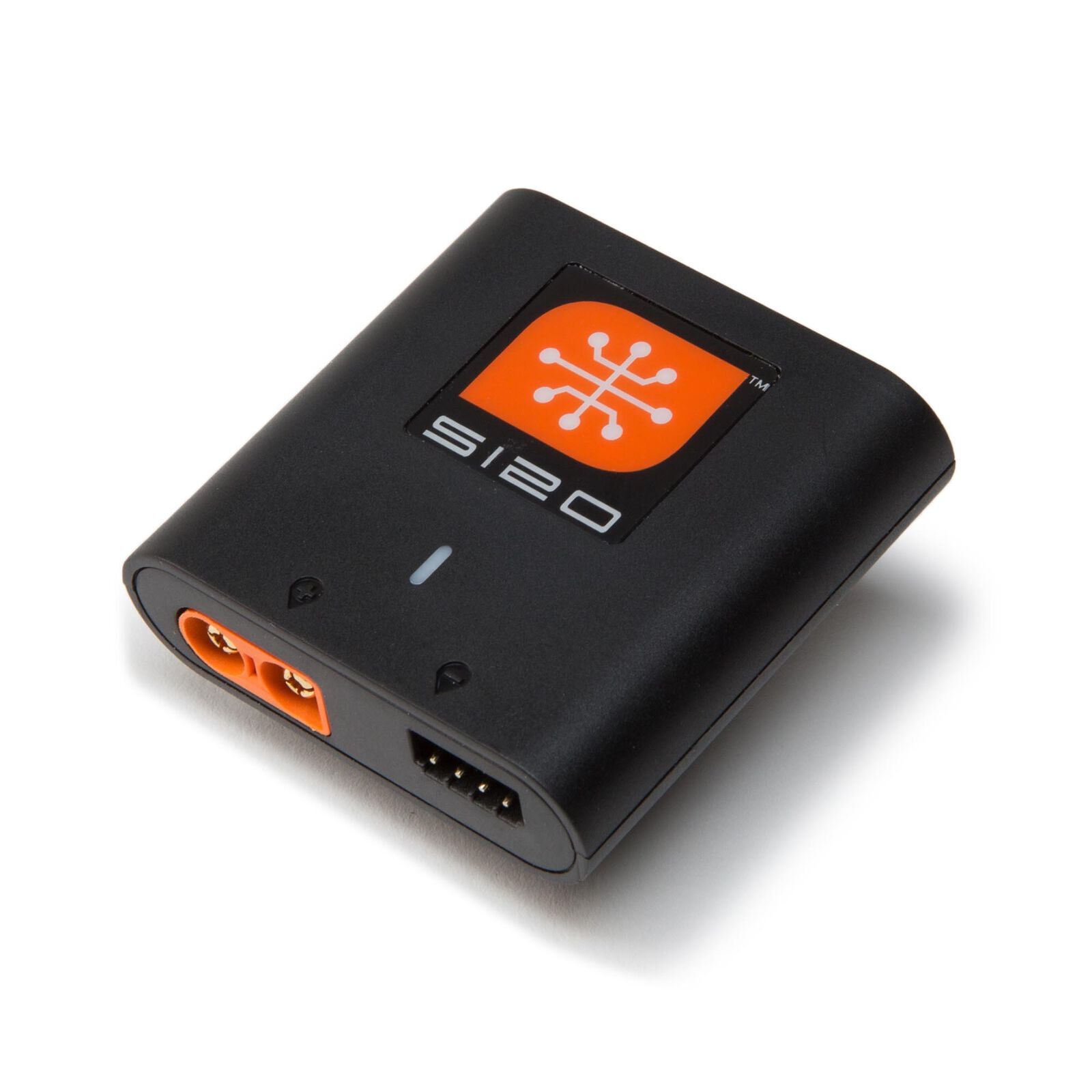

The Spektrum™ S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple to use platform. This 20W charger easily charges compatible Spektrum Smart batteries conveniently from almost any USB power source. When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Spektrum Smart charging is designed to be safe, intuitive and convenient so you can simply look forward to putting your batteries back to action!

Charging is easy with the Spektrum S120 USB-C Smart Charger. Simply use the included USB cable to supply power to the S120 Smart Charger from a USB power source (not included). Plug in your Spektrum Smart battery (Lipo versions require the balance lead to be connected as well as the main lead) and the charger will automatically start charging. Monitor your charging status via a blinking purple or yellow LED. Once your charging is complete the LED will glow green.

*Please note that the Spektrum S120 Charger will ONLY CHARGE 2-3 cell SPEKTRUM SMART LiPo/LiFe/LiHV and 6-7 cell SMART NiMh Batteries*



Spektrum™ Smart Tech Video Overview

Product Specifications

Application Only compatible with Spektrum SMART batteries
Battery Balance Connector JST_XH
Charge Protection Circuitry Yes
Input Voltage 5-12VDC USB charge port, USB type C cable included, power supply required
Maximum Charge Rate 4.35V per cell x3 for a 3 cell LiHV, 2A
Number of Cells 2-3
Output Up to 2A (depending on Power Supply and Battery)
Output Connector IC3
Product Height 0.55" (14mm)
Product Length 2" (51mm)
Product Width 2" (51mm)
Programmable No
Reverse Polarity Protection Yes
Selectable Charge Rate No
Technology Smart
Thermal Protection Yes



SKU SPMXC1020
Barcode # 0605482419991
Brand Spektrum
Shipping Weight 0.4000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.100m
Shipping Cubic 0.000480000m3

Works suprisingly well

19 November 2021
Small. Portable. Inexpensive. Works surprisingly well on my 3cell 3200/30C Gen2 Spektrum Lipo batteries. For some reason powering this from my old computer's USB port was slow. However, charging from a decent USB brick was several orders of magnitude faster. Slow charge so it won't cook your Lipo. LED light on it is bright and changes colour and blinking to indicate where the charge is at.
(5)
