Custom made to fit all popular Truck such as Bully, AX10, Trail Finder!

Specifications

  • Custom made 540 Steel case
  • Chrome plated case
  • Build in capacitor for minimizing glitches
  • High torque magnet and rotor
  • Small footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings

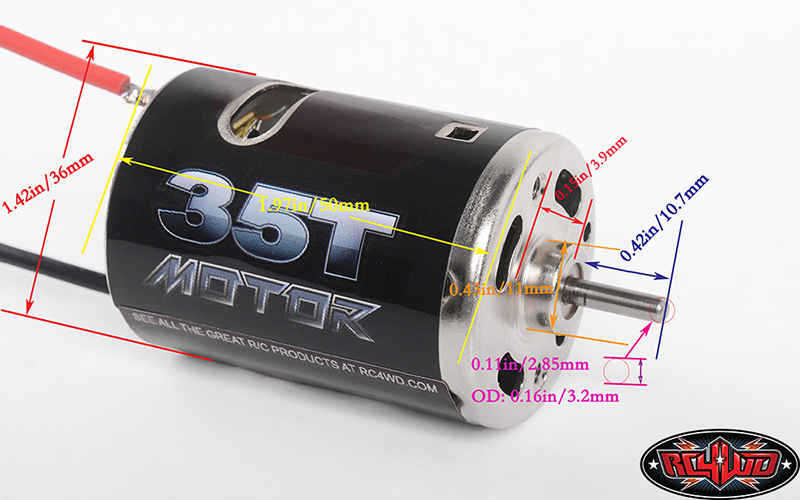

  • Body OD: 1.39in / 35.5mm
  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V

Performance Specs

  • (At no load) RPM @ 7.2V: 12500 (?10%), 1.25Amp Current
  • (Max Efficiency) RPM @ 7.2V: 10400 (?10%), 4.62Amp Current
  • Designed operating temperature range: -30?C to +80?C
  • Motor end play: .50mm max
  • Noise level: < 60db

What's Included

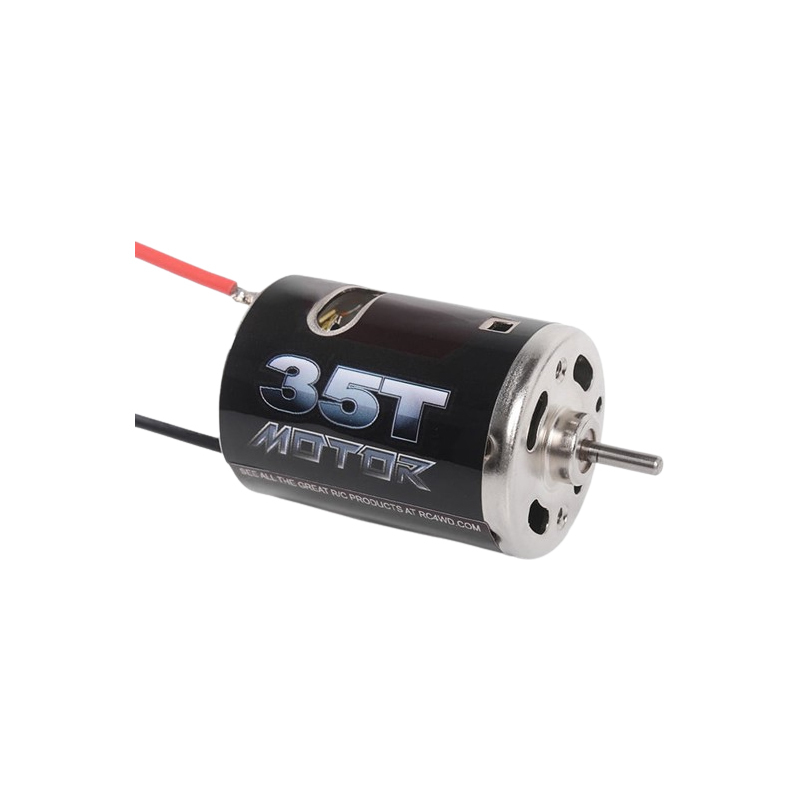

  • 1x RC4WD 540 Crawler Brushed Motor (35T)

Notes

  • Fits RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)
  • Fits Axial SCX10 III
SKU Z-E0005
Barcode # 0639302605356
Brand RC4WD
Shipping Weight 0.2500kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.110m
Shipping Cubic 0.000396000m3
