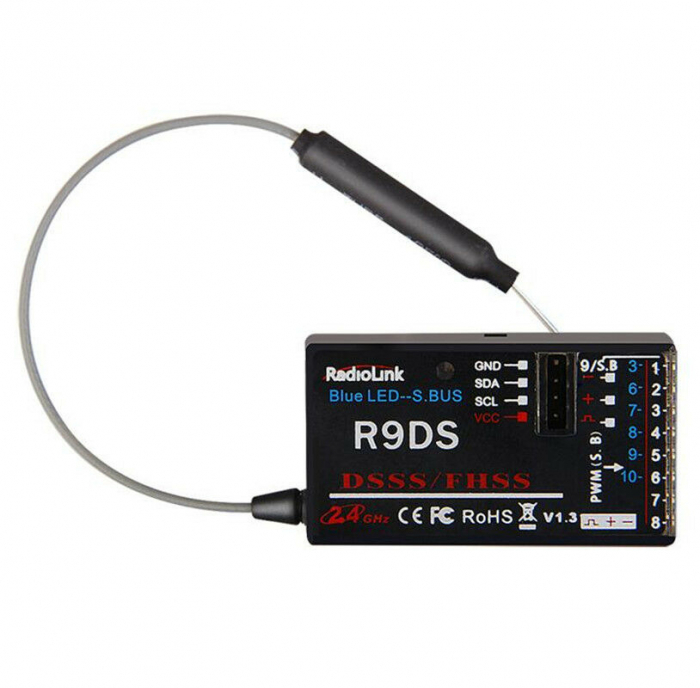

Radiolink R9DS 9-CH 2.4GHz DSSS & FHSS Receiver

Radiolink R9DS, 2.4G 9 channels receiver, DSSS and FHSS spread spectrum working synchronously, use for Radiolink transmitters AT9S, AT9, AT10II and AT10.

SBUS and PWM signal possible working at the same time.

Specification:

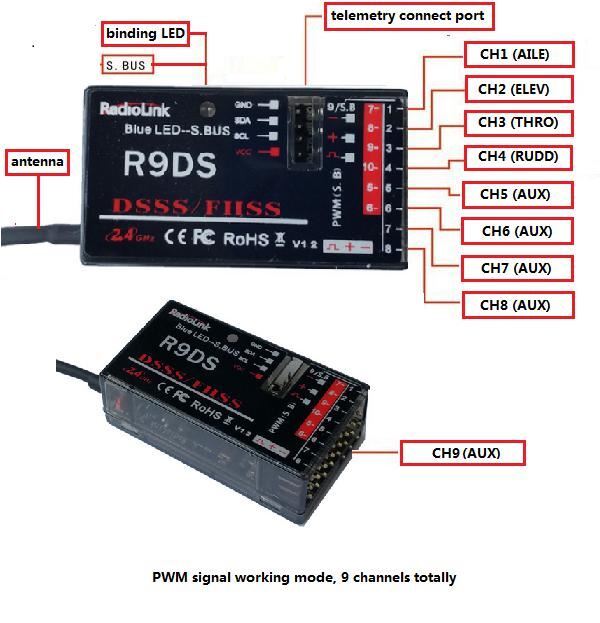

  • 9 channels: output 9 channels PWM signal, with red LED.
  • 10 channels: output 10 channels signal, support SBUS and PWM signal output synchronously, with blue LED.
  • Working voltage: 4.8-10V
  • Working current: 38-45mAh
  • Input voltage: 5V
  • Size: 43*24*15 MM
  • Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM, PIX or MINI PIX.
  • 4096 section precision, 0.25us per section, servo anti-shake rudder.
  • MINI receiver, just need one cable if use SBUS signal.
SKU RLXR9DS
Brand RadioLink
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
