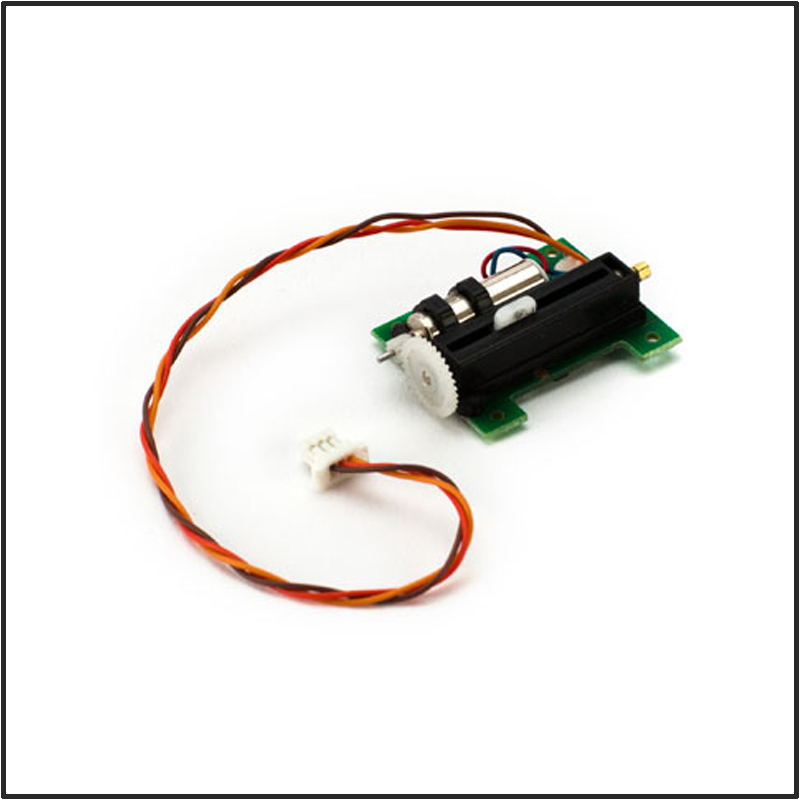

Linear Long Throw Servo SPMSH2040L 2.9G
SKU code: SPMSH2040L
Make 4 interest-free payments of $9.25 fortnightly and receive your order now.
Application: | Ultra-micro helicopter, cyclic |
---|---|
Bearing: | Single |
Bushing Or Bearing: | Bearing |
Connector Type: | JST-SHR |
Connector Wire Length: | 115mm |
Gear Type: | Plastic |
Height: | 0.4 in (9mm) |
Length: | 0.9 in (24mm) |
Motor Type: | Brushed |
Servo Type: | Analog |
Servo Voltage: | 3.2 - 4.2V |
Size Category: | Specialty |
Speed: | 0.13 sec end-to-end |
Speed (at 4.8V): | .10 - .14 sec |
Torque: | 11.6 oz (329 g) force |
Torque (at 4.8V): | Less than 20 oz-in |
Weight: | 0.1 oz (2.9 g) |
Width: |
0.7 in (19mm) |
Fits Blade 130 X
SKU | SPMSH2040L |
Barcode # | 0605482067413 |
Brand | Spektrum |
Shipping Weight | 0.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000800000m3 |
130X cyclic servo
By: Craig Oakley on 24 May 2015Original product for 130X. Cyclic servo only (different product code for a tail servo). Comes in original packaging. Can replace single damaged servo with this (without having to replace all 3). Will have to split frame if replacing elevator servo. Rotary cyclic servos have better performance for the 130X, but require frame replacement. Only complaint is really the weak wire connectors to servo (which is why my original needed replacing). Easy to clean with deoxit without dis-assembly.
(4)
