Multiplex Heron 2400mm WS (Receiver Ready)

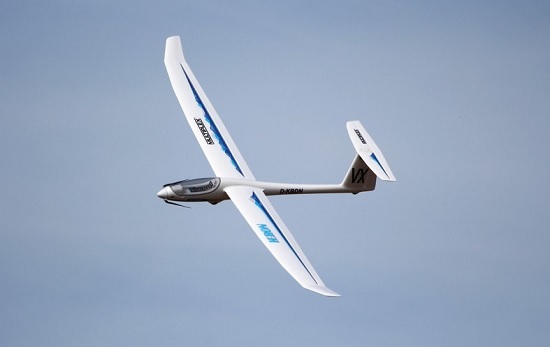

The Multiplex Heron is a high-performance electric glider with T-tail and high-efficiency four-flap wing. With its elegant wings and flowing fuselage lines it responds superbly to thermals.The extravagant four-flap wing with its extremely stiff CFRP/Aluminum tubular spar technology sets entirely new standards in the 2.40 metre span class. The HERON provides a maximum of flying pleasure, whether you are a weekend pilot or an 'old hand'. You can enjoy floating through the air for long periods, as well as lively aerobatics - all with elegance and precision.


Features

  • Four-flap wing for high performance in the air (camber-changing flaps) and accurate spot-landings (butterfly / crow)
  • Broad performance spectrum: high-speed, aerobatics, thermalling
  • Innovative CFRP / ALUMINIUM tubular spar technology for strong, stiff wings
  • GRP "M-SPACE technology" for a rigid fuselage
  • Clear canopy with highly detailed cockpit
  • Detachable wings and tailplane for ease of transport

Kit Contents

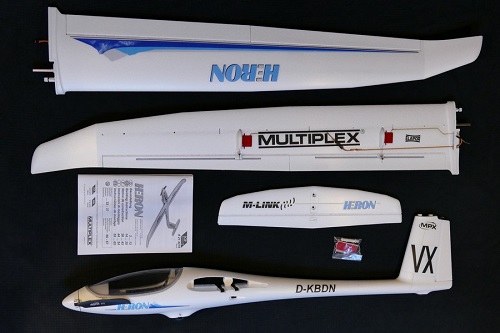

ELAPOR® model, 100% factory-assembled, including PERMAX BL-O 3516-0850 motor, MULTIcont BL 40 S-BEC speed controller, assembled 12 x 6" folding propeller, two Nano-S servos, four Tiny-S servos, decals applied, comprehensive instructions.

Video

Included:

  • Motor: PERMAX Brushless-O 3516-0850
  • ESC: MULITIcont Brushless 40 S-BEC
  • Servos: 4x Tiny-S, 2x Nano-S
  • Propeller: 12x6"
  • Spinner: included

Required to complete the glider

  • LiPo 2200 3S Battery
  • LiPo Battery Charger
  • 6-7 Channel Transmitter + Receiver




Specification

Wingspan: 2400mm
Overall length: 1100 mm
All-up weight: approx. 1500 g
Wing Loading: 33-37.5 g/sg.dm
Wing Area: 41.3 sg.dm
RC functions:          Elevator, rudder, ailerons, flaps, throttle => Butterfly (crow) for short landing approaches
Flight Time: approx. 40 min. without thermal assistance
Channels equired:          6-7 channel radio and receiver is required




SKU MPX264276
Barcode # 4041033062760
Brand Multiplex
Shipping Weight 4.0000kg
Shipping Width 0.280m
Shipping Height 0.190m
Shipping Length 1.280m
Shipping Cubic 0.068096000m3
