Power 60 Brushless Outrunner Motor, 470Kv E-Flite
SKU code: EFLM4060B
$245.37
More infoMake 4 interest-free payments of $61.34 fortnightly and receive your order now.
9 Sold
Key Features
- Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
- High torque, direct drive alternative to brushless inrunner motors

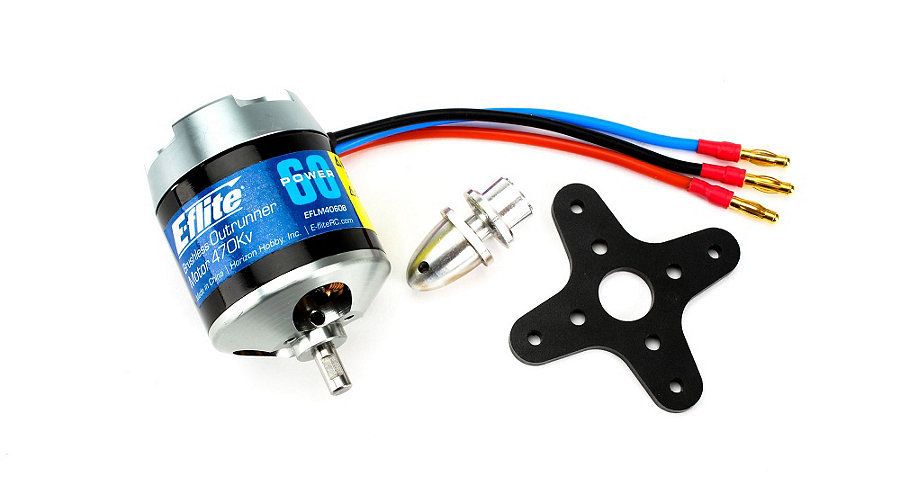

- Includes mount, prop adapter and mounting hardware
- Quiet, efficient operation
- External radial rotor design
Overview
Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.
Specs
| Type: | Brushless outrunner |
|---|---|
| Size: | Replacement for 60-size glow engines |
| Sensored: | No |
| Bearings or Bushings: | One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings |
| Wire Gauge: | 14 AWG |
| Connector Type: | 4mm bullet |
| Recommended Prop Range: | 15 x 8 - 17 x 7 electric propeller |
| Voltage: | 22.2V (6S LiPo, 4400-5000mAh) |
| RPM/Volt (Kv): | 470Kv |
| Resistance (Ri): | 0.02 ohm |
| Idle Current (Io): | 2.1A @ 20V |
| Maximum Burst Current: | 80A for 15 seconds |
| Recommended Speed Control: | 80A brushless |
| Weight: | 13.0 oz (380 g) |
| Overall Diameter: | 2.00 in (50mm) |
| Shaft Diameter: | 0.24 in (6.0mm) |
| Overall Length: | 2.40 in (62mm) |
| Power Plant Size : | 60-110 Electric |
| Motor Application: | Airplane |
| Motor Design: | Outrunner |
| Continuous Current: | 51A + |
| SKU | EFLM4060B |
| Barcode # | 0605482107980 |
| Brand | E-Flite |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.080m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000800000m3 |
