Key Features

  • Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5.5 lb (1.4–2.5 kg)
  • Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
  • Ideal for models requiring up to 600 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors

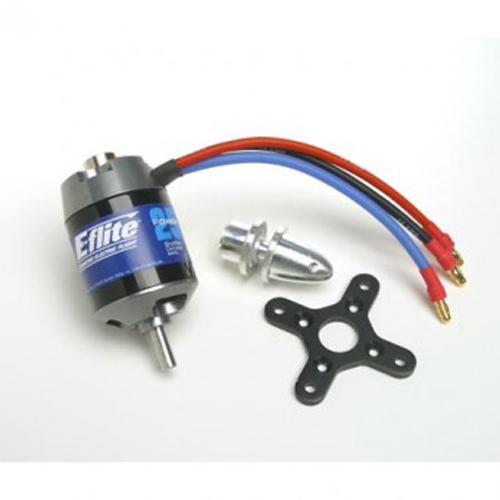

  • Includes mount, prop adapter and mounting hardware
  • External radial rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quite, lightweight operation

Needed To Complete

40–45A brushless ESC
3S–4S Li-Po or 10- to 14-cell Ni-MH/Ni-Cd
11x8 to 14x7 prop

Overview

The Power 25 is designed to deliver clean and quiet power for 25-size glow engine for sport and scale airplanes weighing 3 to 5.5 pounds (1.4 to 2.5 kilograms), 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms), or models requiring up to 600 watts of power. It's an especially good match for 4- to 5-pound scale airplanes on the market and models such as the Sig Kadet LT-25, Sig Frazer, Lanier Extra 3.25, Global Tequila Sunrise 25 and Great Planes Taylorcraft 20




Specs

Application: Airplane
Bearings or Bushings: One 5 x 14 x 5mm Bearing and Two 5 x 11 x 4mm Bearings
Cells: 3S-4S Li-Po or 10–14 Ni-MH/Ni-Cd
Continuous Current: 31 - 40A
Idle Current (Io): 2.40A @ 10V
Maximum Burst Current: 44A (15 sec)
Motor Design: Outrunner
Overall Diameter: 35mm (1.40 in)
Overall Length: 54mm (2.10 in)
Power Plant Size: 25-46 Electric
RPM/Volt (Kv): 870
Recommended Prop Range: 11x8 to 14x7
Resistance (Ri): .03 ohms
Shaft Diameter: 5mm (.20 in)
Size: Replacement for 25-size glow engine
Speed Control: 40–45A brushless
Type: Brushless outrunner
Voltage: 12–16.8
Weight: 190 g (6.7 oz)
Wire Gauge: 14





SKU EFLM4025A
Barcode # 0605482771990
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
