Key Features

  • Extremely quiet and lightweight—just 2.5 ounces (72 g)
  • High-torque alternative to inrunner brushless motors

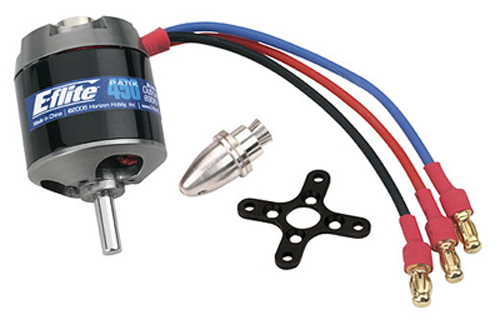

  • Includes mount, prop adapter and mounting hardware
  • External radial rotor design—4mm shaft can easily be reversed for alternative motor installation
  • Slotted 12-pole outrunner design
  • Ideal for 3D park flyers (15–25 oz) and scale park flyers (20–30 oz) using 2–3S 1200–2100mAh Li-Po batteries
  • Quiet, efficient operation

Needed To Complete

20A brushless ESC
9x6–11x3.8 prop
2S–3S 1200–2100mAh Li-Po Battery



Overview

The Park 450 is ideal for 3D park flyers 15 to 25 ounces and scale park flyers 20 to 30 ounces, using 2S–3S 1200–2100mAh Li-Po battery packs.

It will provide sport 3D performance for a Mini Edge-size plane and great performance on the new E-flite® P-47.

Application Airplane
Bearings or Bushings One 4 x 8 x 3mm Bearing and One 4 x 9 x 4mm Bearing
Cells 2–3 Li-Po or 6–10 Ni-Cd/Ni-MH
Continuous Current 11 - 20A
Diameter 1.1 in (28mm)
Idle Current (Io) .70A @ 8V
Length 1.3 in (33mm)
Maximum Burst Current 18A for 15 seconds
Motor Design Outrunner
Overall Diameter 1.10 in (28mm)
Overall Length 1.30 in (33mm)
Power Plant Size 450-480 Electric
RPM/Volt (Kv) 890
Recommended Prop Range      9x6 to 11x3.8 Slow Flyer or 10x5 to 12x6 Electric
Resistance (Ri) 20 ohms
Shaft Diameter .16 in (4mm)
Size Replacement for 370 or 400
Speed Control 20A brushless ESC
Type Brushless outrunner
Voltage 7.2–12
Weight 72 g (2.5 oz)


SKU EFLM1400
Barcode # 0605482773888
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
