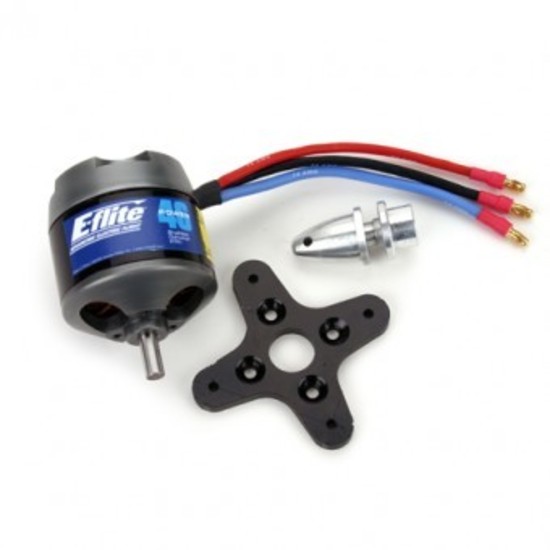

E-Flite Power 46 Brushless Outrunner motor 670 rpm/V EFLM4046A
SKU code: EFLM4046A
More infoMake 4 interest-free payments of $56.25 fortnightly and receive your order now.
- Equivalent to 40- to 46-size glow engine for planes weighing 4–7 lb (1.8–3.2 kg)
- Ideal for 25- to 40-size 3D airplanes up to 5 lb (2.2 kg)
- Ideal for models requiring up to 925 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- External rotor design—6mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
The Power 46 is designed to deliver clean and quiet power for .40 to 46-size sport and scale airplanes weighing 4 to 7 pounds (1.8–3.2 kg), 25- to 40-size 3D airplanes up to 5 pounds (2.2 kg), or models requiring up to 925 watts of power. It’s an especially good match for Hangar 9 .40-size trainers like the Alpha .40 (HAN2450), Arrow .40 (HAN2625) and warbirds like the T-34 Mentor 40 (HAN2425). Also a great match for sport planes like the Ultra Stick 40 (HAN1675 or HAN1690), Seagull Spacewalker 40 (SEA2050), and smaller sport 3D planes like the Twist 40 (HAN2650).
60A brushless ESC
4S–5S Li-Po or 12- to 16-cell Ni-MH/Ni-Cd
12x8 to 14x10 prop
Specs
| Application: | Airplane |
|---|---|
| Bearings or Bushings: | One 6 x 15 x 5mm Bearing and Two 6 x 12 x 4mm Bearing |
| Cells: | 12–16 Ni-MH/Ni-Cd or 4–5S Li-Po |
| Continuous Current: | 41 - 50A |
| Diameter: | 50mm (2 in) |
| Idle Current (Io): | 3.90A @ 10V |
| Length: | 55mm (2.15 in) |
| Maximum Burst Current: | 55A (15 sec) |
| Motor Design: | Outrunner |
| Overall Diameter: | 50mm (2.00 in) |
| Overall Length: | 55mm (2.15 in) |
| Power Plant Size: | 25-52 Electric |
| RPM/Volt (Kv): | 670 |
| Recommended Prop Range: | 12x8 to 14x10 |
| Resistance (Ri): | .04 ohms |
| Shaft Diameter: | 6mm (.24 in) |
| Size: | Replacement for 40- to 46-size glow engines |
| Speed Control: | 60A brushless |
| Type: | Brushless outrunner |
| Voltage: | 14.4 to 19.2 |
| Weight: | 290 g (10.0 oz) |
| Wire Gauge: | 14 |
| SKU | EFLM4046A |
| Barcode # | 0605482773871 |
| Brand | E-Flite |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.080m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000800000m3 |
