Ideal for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power.
Features
  • Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
  • Ideal for scale park flyers 25–35 oz (710–990 g)
  • Ideal for models requiring up to 275 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters, and mounting hardware
  • External rotor design—4mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation

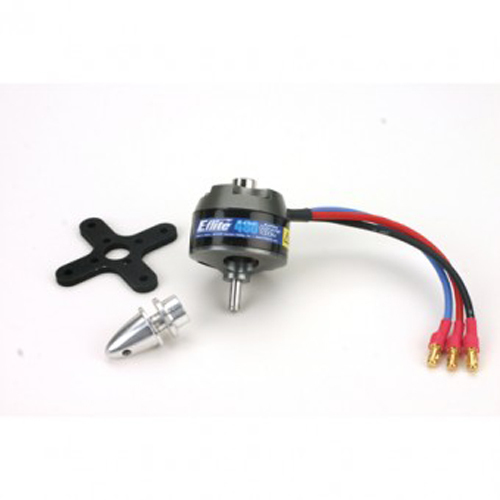

The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.

What you Need

25A–40A brushless ESC

2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-Cd

10x7–12x6 propeller

Type - Brushless outrunner

Size - -Park flyer

Bearings or Bushings - One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing

Wire Gauge - 16

Recommended Prop Range - 10x7 to 12x6

Voltage - 7.2 to 12

RPM/Volt (Kv) - 1020

Resistance (Ri) - .06 ohms

Idle Current (Io) - 1.10A @ 8V

Continuous Current - 22A

Maximum Burst Current - 28A (15 sec)

Cells - 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po

Speed Control - 25A to 40A brushless

Weight - 87 g (3.1 oz)

Overall Diameter - 35mm (1.40 in)

Shaft Diameter - 4mm (.16 in)

Overall Length - 33mm (1.30 in)

Brand - E-Flite

SKU EFLM1505
Barcode # 0605482774243
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
