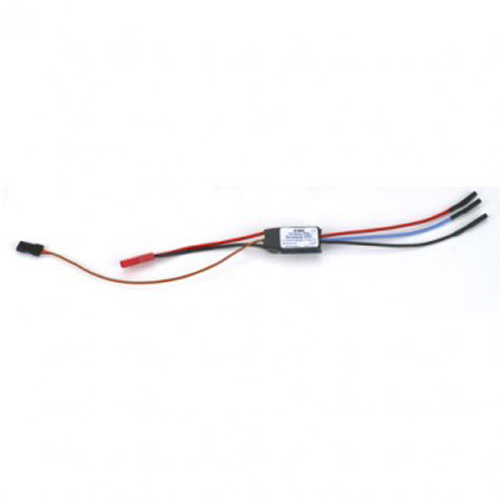

E-Flite 10-Amp Pro Brushless ESC EFLA1010
SKU code: EFLA1010
Make 4 interest-free payments of $10.00 fortnightly and receive your order now.
Features
- Up to 10-amp continuous current with proper air flow
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or Auto Select)
- Auto motor shutdown if signal is lost or there is interference
- Programmable timing—2 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
- Soft start
This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2–3 cell Li-Po battery packs and up to 4 sub-micro servos. Standard features include advance BEC and safe power-arming along with programmable features such as low-voltage cutoff, braking, timing and throttle input range.
BrakeYes - programmable
Continuous Maximum Current - 10A
Input Connector Types - 20AWG with JST connector
Output Connector Types - 20AWG with 2mm female gold bullet connectors
Momentary Peak Current - 12A (15 sec)
Length - 1.2 in (30mm)
Width - 0.7 in (17.5mm)
Height - 0.4 in (10mm)
Weight - 0.35 oz (10 g)
Cells w/BEC - 2–3S Li-Po or 6–10 Ni-MH/Ni-Cd
Brand - E-Flite
SKU | EFLA1010 |
Barcode # | 0605482776346 |
Brand | E-Flite |
Shipping Weight | 0.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000800000m3 |
