Product Information

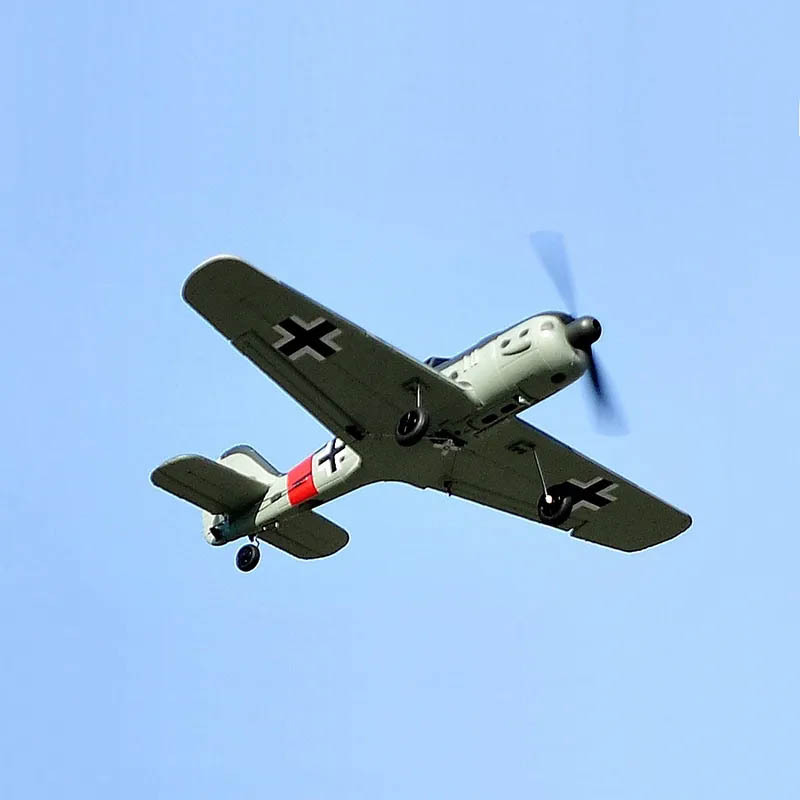

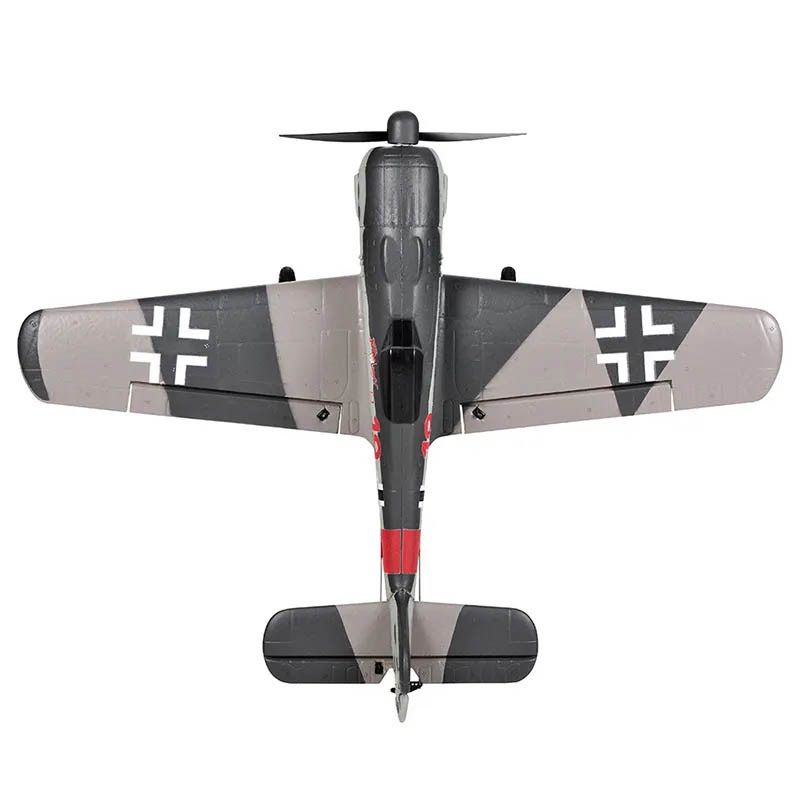

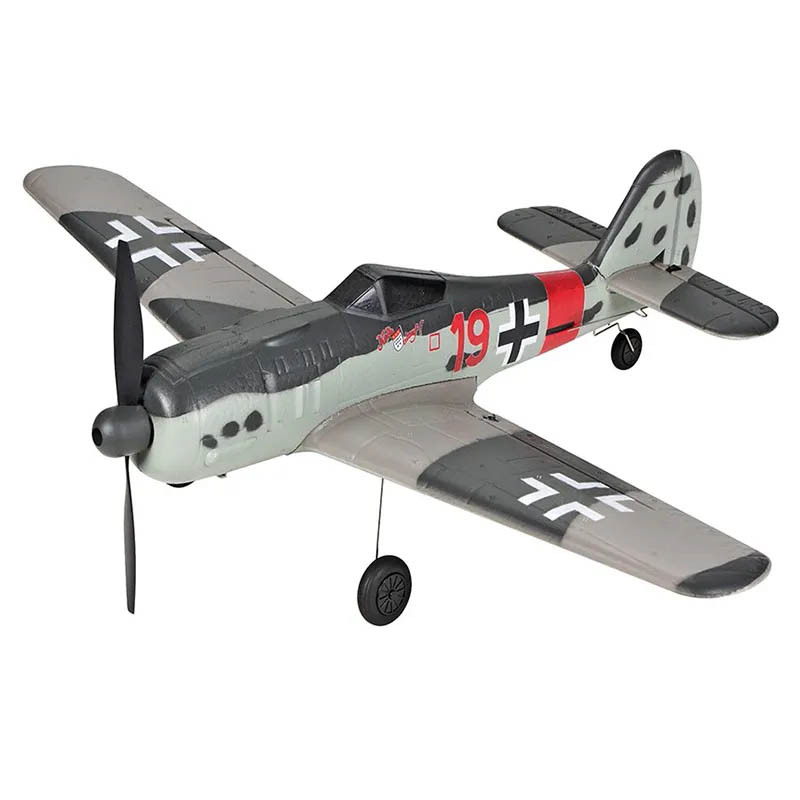

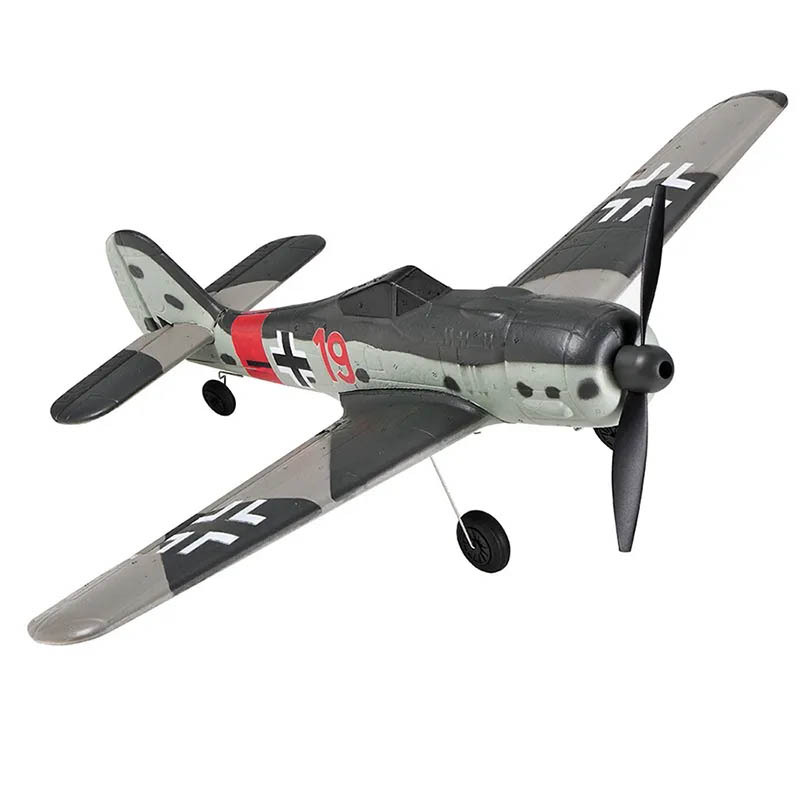

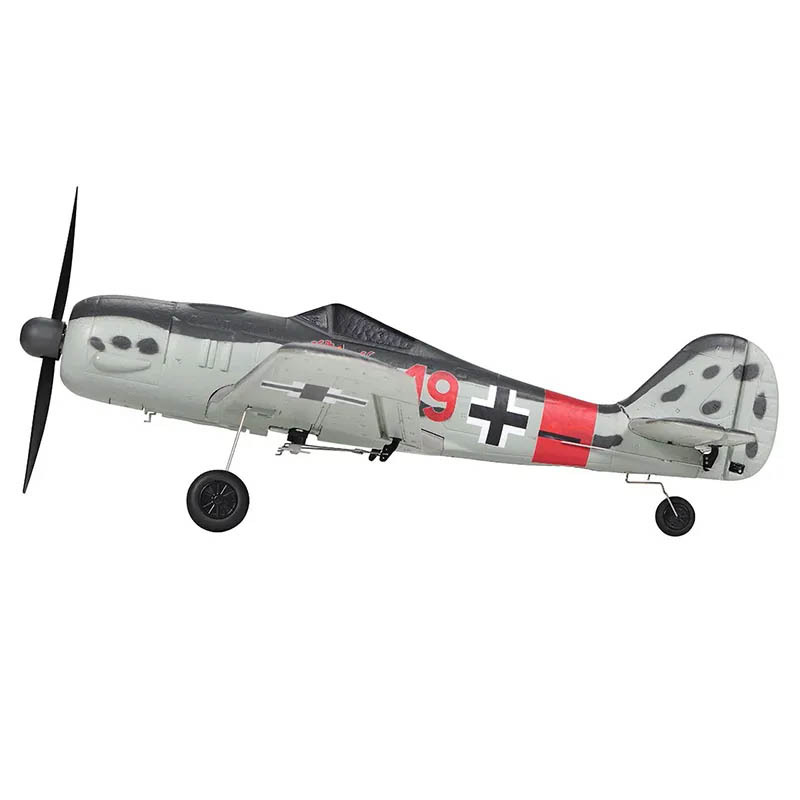

The Prime RC Mini FW190 is a 402mm RTF RC warbird that helps beginner RC pilots to enjoy flying easily. The Top-Gyro system has a flight controller that offers 3 levels of assistance:

  • 0 - Manual / TOP-Gyro Off (Expert)
  • 1 - Soft TOP-Gyro Assist (Intermediate)
  • 2 - Strong TOP-Gyro Assist (Beginner)

Beginners can utilise the strong Top-Gyro assist where there are limited bank and pitch angles to help prevent pilots from over-controlling the RC plane. As your skills progress, flick the switch to soft TOP-Gyro assist and once you're comfortable enough you can turn the TOP-Gyro off and have full control of the aircraft.

One-Key Aerobatics

The one-key aerobatics feature allows beginner pilots to perform aerobatic actions by simply pressing the button on the transmitter.  During the flight, under Top-Gyro control mode, press the one key aerobatics button, and the transmitter will beep several times. During the beeping, simply move the aileron stick in either direction for auto-roll, or move the elevator stick to either direction for auto-loop.

One-Key U-Turn

The Mini FW190 RC Plane comes with a one-key U-turn function, which enables the plane to U-turn in the opposite direction that the airplane takes off.

Propeller Saver

When the Mini FW190 hits any obstacles, the propeller will come loose from its mount. The propeller saver keeps the propeller from damage and prevents the electronic components from high current loads. To install the propeller back to the base, insert the prop adaptor centrally through the motor shaft, and hearing a "click" sound to ensure it is secured, you can fly the RC plane again.

Gear Box Power System

The gearbox power system provides more thrust and power allowing the plane to fly longer time. The propeller saver prevents the propeller from blocking and damaging the internal electronic components after a crash.

Two Take-off modes, suitable for different pilots, take you to the sky

  • Take Off the ground - Push the throttle and elevator stick, it requires a certain flying distance to take off the ground, please operate it on a flat road with a runway length.
  • Hand Launch - Push throttle by 80%, and throw the airplane straight ahead, meanwhile push the elevator.

Easy maintenance

Easy to maintain the motor with the detachable foam block at the bottom of the fuselage. The main wing is detachable and it is very easy to replace the 4 in 1 PCB in the fuselage.

What's in the box?

  • 1 x Mini FW190 RC Plane
  • 1 x 2.4GHz Transmitter
  • 1 x USB Charging cable
  • 1 x LiPO Battery
  • 4 x AA batteries for the Transmitter
  • 1 x Screwdriver
  • 1 x Spare propeller

Specs

Wingspan 402mm / 15.8 in
Length 320mm / 12.6 in
Flying Weight 68g / 2.4 oz
Material EPP foam
Motor 1020 coreless motor
Speed Controller 4 in 1 (ESC + Servo + Gyro + Receiver)
Servo 2x 1.3 g Servo 1x 2g Servo
Battery 3.7V 400mAh LiPo 20C
Charger USB Cable
Charging Time 50 - 60 mins
Transmitter 2.4GHz 4-channel
Control Distance Around 200m
Experience Level Beginner
Flight Environment Indoor / Outdoor
Flight Time 12-15 mins
Flaps No
SKU PMQTOP105B
Brand Prime RC
Shipping Weight 1.5000kg
Shipping Width 0.430m
Shipping Height 0.150m
Shipping Length 0.430m
Shipping Cubic 0.027735000m3
