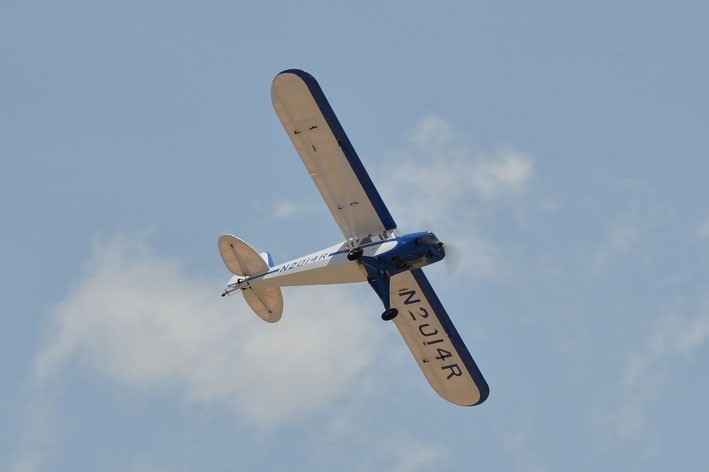

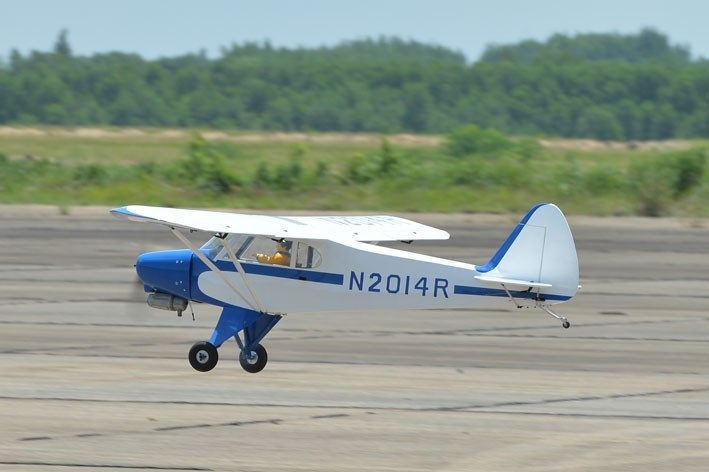

Phoenix Model has brilliantly captured the spirit of the Super Cub PA-18 with this outstanding, giant-scale recreation. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly.Flaps provide function as well as scale appearance. The wings are removable should you want to disassemble it for transportation or storage. A real favourite with scale pilots, this is a Cub you will be proud to own.

Features
  • Designed for compatibility with both GP and EP flight
  • Covered in genuine ORACOVER®
  • Top quality balsa/light plywood construction

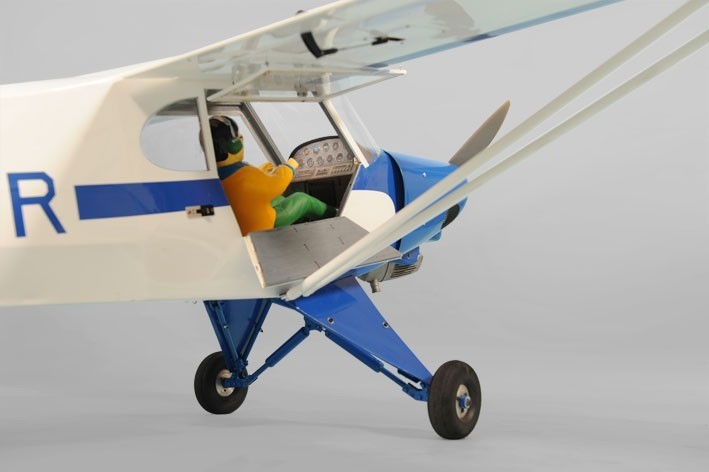

  • Full depth cockpit and instrument panel and pilot included
  • Bolt on two piece wing for easy transport and setup at the field
  • Strong light weight construction
  • Superb flying characteristics, plus an accurate scale outline
  • High quality hardware package included

VIDEO

SUPER CUB PA-18 SCALE 1:4 ½ ARF 1.20 PH117 PHOENIXMODEL - YouTube

Video will open in a new window

Specs

Wingspan      2300mm (90.5in)
Length      1472mm (57.9 in)
Flying weight   6.2-7.1 kg
Wing area   78.7 dm2
Wing loading   78.5g/dm2
Wing type   Naca airfoils
Covering type   Genuine ORACOVER®
Gear type   Scale main gear and spring wire for tail gear (included)
Spinner size   Scale type (not included)
Radio      6 channel minimum (not included)
Servo      8 Hi-torque standard servo2 aileron; 2 Flap; 2 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery    4.8-6V / 1200-2000mAh NiMH (not included)
Servo mount   21mm x 42 mm
Propeller      suit with your engine
Engine      1.20/ 2-stroke or 1.40/4-stroke glow engine or 20cc gas engine (not included)
Motor      brushless outrunner 1600-2200 W, 450 KV (not included)
Experience level   Intermediate
Plane type   Scale Civilian
Lipo cell   5-6 cells / 5500 – 6000mAh (not included)
Esc      120-160A (not included)
Brand      Phoenix Models




SKU PHN-PH117
Brand Phoenix Models
Shipping Weight 6.0000kg
Shipping Width 0.450m
Shipping Height 0.340m
Shipping Length 1.350m
Shipping Cubic 0.206550000m3
