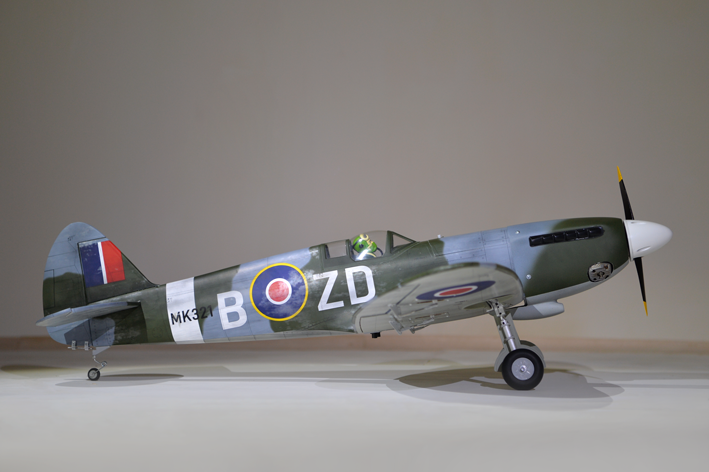

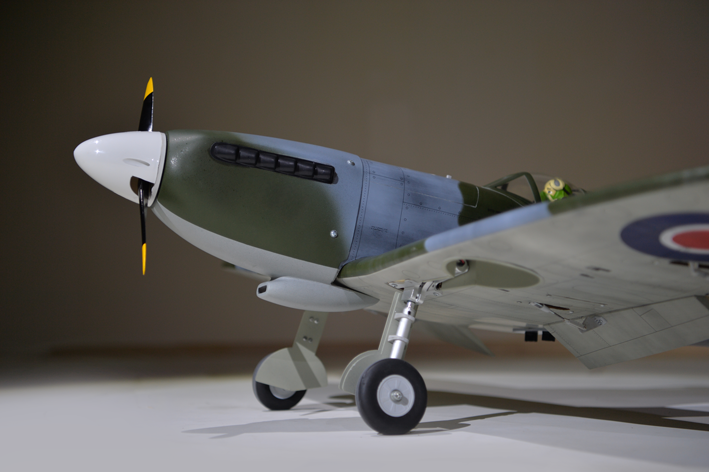

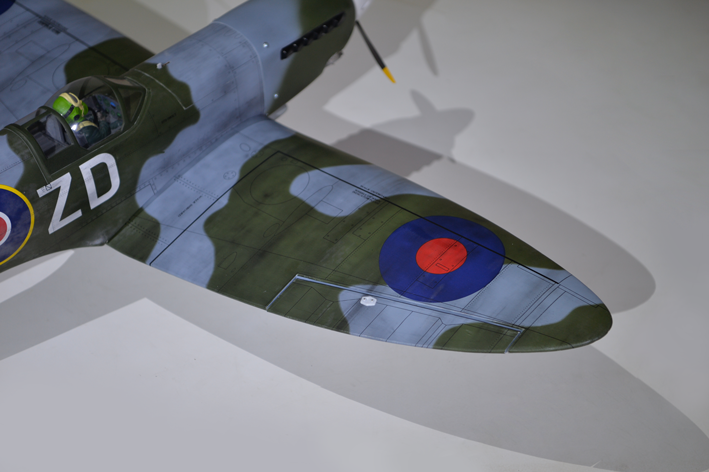

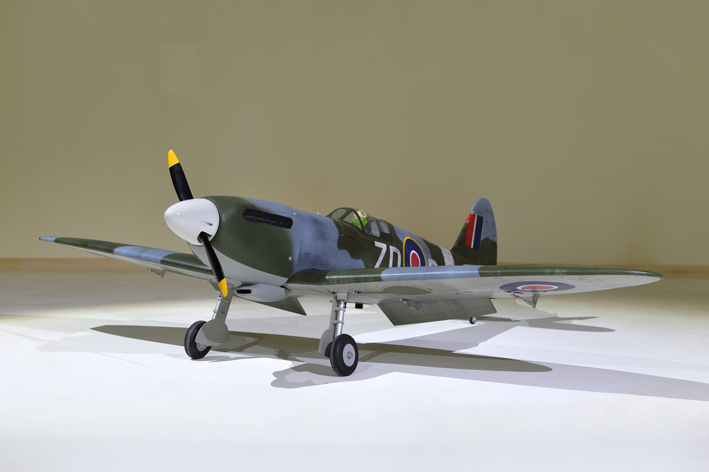

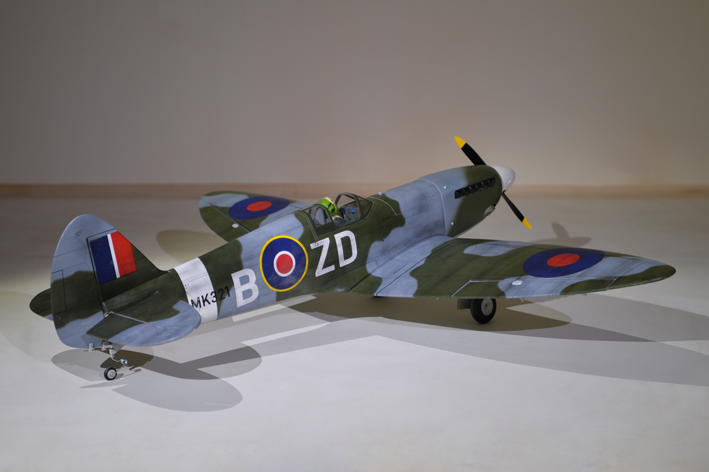

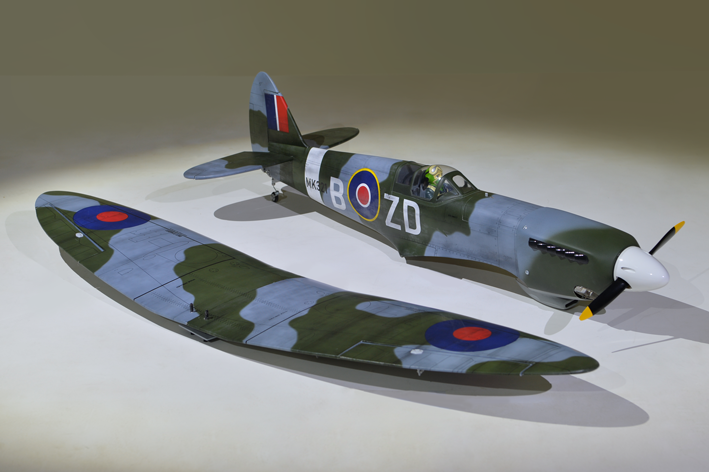

PH225 – SPITFIRE 1,4m 55'' W/Electric Retract ARF .46 -.55

Introducing

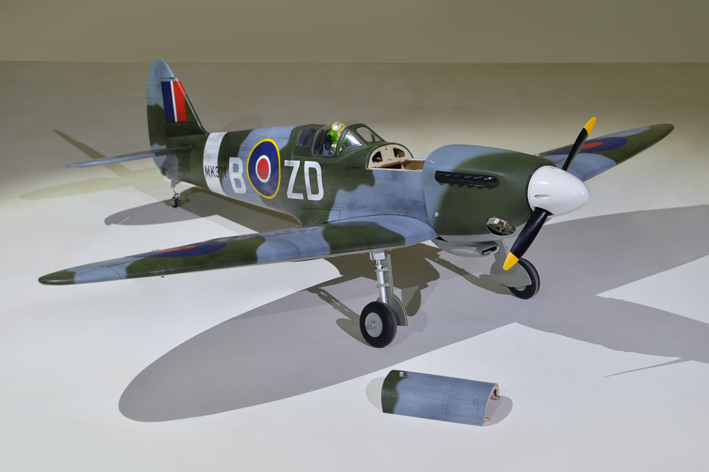

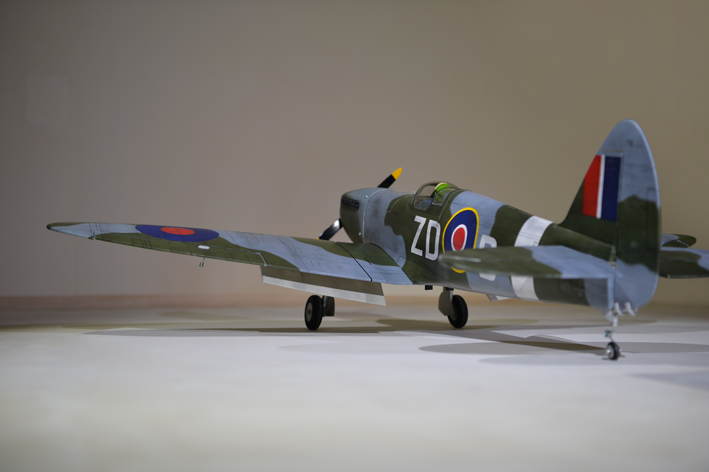

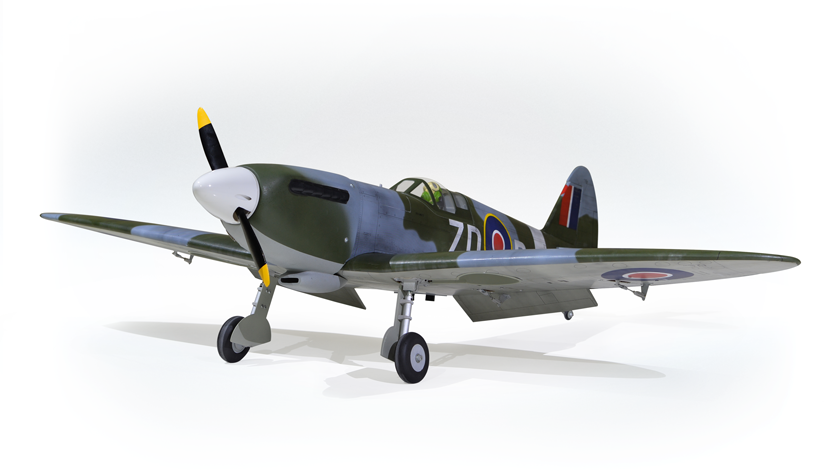

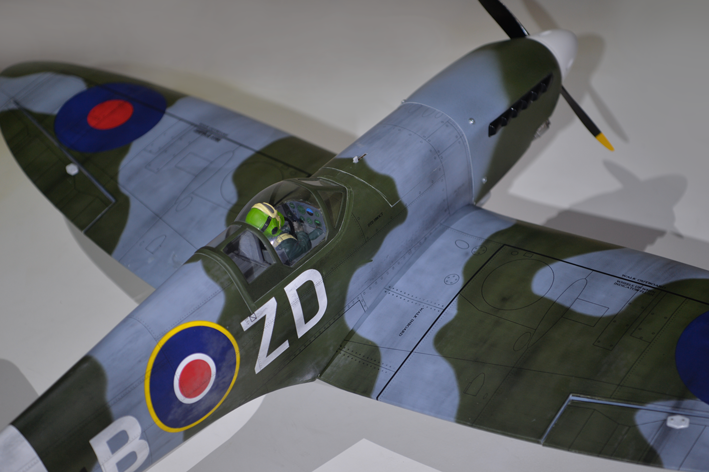

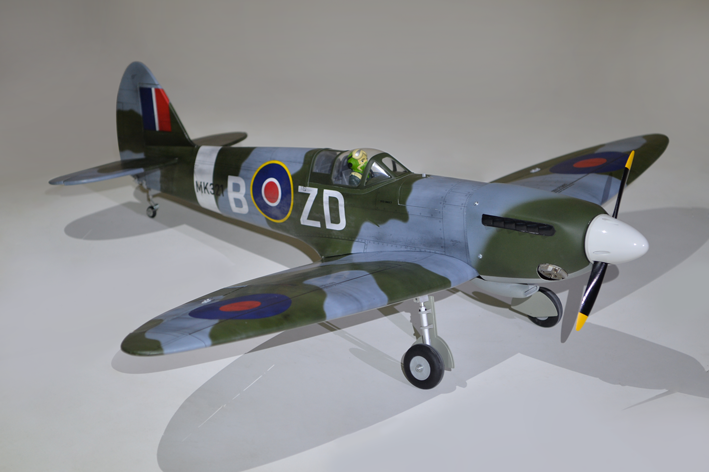

   The Spitfire is the most famous warbird and the most popular radio controlled plane. Created with the scale enthusiast in mind, this almost-ready-to-fly airplane replicates the scale outline of its full-scale counterpart with accuracy. the Spitfire is packed with scale details. Including Retract landing gear and all the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system, and fly

PH225 Spitfire 1.4m Download Manual

Technical data

Wingspan: 1400mm (55 in)
Length: 1240mm (48.8 in)
Flying weight: 3200-3300 g
Wing area: 32 dm2
Wing loading: 100 g/dm2
Wing type: Naca airfoils

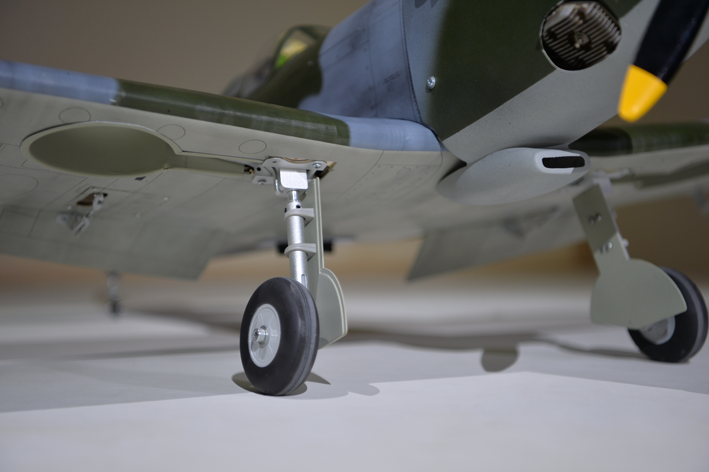

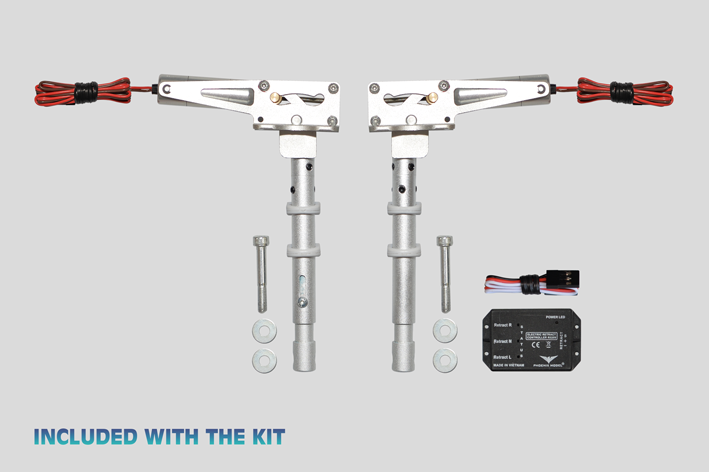

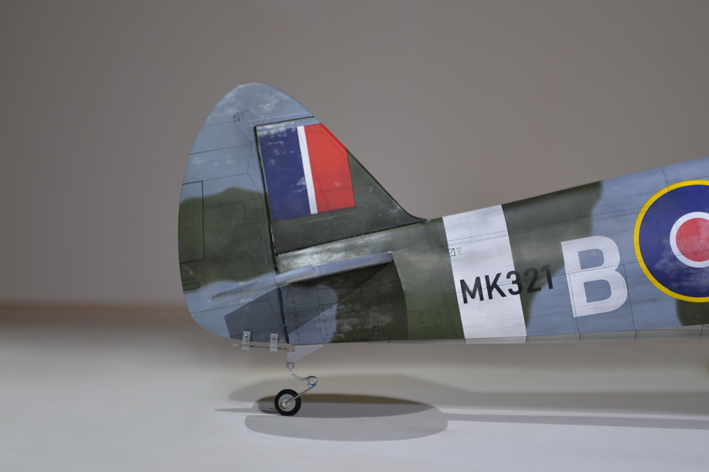

Gear type: Electric Retract Gear With CNC Suspension Metal Struts, Electric Controller Box and Spring tail gear (included)
Spinner size: 80mm  (included)
Radio: 6 channel minimum (not included)
Servo: 7 servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
Servo mount: 16mm x 33.5 mm
Propeller: suit with your engine
Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
Experience level: Intermediate
Plane type: Scale Military

RECOMMENDED MOTOR AND BATTERY SET UP

Motor: RIMFIRE .46-.55 (not included)
Lipo cell: 6 cells / 4000 – 5500mAh (not included)
Esc: 50-80A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Removable top-hatch for easy change lipo battery and set up radio
- Scale outline is enhanced by the lightweight fiberglass cowl
- Retract gear With CNC Suspension Metal Struts included

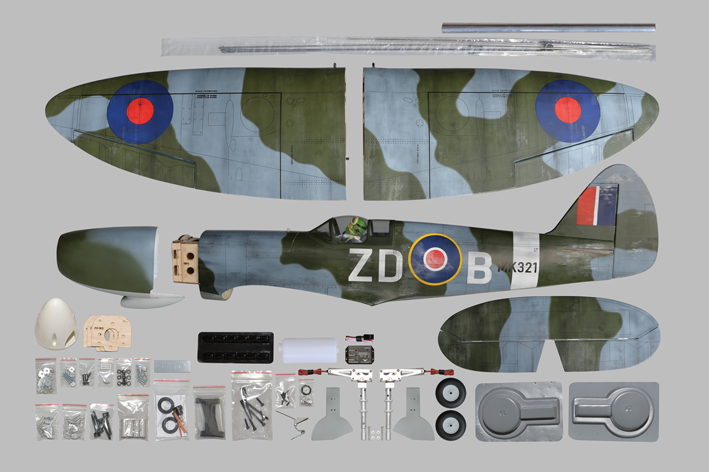

- High-quality hardware package included
