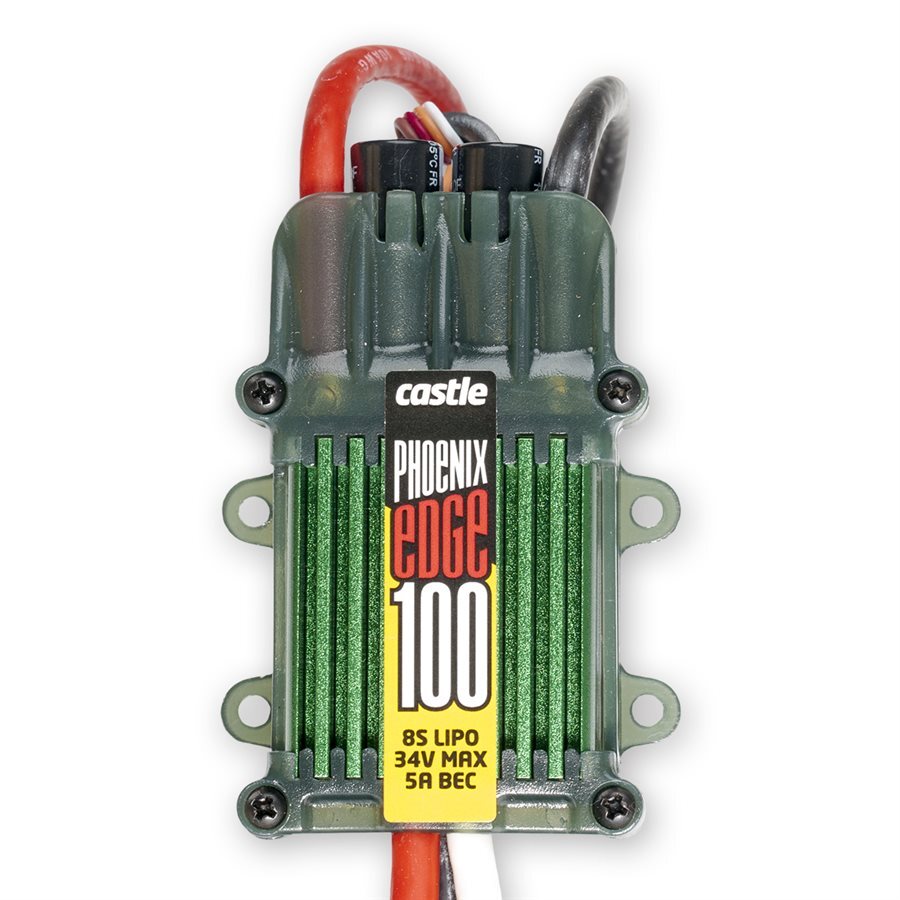

Phoenix Edge 100 Amp ESC, 8s / 33.6v with 5 Amp BEC
SKU code: CSE010010000
More infoMake 4 interest-free payments of $64.75 fortnightly and receive your order now.
Features
- User programmable auxiliary wire
- Max continuous amperage of 100 at full throttle
- Ideal for 500-, 550- and 600-class RC helis
- Also suitable for .40-.90 fixed wing RC planes
With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility. The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle LinkUSB adapter (free with included coupon).
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 2S LiPo MAX: 8S LiPo |
| Max Continuous Amperage at full throttle: | 100A* continuous amperage capability |
| Max Voltage: | 33.6V |
| BEC Voltage: | User selectable choice from 5 to 8.4 volt output |
| BEC Output: | 5 amp peak ** |
| Size: | Width: 2.0" (50.8mm) Length: 2.8" (71.9mm) Depth: 0.9" (23.2mm) |
| Weight (w/wires): | 4.5 oz. (126.6g) 2.6 oz. (72.9g) without wires |
| Application Guidelines: | 500, 550, or 600 class helicopters and .40 - .90 fixed wing |
| Items Needed for Operation: | Battery and motor connector required; Battery: Castle 6.5mm polarized connector, Motor: 5.5mm bullet connector (or compatible connectors pre-installed on the motor) |
| Product Use Statements: | For 500, 550, or 600 class heli applications, use external BEC or RX/servo power source (not included). Always perform a range check at full, half and zero throttle before flying any new speed controller. For helicopters, range check with the blades off the helicopter at full, half and zero throttle. |
| Tech Notes: | Note to users with a Futaba Transmitter: You must reverse the throttle channel signal on your transmitter. Please refer to your Futaba instructions. |
| SKU | CSE010010000 |
| Barcode # | 0819326010026 |
| Brand | Castle Creations |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.060m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000720000m3 |
